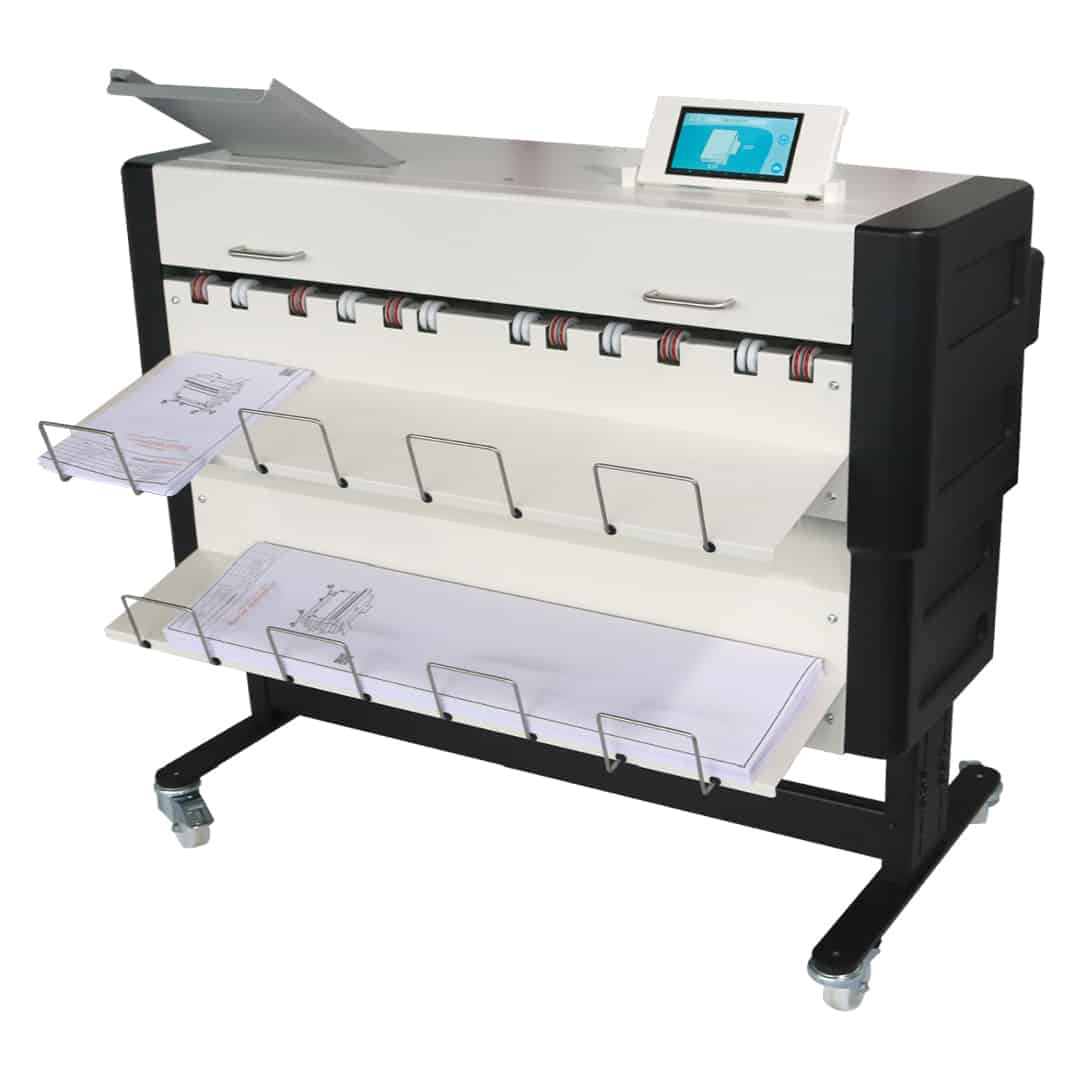

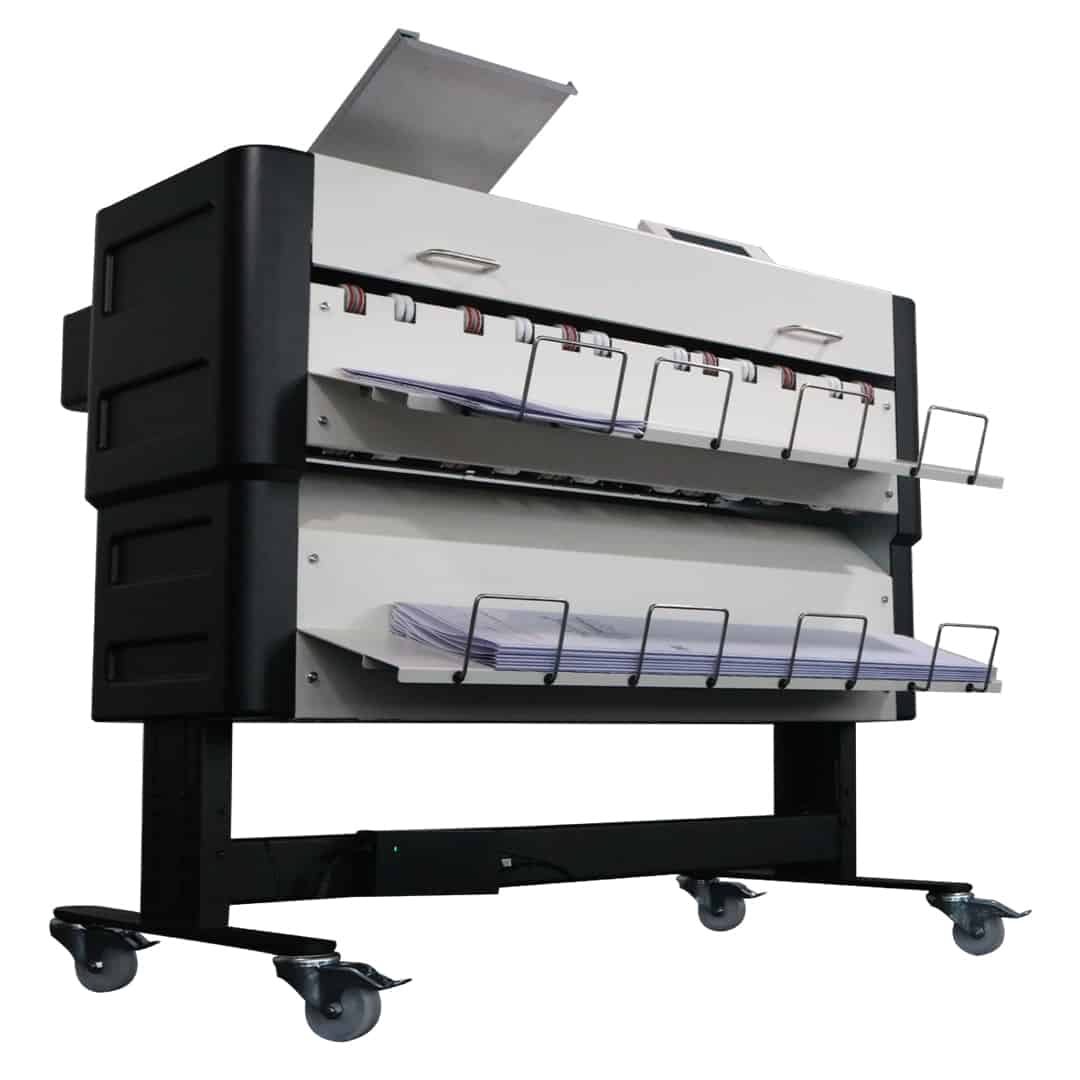

Specifications – KIPFold 1700
See below the specifications for the KIPFold 1700, learn more about this product in the brochure.
| Features |
|---|
| Compact, Single Pass, Fold Roller Technology with Printer Decoupling Design (Bridgeless) |
| Fully Integrated, One-Step Fold Packet Selection from KIP System Touch Panel (Copy/Print), KIP ImagePro, KIP PrintPro.NET, KIP Windows & AutoCAD HDI Drivers |
| Ultra Quiet Operation |
| Unfolded prints stack on front stacking print tray |
| International fold packet standards |
| KIPFold | |
|---|---|
| COMPATIBLE BLACK & WHITE PRINT SYSTEMS | KIP 71 Series, KIP 75 Series, KIP 79 Series |
| COMPATIBLE COLOR PRINT SYSTEMS | KIP 800 Series (2 or 4 roll) |
| FOLD TECHNOLOGY | Microprocessor Controlled Fold Rollers with Color Touch Screen |
| PAPER FEED | Automatic for Fanfold & Manual for Crossfold |
| MEDIA WIDTH | 11” – 36” / 279 – 914 mm |
| MEDIA LENGTH* | 17” – 20′ / 420 mm – 6 m |
| MEDIA TYPES | Bond / Plain Paper |
| MEDIA WEIGHT | 20 – 24 lb / 75 – 90 gsm |
| FOLD TYPES | DIN, ANSI or ARCH packet sizes |
| TOTAL FOLD PROGRAMS | Up to 255 |
| FAN FOLD PANEL SIZES | 6.7” – 9” / 170 – 230 mm (adjustable) |
| FAN FOLD MARGINS | 0” – 1.5” / 0 – 40 mm |
| CROSS FOLD PANEL SIZES | 10” – 12” / 250 – 320 mm (adjustable) |
| FAN FOLD STACKING | Up to 10 |
| CROSS FOLD STACKING | Up to 5 (E / A0 Packets) |
| FLAT STACKING | The integrated front stacking print tray on the printer is used for flat stacking (fully integrated and automatically selected) |
| Environmental | |
|---|---|
| ELECTRICAL REQUIREMENTS | 100 – 120 Vac; 50/60 Hz; 10 A 200 – 240 Vac; 50/60 Hz; 10 A |
| POWER CONSUMPTION | Standby 45 W, Maximum 90 W |
| WEIGHT | 287 lb. / 130 kg |
| WEIGHT – WITH PALLET | 397 lb. / 180 kg |
| DIMENSIONS (W X H X D) | 4.3′ x 3.3′ x 3.0′ / 1310 x 1010 x 914 mm |
| MINIMUM DISTANCE FROM WALL | Rear 36” / 914 mm Left 24” / 610 mm Right 24” / 610 mm |
| TOTAL SPACE (W X D) | 2530 x 2310 mm / 73” x 91” |
| TEMPERATURE | See Printer Requirements |
| HUMIDITY | See Printer Requirements |
*Maximum fanfold panels with 20#/75gsm paper = 29
*Maximum page size for cross fold function with 20#/75gsm paper = E / A0
