Specifications – KIP 980
Learn more about the KIP 980 large format printer.

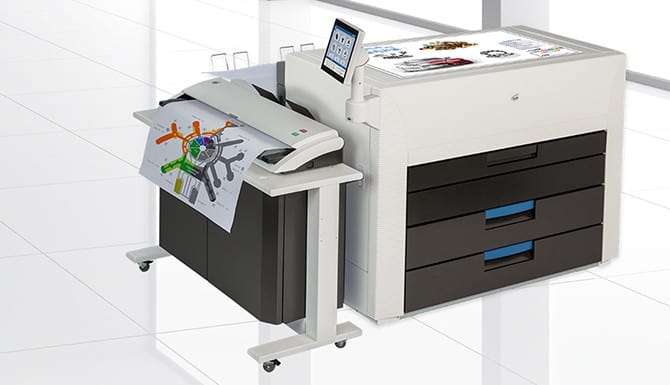

| 2/4 ROLL COLOR AND BLACK & WHITE PRINTER | Color and black & white printer with intelligent KIP System K touchscreen |
|---|---|

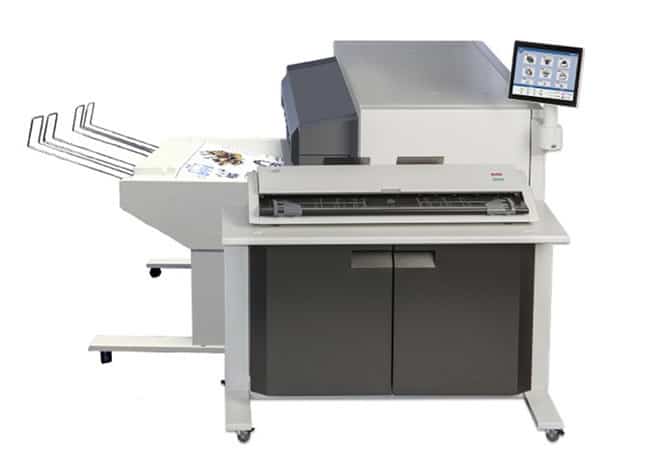

| 2/4 ROLL COLOR AND BLACK & WHITE PRINT/COPY/STF | Color and black & white printer with intelligent KIP System K touchscreen for Print/Copy and STF functions |
| SYSTEM SCANNERS | KIP 720 CIS Scanner |
| STACKING SYSTEMS (STANDARD) | KIP 900 Stacker |
| FINISHING SYSTEMS (OPTIONAL) | KIPFold 2800 |
| TYPE | LED Array Electro photography with organic photoconductor (OPC drum) Contact Development using non magnetic mono-component toner |
| CONFIGURATIONS | Printer or multi-function system (print/copy/scan) |
| SPEED | Up to 7,200 sq. ft (670 m2) in single pass black or 5,760 sq. ft. (535 m2) per hour in color regardless of image type or print resolution |
| PRINT PRODUCTION | 20 D size prints per minute in black & white, 16 D size prints per minute in color |
| WARM UP TIME | Instant from standby, less than 4 minutes from power on |
| TONER | Four color (CMYK), dry toner, print images are UV resistant and waterproof |
| INPUT POWER | 2x 208-240VAC +6%/-10% 50/60Hz, 16 A |
| POWER CONSUMPTION | Printing 2.4 kWh (Average), Ready 630 W (Average), Sleep Mode 3.4 W |
| ACOUSTIC NOISE | < 65 db (printing), < 60 db (standby) (ISO 7779) |
| OZONE | < 0.05 ppm (average of 8 hours) |
| DIMENSIONS | 78” x 43” x 48” / 1970 x 1080 x 1220 mm (W x D x H) |
| WEIGHT | 1,212 lbs / 550 kgs |
| Printer | |
|---|---|
| PRINT RESOLUTION | 600 x 1,800 dpi |
| PAPER CAPACITY | 7,800 sq ft / 724 sq m ( 4 rolls + cut sheet ) |
| OUTPUT SIZES WIDTH (ROLL MEDIA) | 11” – 36” / 297 mm – 914 mm (3” Core) |
| OUTPUT SIZES LENGTH (ROLL MEDIA) | 8.5” / 210 mm minimum, 210′ / 64 m maximum (actual length may be dependent on media type and file type limitations) |
| PAPER WEIGHT (ROLL MEDIA) | Bond: 18 – 40 lb / 67 – 150 gsm, Film: 3 – 4 mil Double Matte Polyester, Tracing: 18 – 20 lb / 67 – 75 gsm Banner and Gloss: see KIP 800 Media Guide |
| SHEET BYPASS | Up to 40 lbs. / 150 gsm bond | Maximum sheet size 36”/ 914 mm x manageable length | Minimum sheet size 11” x 17” / A3 |
| MEDIA TYPES | See KIP Media Guide |
| Scanner/Copier | |
|---|---|
| RESOLUTION | 600 dpi (optical) |
| ORIGINAL | Single Sheet, image viewable/face up |
| WIDTHS | 8.5” – 36” / 210 mm – 914 mm (international standard page sizes to include ANSI, ARCH, ISO A & B, CHN, JPN) |
| LENGTH | 8.5” – 19.7′ / 210 mm – 6 m |
| Controller | |
|---|---|
| CONTROLLER TYPE | System K Embedded, Windows Standard Embedded 10 – 64 bit, i7 Quad Cord (min) |
| MEMORY | 16 GB (min) |
| SOLID STATE DRIVE | Minimum 256 GB (Upgradable) |
| COMPATIBLE FILE FORMATS | Raster Color: TIFF, JPG, JPG2000, PNG, BMP, GIF, TGA, RLE/RLC |
| Vector Color/B&W: HPGL, HPGL/2, HP-RTL, Postscript (PS/EPS), PDF, Autodesk DWF, Multipage PDF & DWF | |
| Raster B&W: TIFF Group 3 & 4, CALS Group 4, Grayscale TIFF | |
| Vector B&W: Calcomp 906/907 | |
| Space, Electrical & Environmental Requirements | |
|---|---|
| TOTAL SPACE (MINIMUM) | 132” x 182” / 3350 mm x 4610 mm ( W x D ) |
| ELECTRICAL REQUIREMENTS | 208-240VAC +6%/-10% 50/60Hz, 16 A, plus one 110 V – 120 V 50/60 Hz, 6 A or higher (for KIP scanner) |
| ELECTRICAL RECEPTACLE | Dual 208 V – 240 V 50/60 Hz, 16 A |
| NETWORK PORT | RJ-45 port-CAT5 or higher. LAN rated at least at 100 mb. Recommended is 1000 mb |
| ROOM TEMPERATURE | 50-86°F / 10-30°C |
| HUMIDITY | 15-80% RH |
| MIN. DOOR WIDTH | 32” / 813 mm |
