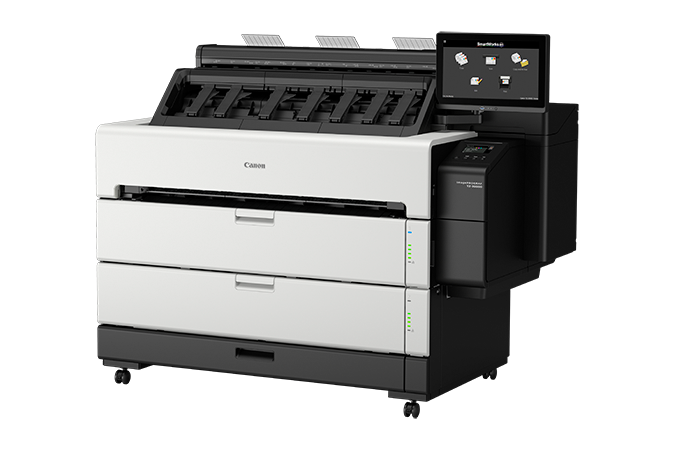

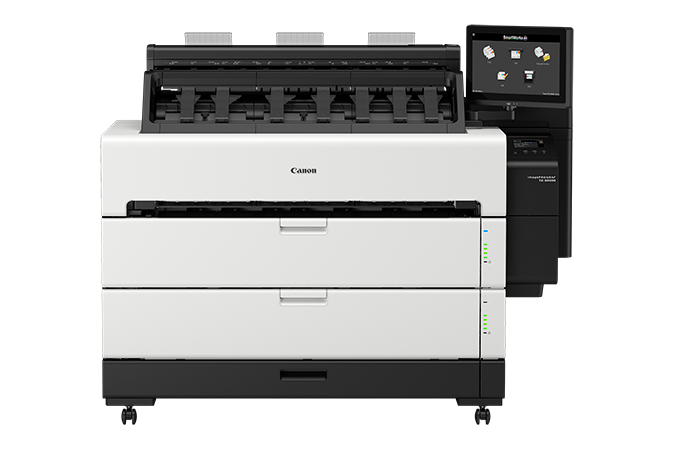

The Canon imagePROGRAF TZ 30000 is a 5-color, 36-inch aqueous inkjet Scan-To-Copy/File/Share production system for the low-end LED and high-end inkjet markets, with great productivity and efficiency. With up to 4-D size prints per minute, the TZ-30000 MFP Z36 has the quickest printing speed of any imagePROGRAF printer to date. Twin carriage motors, an integrated top stacker with an air flow system, and a dual roll media system with intelligent media handling are just a few of the “Canon First” technology included in. This MFP comes with a production CAD printer, a Z36 scanner, and an easy-to-use system controller, making it a valuable addition to Canon’s large-format printer lineup. It’s ideal for scanning maps, drawings, and renderings.
The TZ-30000 MFP Z36 was designed with production needs, efficiency, and adaptability in mind, with an all-new straightforward GUI design for the System Controller.
The imagePROGRAF TZ-30000 MFP Z36 is a powerful production CAD system that includes:
| Printer Type | 5-Color 36-inch Printer |
|---|---|
| Number of Nozzles | Total: 15,360 |
| MBK: 5,120 nozzles | |
| C, M, Y, BK: 2,560 nozzles each | |
| Nozzle Pitch | 1200 dpi |
| Non-firing nozzle detection and compensation | |
| Print Resolution (Up to) | Print Resolution (Up to): 2400x1200dpi (Max) |
| OS Compatibility | Windows® 7, 8.1, 10 (32/64bit) |
| Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit) | |
| MacOS 10.12.6 and later | |
| Standard Interfaces | USB 2.0 High-Speed |
| 10/100/1000 Base-T/TX | |
| Ink Droplet Size | 5 picoliter |
| Ink Capacity | 330ml or 700ml per color |
| Ink Droplet Size | Pigment Ink |
| Color Set | Matte Black, Black, Cyan, Magenta, Yellow |
| Buffer Ram | 128 GB (Virtual) 2 GB (Physical) |
| Hard Drive | 500 GB |
| Media Width | Cut Sheet – 8” – 36” |
| Roll Feed – 8” – 36” | |
| Media Thickness | 0.07-0.8mm (2.8-31.4mil) |
| Maximum Roll Print Length | Roll Feed – 59′ (18 meters) |
| Maximum Media Roll Diameter | 6.9” (175m) |
| Borderless Printing Width | All sizes |
| Paper Feed Method | Roll Feed: Two Roll, Front-loading |
| Cut Sheet: Front-loading | |
| Languages | SGRaster, HPGL/2, HP-RTL, PDF, JPEG |
| Noise Level Approx | Operation: 52 dB (A) or less |
| Standby: 35 dB (A) or less | |
| Acoustic Power: 7.0 Bels or less | |
| Physical Dimensions | 47” x 61” x 38” (Main Unit + Paper output support + Top output guide) |
| Weight | approx. 456 lbs |
| Power Source | AC-100-240V (50-60Hz) |
| Power Consumption | Maximum: 157W or less |
| Standby 2.0W or less | |
| Power Off: 0.3W or less (Compliant with Executive Order) | |
| Operating Environment | Temperature: 59°-86° F (15°-30° C) |
| Relative Humidity: 10-80% (No Condensation) | |
| User-replaceable items | Print Head (PF-06)Maintenance Cartridge (MC-30)Ink Tanks (PFI-340/PFI-740) |
| Software Available | Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, Canon Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select |
