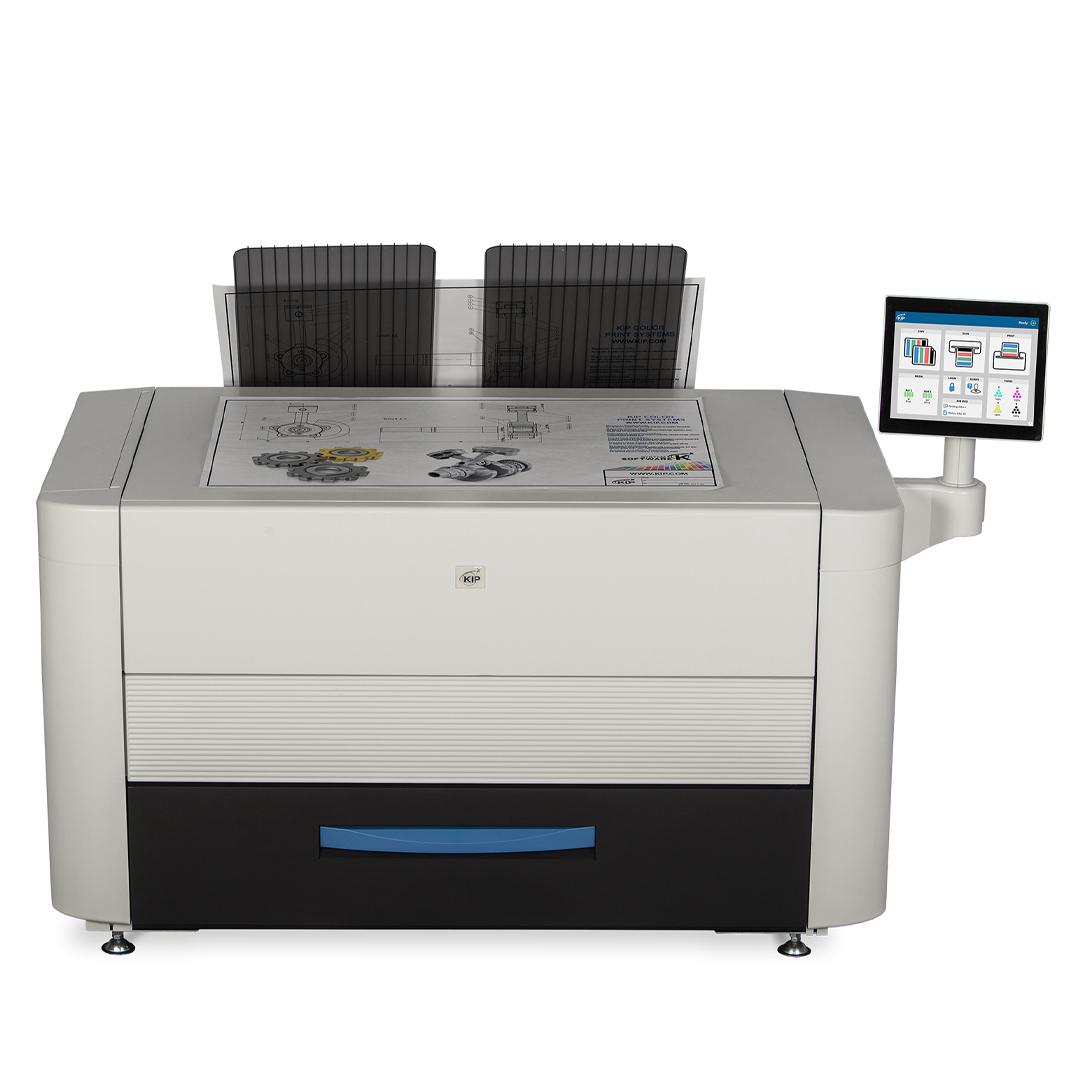

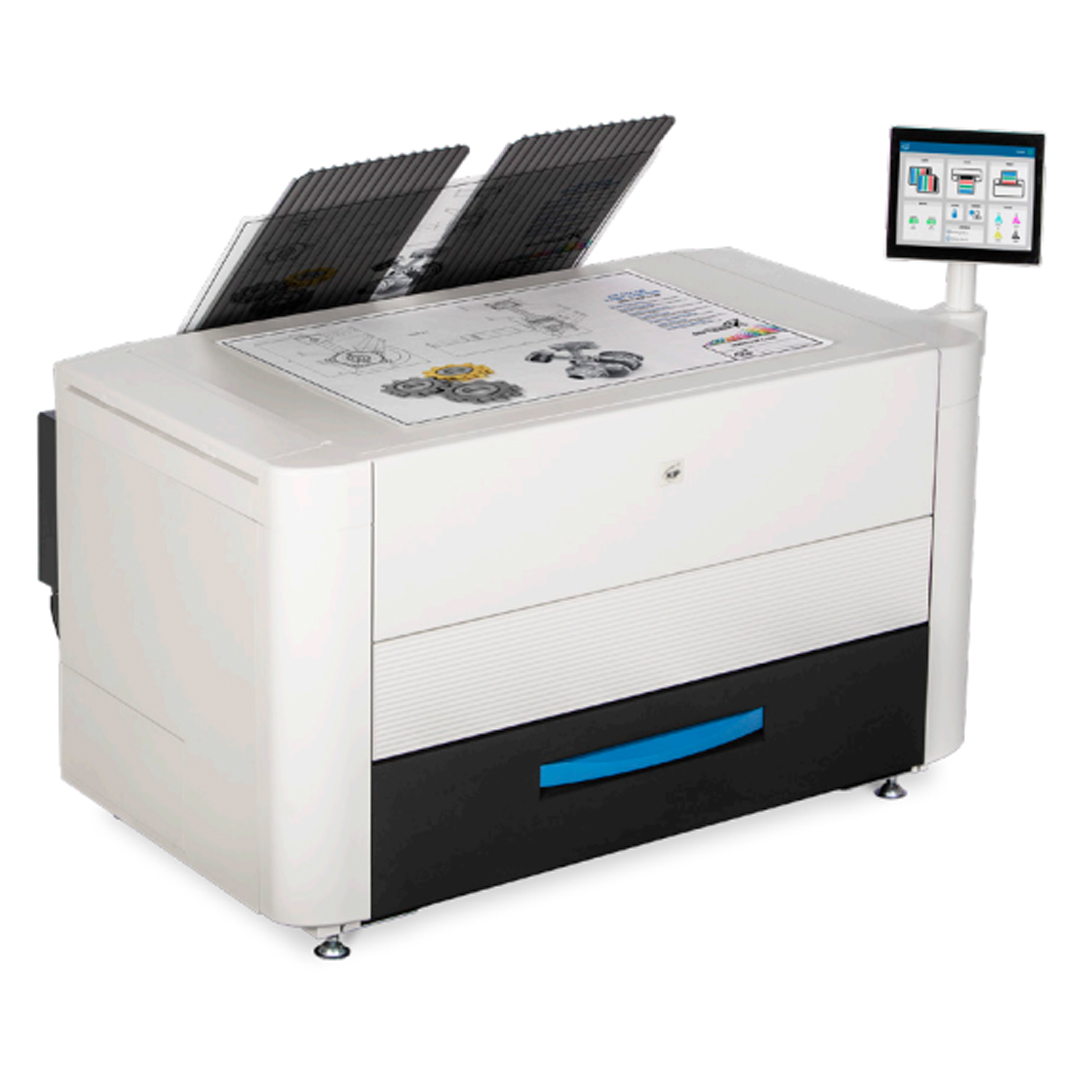

Specifications – KIP 650
See below the specifications for the KIP 650, learn more about this product in the brochure.
| General | |
|---|---|
| DESCRIPTION | Color wide format printer |
| TYPE | Electrophotography (LED) with organic photoconductor (OPC) and dry toner system |
| RANGE OF PRODUCTIVITY | 6 D per minute / 360 prints per hour |
| WARMUP TIME | Instant from standby |
| ROLLS | 2 Roll |
| DIMENSIONS | 59” (w) x 42” (d) x 36” (h) / 1,500 mm x 1,040 mm x 903 mm |
| WEIGHT | 715 lb. / 325 kg |
| ELECTRICAL REQUIREMENTS | 208V-240V +6% -10%, 50/60Hz, 14A |
| POWER CONSUMPTION (STANDBY) | 430W |
| POWER CONSUMPTION (PRINTING) | < 1,500W |
| POWER CONSUMPTION (SLEEP) | 3W |
| Printer | |
|---|---|
| PRINT RESOLUTION | 600 dpi x 2400 dpi |
| OUTPUT DELIVERY | Top (Front) up to 100 documents based on page size & media type |
| ROLL CAPACITY | 500′ Rolls (x2) |
| OUTPUT SIZES WIDTH | 11″ – 36″ |
| OUTPUT SIZED LENGTH | 19.7′ / 6 m (extendable to 82′ / 25 m based on media type) |
| MEDIA WEIGHTS & TYPES | See KIP Media Guide |
| Controller | |
|---|---|
| CONTROLLER TYPE | KIP System K Controller |
| MEMORY | 4GB DDR4 Standard (Upgradable) |
| SOLID STATE DRIVE | Minimum 256 GB (Upgradable) |
| SUPPORTED FILE TYPE | DWF, PDF, PDF-A, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, CIT/TG4, Grayscale TIFF, TIFF Packbits, PNG, JPEG |
| Scanner | |
|---|---|
| SCANNER TYPE | CIS |
| SCAN RESOLUTION | 600 dpi |
| SCAN FORMAT | TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, JPEG |
| SCAN DESTINATION | Local USB (removable media), Mailboxes (local), FTP, SMB |
| Cloud:Google Drive/Dropbox/Box/OneDrive/SharePoint | |
| ORIGINAL SIZE WIDTH | 11″ – 36″ / 210 mm to 914 mm |
| ORIGINAL THICKNESS | 0.05 mm – 1.60 mm (image quality over 0.25 mm not guaranteed) |
