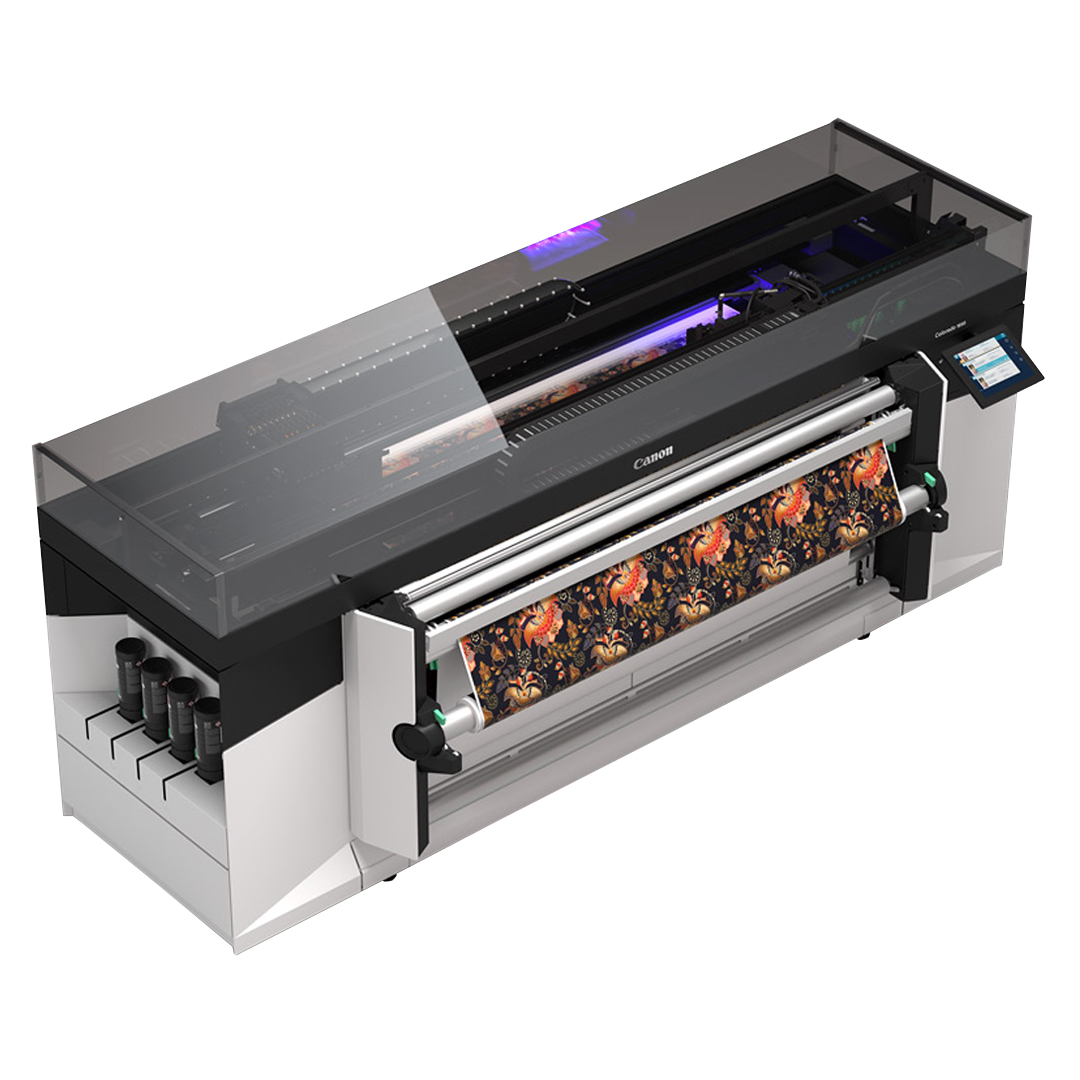

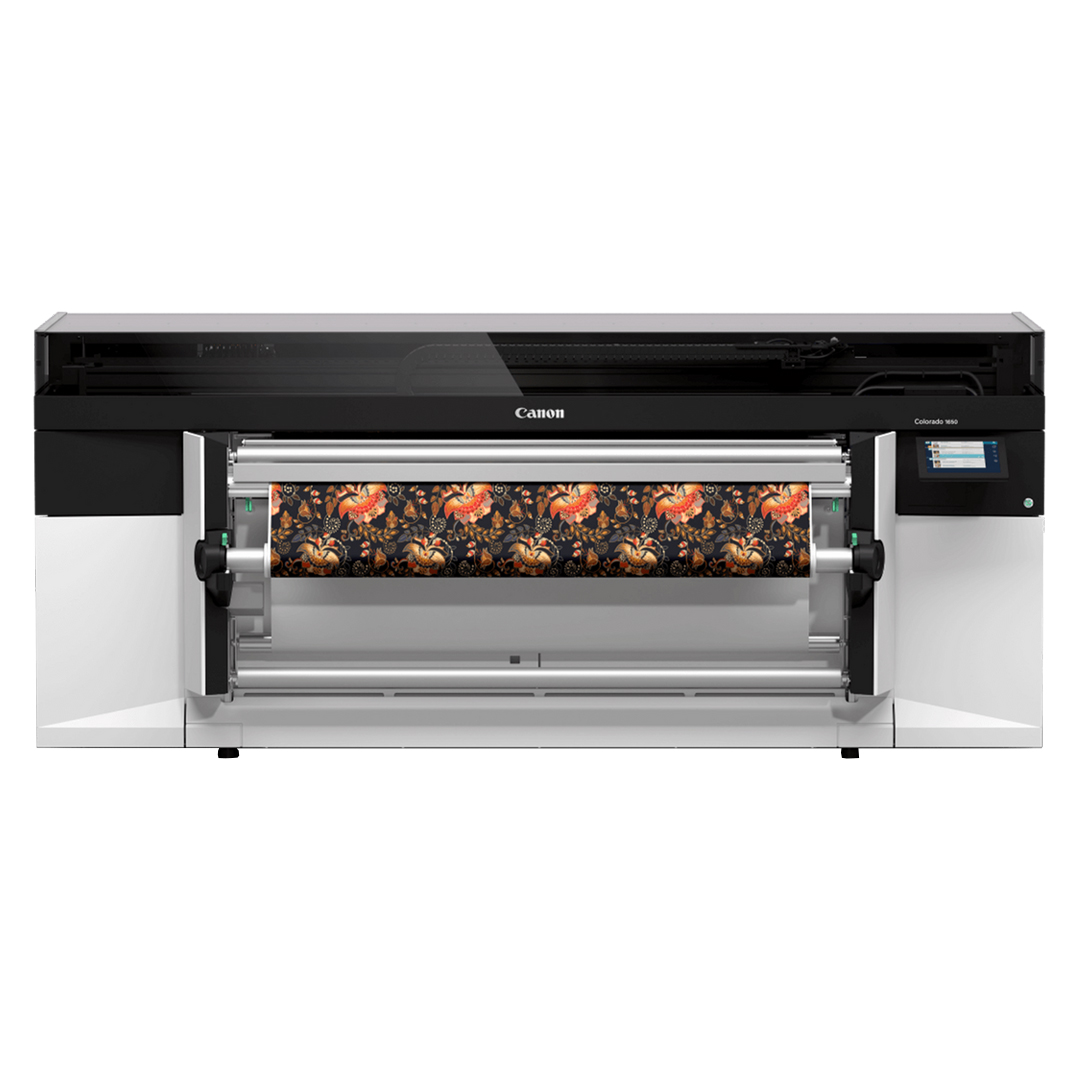

Specifications – Canon Colorado 1650 Wide Format Printer
For more information on the Canon Colorado 1650 Wide Format Printer, view the brochure.
| PRINTING | |
|---|---|
| PRINTING METHOD | Canon UVgel piezoelectric inkjet |
| GLOSS PRINTING MODES | Max speed: 1,709 ft.2/hr. (159 m2/hr.) |
| High speed: 1,229 ft.2 /hr. (114 m2/hr.) | |
| Speed: 861 ft.2 /hr. (80 m2/hr.) | |
| Production: 610 ft.2/hr. (57 m2/hr.) | |
| High quality: 427 ft.2/hr. (40 m2/hr.) | |
| Superior: 290 ft.2/hr. (27 m2/hr.) | |
| Specialty: 222 ft.2/hr. (21 m2/hr.) | |
| MATTE PRINTING MODES | High speed: 495 ft.2 /hr. (46 m2/hr.) |
| Speed: 409 ft.2 /hr. (38 m2/hr.) | |
| Production: 333 ft.2/hr. (31 m2/hr.) | |
| Quality: 290 ft.2/hr. (27 m2/hr.) | |
| Specialty: 215 ft.2/hr. (20 m2/hr.) | |
| Backlit: 215 ft.2/hr. (20 m2/hr.) | |
| Backlit density: 107 ft.2/hr. (10 m2/hr.) | |
| PRINT RESOLUTION | The Colorado 1650 Wide Format Printer can have a print resolution of up to 1,800 dpi |
| INK TYPES | Canon UVgel 460 ink, CMYK (1-liter bottles) |
| INK COLOR | CMYK |
| INK PACKAGING | 2 x 1-liter ink bottle Ink reservoir can accommodate up to 2.5 liters per ink color |
| PRINTHEADS | Canon UVgel 415 printheads (two per color) |
| AUTOMATIC MAINTENANCE | PAINT constantly monitors and compensates for nozzle failures that can occur during printing Automatic maintenance performed in seconds, daily Refill ink while printing |
| CURING | UV LED with FLXfinish, instant dry, low temperature |
| MEDIA | |
|---|---|
| ROLL WIDTH | Up to 64″ (1,625 mm) |
| PRINT MARGIN | 0.21″ (5.3 mm) |
| ROLL WEIGHT | Up to 110 lb. (50 kg) |
| ROLL DIAMETER | Up to 8.7″ (220 mm) |
| MEDIA THICKNESS | Up to 0.03″ (0.8 mm) |
| NUMBER OF INPUT ROLLS | 2 rolls in PSO mode / 1 roll in PSI mode Automatic roll feeding and switching |
| INPUT ROLL FEEDING | Compatible with rolls that are PSO or PSI Double-sided printing, leading-edge support for flexible media |
| TECHNOLOGIES | |
|---|---|
| CANON UVGEL TECHNOLOGY | Instant pinning and dot gain control |
| Low-temperature curing, suitable for thin and heat-sensitive media | |
| High-precision color matching and consistency | |
| Instantly dry | |
| CANON FLXFINISH TECHNOLOGY | Gives you the choice between gloss or matte output on both smooth and structured media Enables you to print on porous and uncoated materials |
| SIZE AND WEIGHT | |
|---|---|
| PRINTER DIMENSIONS (W x D x H) | 119″ x 43″ x 52″ (3,022 x 1,093 x 1,300 mm) |
| PRINTER WEIGHT | 1,631 lb. (740 kg) |
| SOFTWARE | |
|---|---|
| SUPPORTED RIPS | ONYX® Thrive™, Caldera, and API for third-party RIP vendors |
