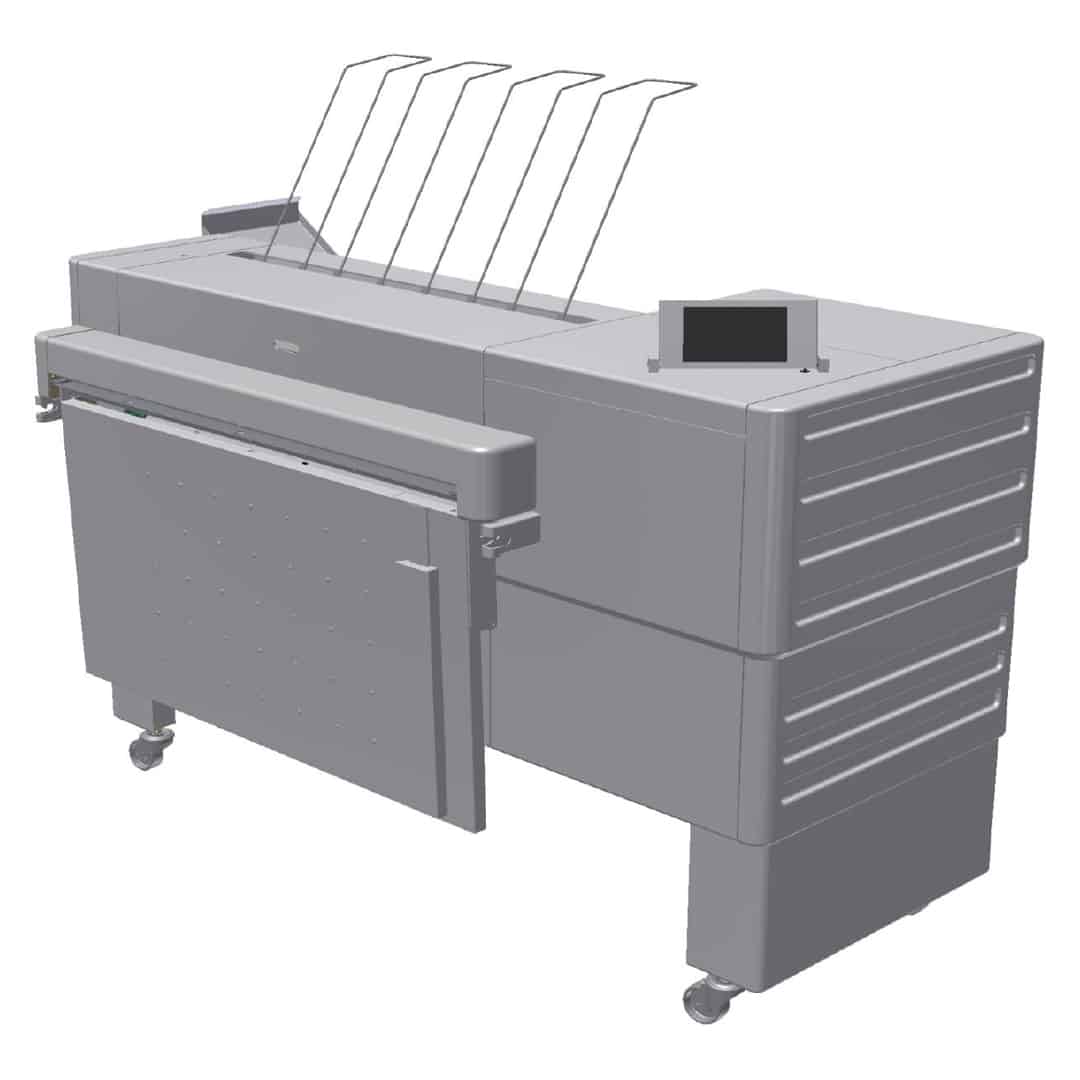

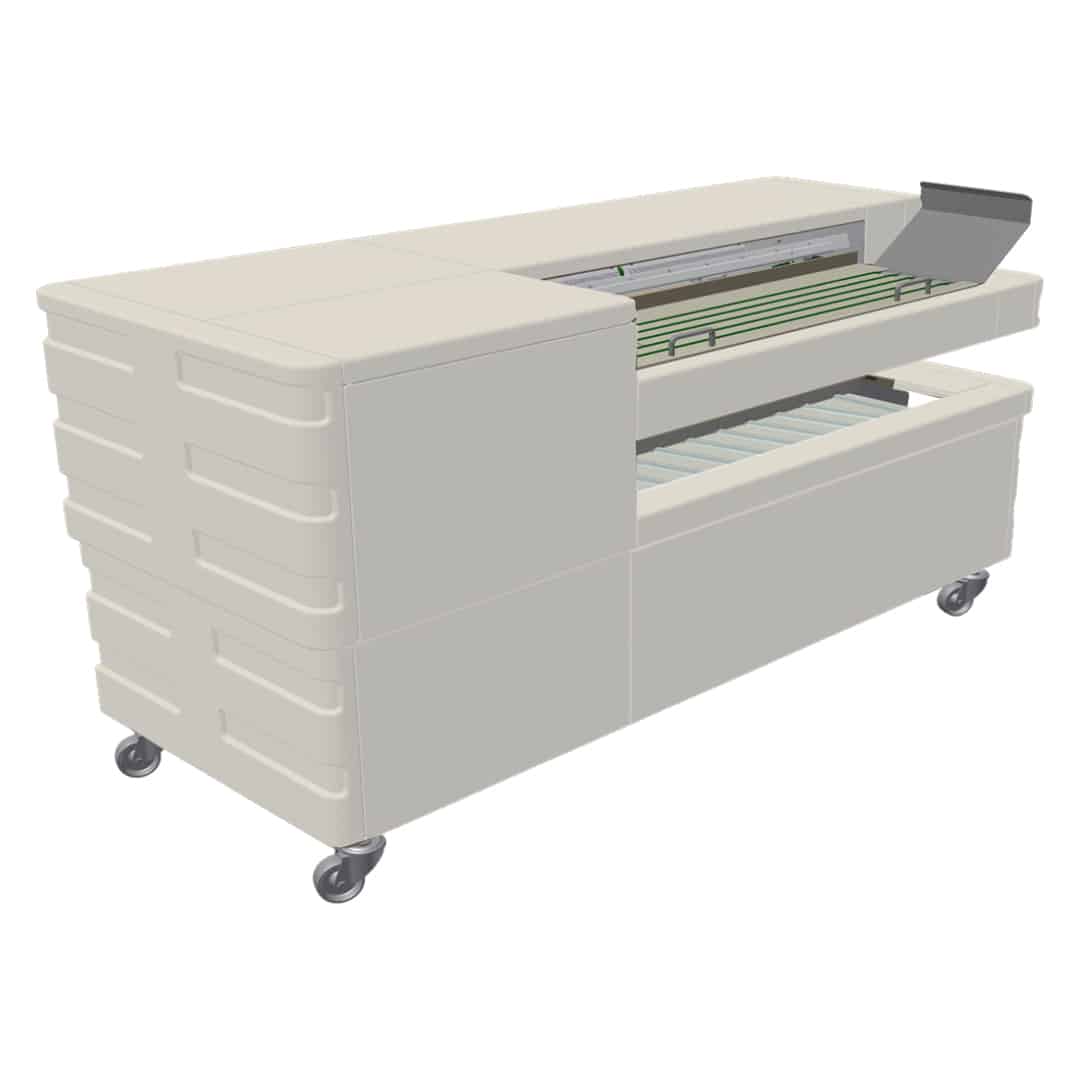

Specifications – KIPFold 1800
See below the specifications for the KIPFold 1800, learn more about this product in the brochure.
| Features | |
|---|---|
| Compact, Single Pass, Fold Roller Technology with Printer Decoupling Design (Bridgeless) | |
| Fully Integrated, One-Step Fold Packet Selection from KIP System Touch Panel (Copy/Print), KIP ImagePro, KIP PrintPro.NET, KIP Windows & AutoCAD HDI Drivers | |
| Fold Packet Standards “Pre-Set” in the KIP Print Management Suite | |
| Varity of Fold Packets using Portrait Feeding to create Portrait Packets | |
| Manual Feed: Optional | |
| Bi-directional Notification – through the System Touch Panel as well as KIP Software | |
| KIPFold | |
|---|---|
| COMPATIBLE BLACK & WHITE PRINT SYSTEMS | KIP 71 Series, KIP 75 Series, KIP 79 Series |
| COMPATIBLE COLOR PRINT SYSTEMS | KIP 800 Series (2 or 4 roll) |
| FOLD TECHNOLOGY | Fold Roller (packet tolerances: +/- 2mm W, +/- 3mm H, +/- 1mm panel deviation) |
| MEDIA WIDTH | 11″ – 36″ / 297 mm – 920 mm using North American & International Standard Page Sizes |
| MEDIA WEIGHT | 16 – 28 lbs / 60 -110 gms (recommended 20-24 lbs / 75-80 gsm) |
| FOLD SPEED | Dependent on Printer Speed & Packet Style, noting Portrait Feed : Portrait Packet only with >300 mm inter-print gap requirement |
| FOLD STYLES | Various DIN, ARCH, ANSI, JPN_P, CHN_P: refer to packet supplement for regional details |
| FOLDED PACKET STACKING | Up to 80 A0/E or equivalent with mixed sizes |
| UNFOLDED STACKING | Up to 50 documents – placed onto the printer’s Top-Front tray (if equipped) |
| PACKET SIZE: FAN FOLD | 6.7- 9” adjustable in ¼” increments / 170 mm – 230 mm adjustable in 1 mm increments |
| PACKET SIZE: CROSS FOLD | 10 – 12″ adjustable in / 250 mm – 310 mm adjustable in 1 mm increments |
| DOCUMENT LENGTH – CROSS FOLD | 138” / 3.5m (17 Panels maximum with 20# / 80 gsm paper) |
| DOCUMENT LENGTH – FAN FOLD | 236” / 6m (22 Panels maximum with 20# / 80 gsm paper) |
| MARGINS | 0” – 1½” adjustable in 0.1″ increments / 0 mm – 40 mm adjustable in 1mm increments |
| TITLE BLOCK | Top-Right location (noted from front of printer) |
| FAN FOLD EXIT | On Left Side (from front of printer) without a tray |
| Environmental | |
|---|---|
| ELECTRICAL REQUIREMENTS | 100-120 Vac / 200-240Vac 50/60Hz 2.2A @115Vac / 1.1A @230Vac |
| ELECTRICAL RECEPTACLE | Based on local standards, shipped with a power cable for either North America or Europe |
| POWER CONSUMPTION | During Operation: < 250W Standby: < 5W |
| ACOUSTIC NOISE | 61 dB |
| WEIGHT | 610 lbs / 280 kg uncrated or 640 lbs / 290 kg crated |
| FOLDER DIMENSIONS | 70” x 34” x 37” / 1779 mm x 851 mm x 931 mm |
| CRATE DIMENSIONS | 73” x 43” x 47” / 1854 mm x 1092 mm x 1194 mm |
| Options | |
|---|---|
| FIELD UPGRADABLE | Manual Feed |
