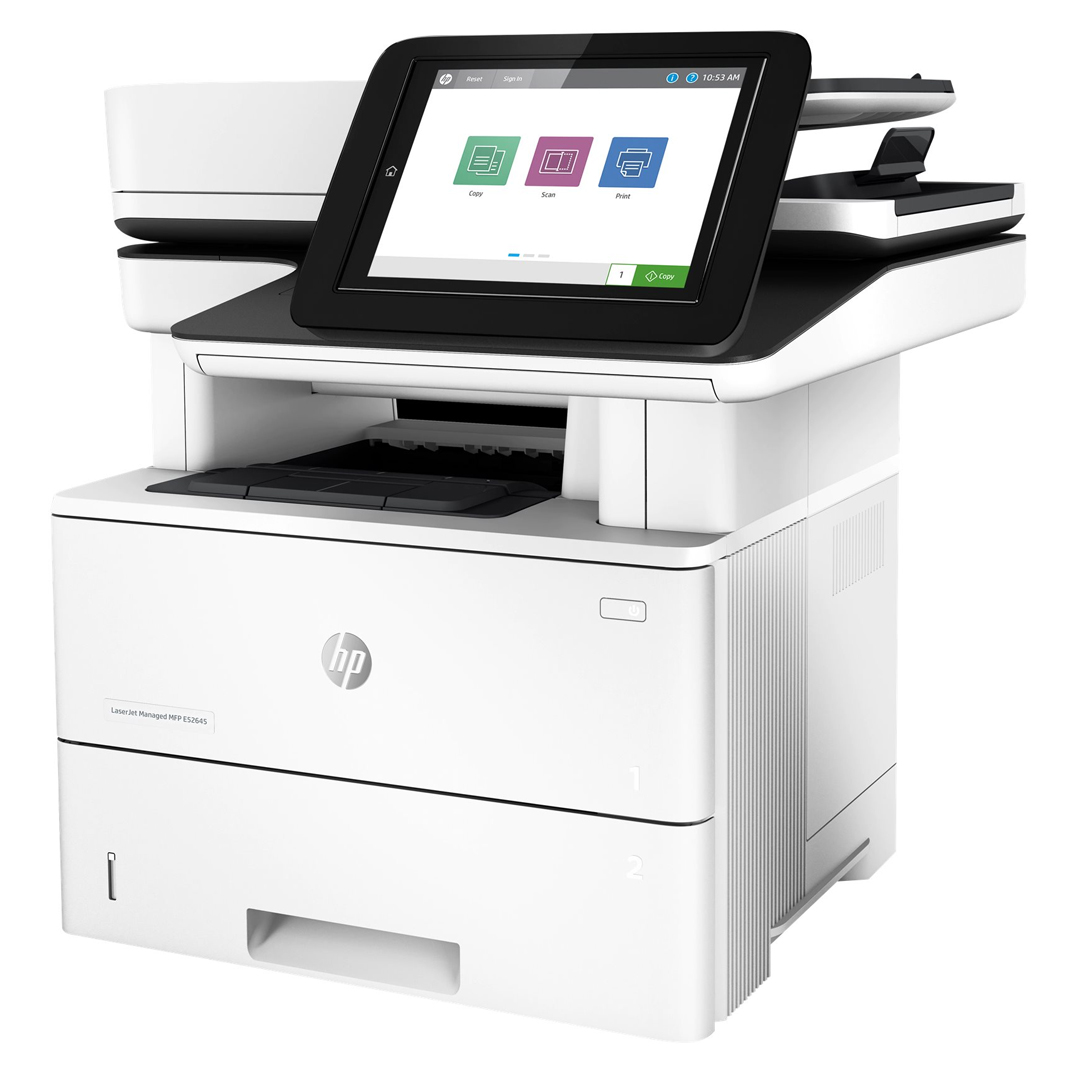

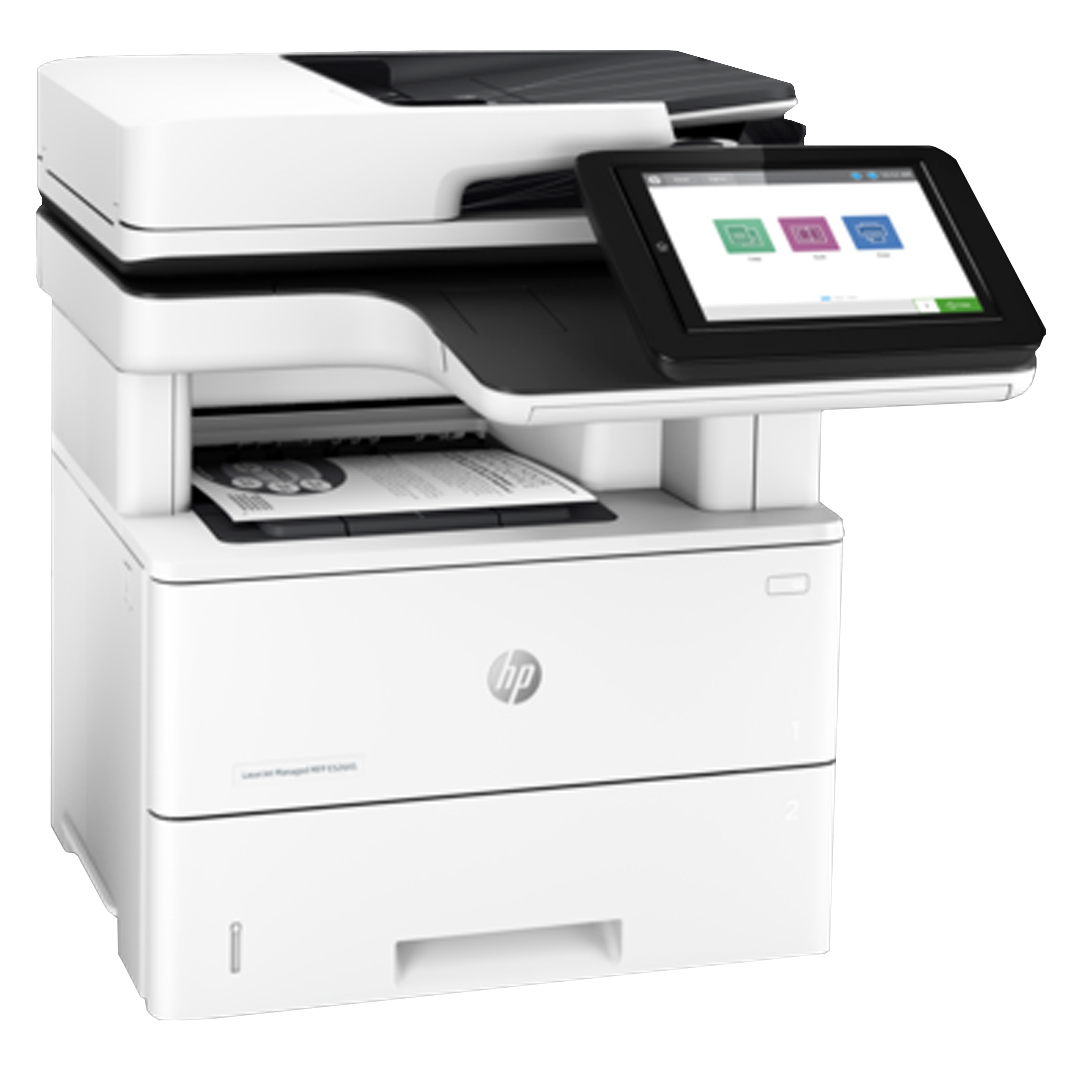

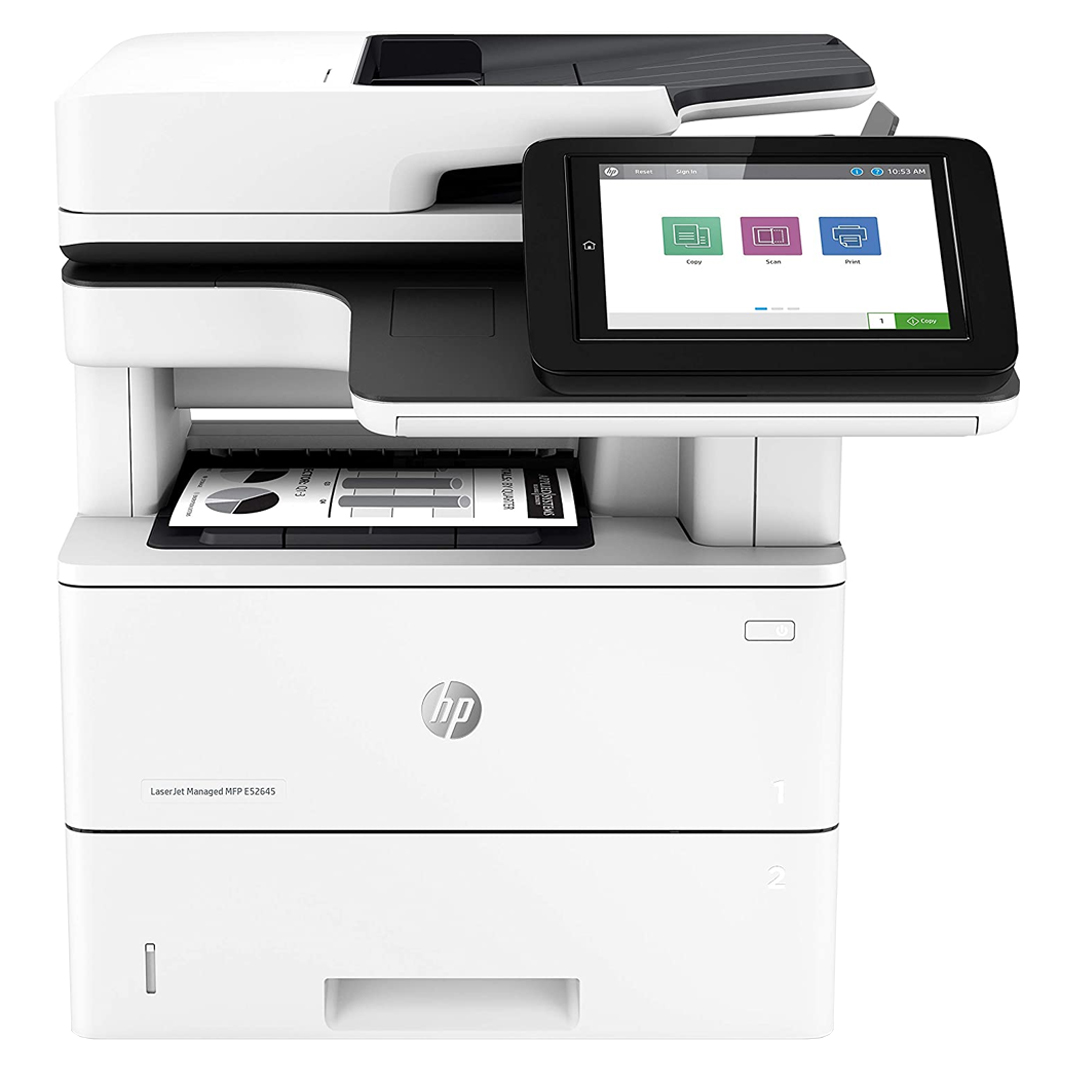

Specifications – HP LaserJet Managed E52645dn Multifunction Printer
For more information on the HP LaserJet Managed E52645dn Multifunction Printer, view the brochure.
| Model | HP LaserJet Managed MFP E52645dn | HP LaserJet Managed Flow MFP E52645c |
|---|---|---|
| Product number | 1PS54A | |
| Functions | Print, copy, scan and optional fax | |
| Duplex print options | Automatic (standard) | |
|---|---|---|
| Print speed | Black (A4, normal): Up to 43 ppm; Black (letter, normal): Up to 45 ppm; Black (A4, duplex): Up to 34 ipm; Black (letter, duplex): Up to 36 ipm | |
| First page out | Black (A4, ready): As fast as 6 sec; Black (A4, sleep): As fast as 13 sec | |
| Print resolution | Black (best) Up to 1200 x 1200 dpi; Black (normal) Up to 600 x 600 dpi; Black (fine lines) Up to 1200 x 1200 dpi | |
| Print technology | Laser | |
| Print resolution technology | 300 dpi, 600 dpi, HP FastRes 1200, HP ProRes 1200 | |
| Print cartridges number | 1 (black) | |
| Standard print languages | HP PCL 6, HP PCL 5 (HP PCL 5 driver available from the Web only), HP postscript level 3 emulation, native PDF printing (v 1.7), Apple AirPrint™ | |
| Printer management | HP Printer Assistant; HP Device Toolbox; HP Web JetAdmin Software; HP JetAdvantage Security Manager; HP SNMP Proxy Agent; HP WS Pro Proxy Agent; Printer Administrator Resource Kit for HP Universal Print Driver (Driver Configuration Utility – Driver employment Utility – Managed Printing Administrator) | |
| Scan | ||
|---|---|---|
| Scan technology | Type: Flatbed, ADF; Technology: Contact Image Sensor (CIS) | |
| Scan speed | Normal (A4): Up to 43 ppm/43 ipm (b & w), up to 38 ppm/38 ipm (color) | Normal (A4): Up to 45 ppm/64 ipm (b & w), up to 45 ppm/58 ipm (color) |
| Scan resolution | Enhanced: Up to 600 dpi; Hardware: Up to 600 x 600 dpi; Optical: Up to 600 dpi | |
| Digital sending standard features | Scan to E-mail; Save-to-Network Folder; Save-to-USB drive; Send to FTP; Send to Internet Fax; Local Address Book; SMTP over SSL; Blank Page Removal; Edge Erase; Auto Color Sense; Auto Crop To Content; Compact PDF | Scan to E-mail; Save-to-Network Folder; Save-to-USB drive; Send to Sharepoint; Send to FTP; Send to LAN Fax; Send to Internet Fax; OCR; Local Address Book; SMTP over SSL; Blank Page Removal; Edge Erase; Auto Color Sense; Auto Crop To Content; Compact PDF; Auto Tonescale; Auto Orientation; Multi-Pick Detect; Auto Straighten; Auto Crop To Page; OCR |
| Color scanning | Yes | |
| Scan size | Flatbed: 216 x 356 mm; ADF: 216 x 864 mm | |
| Scan input modes | Front panel applications: Copy, E-mail, Save to Network Folder, Save to USB, Save to Device Memory, Open Extensibility Platform (OxP) applications | |
| Scan file format | PDF, JPEG, TIFF, MTIFF, xPS, PDF/A | Digital Send: PDF, JPEG, TIFF, MTIFF, xPS, PDF/A, TExT (OCR), Unicode TExT (OCR), RTF (OCR), Searchable PDF (OCR), Searchable PDF/A (OCR), HTML (OCR), CSV (OCR); Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, xPS, PDF/A, TExT (OCR), Unicode TExT (OCR), RTF (OCR), Searchable PDF (OCR), Searchable PDF/A (OCR), HTML (OCR), CSV (OCR); Print from easy access USB: PDF, PS, Print Ready files (.prn, .pcl, .cht) |
| Copy | ||
|---|---|---|
| Copier smart software features | Auto scale; Reduce/enlarge from scanner glass (25 to 400%); Collate; Auto color detection; Two-sided copying; Image adjustments (darkness, background cleanup, sharpness); Job build | |
| First copy out | Black (A4): As fast as 6.5 sec; Black (A4, sleep): As fast as 13 sec; Black (letter): As fast as 6.5 sec; Black (letter, sleep): As fast as 13 sec | |
| Copy resolution | Color (text and graphics): Up to 600 x 600 dpi | |
| Max no of copies | Up to 9999 copies | |
| Copier resize | 25 to 400% | |
| Copier settings | Two-sided copying; scalability; image adjustments (darkness, contrast, background cleanup, sharpness); N-up; N or Z-ordering; content orientation; collation; booklet; job build; edge-to-edge job storage; ID Copy; Book Copy; A-to-B Copy (different media sizes) | |
| Fax | ||
|---|---|---|
| Fax speed | Not available | 33.6 kbps / 3 sec per page |
| Fax memory | Not available | Fax memory (A4): Up to 500 pages; Fax memory (letter): Up to 500 pages |
| Fax resolution | Not available | Black (best): Up to 300 x 300 dpi (400 x 400 dpi for received faxes only); Black (standard): 203 x 98 dpi; Black and white (fine): Up to 203 x 196 dpi; Black photo grayscale: 300 x 300 dpi (400 x 400 dpi for received faxes only) |
| Fax features | Not available | Auto fax reduction supported: Yes; Auto-redialing: Yes; Fax delayed sending: No; Distinctive ring detection supported: No; Fax forwarding supported: Yes; Junk barrier supported: Yes; Maximum speed dialing numbers: Up to 1000 numbers (each with 210 destinations); PC interface supported: Yes; Fax polling supported: Yes (poll to receive only) |
| Connectivity | ||
|---|---|---|
| Standard connectivity | 1 Hi-Speed Device USB 2.0; 2 Hi-Speed USB 2.0 Host; 1 Gigabit Ethernet; 1 Hardware Integration Pocket | |
| Mobile printing capability | Apple AirPrint™; Google Cloud Print™; HP ePrint; Mopria™ Certified; Roam capable for easy printing | |
| Wireless capability | Optional, enabled with purchase of a wireless hardware accessory. Single band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3000w NFC/Wireless Accessory J8030A, Dual band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3100w BLE/NFC/Wireless Accessory 3JN69A, Dual band Wireless Station functionality available with HP Jetdirect 2900nw Print Server J8031A | |
| Network capabilities | Yes, via HP Jetdirect Ethernet embedded print server (standard) which supports: 10Base-T, 100Base-Tx, 1000Base-T; 802.3az (EEE) support on Fast Ethernet and Gig Links; IPsec (standard); Optional 802.11a/b/g/n wireless networking and second Ethernet port. | |
| Memory | Standard: 1.25 GB (printer); 500 MB (Scanner); Maximum: 2.75 GB Max memory, when Accessory DIMM is installed | |
| Hard disk | 16 GB EMMC. The optional 500GB Encrypted Hard Disk(B5L29A) is only for Upgrade and Replacement. | Standard, minimum 320 GB HP High-Performance Secure Hard Disk (AES 256 hardware encryption or greater). The optional 500GB Encrypted Hard Disk(B5L29A) is only for Upgrade and Replacement. |
| Processor speed | 1.2 GHz | |
| Duty cycle (monthly) | Up to 150,000 pages; Recommended monthly page volume: 4,000 to 15,000 | |
| Paper handling | ||
|---|---|---|
| Input | 100-sheet multipurpose Tray 1, 550-sheet input Tray 2, automatic duplex printing | |
| Output | 250-sheet output bin | 250-sheet output bin, convenience stapler |
| Media types | Paper (bond, color, letterhead, plain, preprinted, prepunched, recycled, rough); envelopes; labels; cardstock; transparencies; user-defined | |
| Media weight | Tray 1: 60 to 199 g/m²; tray 2+: 60 to 120 g/m² | |
| Media sizes custom | Tray 1: 76.2 x 127 to 215.9 x 355.6 mm; Tray 2: 105 x 148 to 215.9 x 355.6 mm; Optional 550-sheet Tray: 105 x 148 to 215.9 x 355.6 mm | |
| Printer dimensions (W x D x H) | 482 x 496 x 497 mm | |
| Printer weight | 21.41 kg | 22.13 kg |
| What’s in the box | HP LaserJet Managed E52645dn Printer; HP LaserJet Managed Regulatory flyer (CD replacement); Chile Regulatory flyer (AC8); Unpack flyer; Installation Guide; Power cord; Warranty Cards; Support flyers/phone number list; Japan jtr errata (ABJ) | HP LaserJet Managed Flow E52645c Printer; Regulatory flyer (CD replacement); Unpack flyer; Installation Guide; Power cord; Warranty Cards; Support flyers/phone number list; Control Panel Overlay Label Sets (Flow); Overlay keyboard (ABJ); Japan jtr errata (ABJ) |
| Software included | No software solutions are included for the HP LaserJet Managed E52645dn and E52645c. You can find software on the websites http://hp.com, http://123.hp.com | |
| Warranty features | One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Contact your Contractual Vendor or go to hp.com/support to learn about HP award winning service and support options in your region. (wty code 4G; wty ID A001) | |
| Systems | ||
|---|---|---|
| Compatible operating systems | Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple® macOS Sierra v10.12, Apple® macOS High Sierra v10.13, Apple® macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see www.hp.com/go/upd | |
| Minimum system requirements | PC:2 GB available hard disk space Internet connection or USB port Internet browser. For additional OS hardware requirements see microsoft.com; Mac: 2 GB available hard drive space Internet connection or USB port Internet browser. For additional OS hardware requirements see apple.com | |
| Security management | Identity management: Kerberos authentication; LDAP authentication; 1000 user PIN codes; optional HP and 3rd party advanced authentication solutions (e.g.; badge readers); Network: IPsec/firewall with Certificate; Pre-Shared Key; and Kerberos authentication; Supports WJA-10 IPsec configuration Plug-in; 802.1x authentication (EAP-PEAP; EAP-TLS); SNMPv3; HTTPS; Certificates; Access Control List; Data: Storage Encryption; Encrypted PDF & Email (uses FIPS 140 validated cryptographic libraries from Microsoft); Secure Erase; SSL/TLS (HTTPS); Encrypted Credentials; Device: Security lock slot; USB port disablement; hardware integration pocket for security solutions; Intrusion Detection with Red Balloon Security Technology – Constant in-device monitoring for attacks; SureStart Secure Boot – BIOS Integrity Checking with self-healing capability; Whitelisting – loads only known good code (DLLs, ExEs, …); Connection Inspector – helps ensure network connections to device are safe, Security management: Compatible with HP JetAdvantage Security Manager, HP Printer Security Plugin for Microsoft SCCM, Device Security Syslog Messages processed and accessable in ArcSight, Splunk, and McAfee(ESM) SIEMs | |
| Fonts and typefaces | 105 internal TrueType fonts scalable in HP PCL, 92 internal scalable fonts in HP postscript Level 3 emulation (Euro symbol built-in); 1 internal Unicode Fonts (Andale Mono World Type); 2 Internal Windows Vista 8 Fonts (Calibri, Cambria);additional font solutions available via third-party flash memory cards; HP LaserJet Fonts and IPDS Emulation available at http://www.hp.com/go/laserjetfonts | |
| Control panel | 8.0-in (20.3 cm) color LCD with touchscreen; rotating (adjustable angle) display; illuminated Home button (for quick return to the Home menu) | 8.0-in (20.3 cm) color LCD with touchscreen; rotating (adjustable angle) display; illuminated Home button (for quick return to the Home menu); Integrated Keyboard |
| Display | 8.0 in (20.3 cm) touchscreen (1024×768) LCD (color graphics); smooth gesture enabled touchscreen | |
| Power | Power supply type: Built-in 115V or 220V Power Supply; Power supply required: Input voltage: 100V to 127V nominal (+/-10%), 50 – 60 Hz nominal (+/- 3Hz), 7.5 A; Input voltage: 220V to 240V nominal (+/-10%), 50 – 60Hz nominal (+/- 3Hz), 4 A; Power consumption: 629 watts (Printing), 28.8 watts (Ready), 5.28 watts (Sleep), 0.74 watts (Auto-Off/Auto-On), LAN connection: 0.06 watts (Auto-Off), 0.06 watts (Off); Typical Electricity Consumption number: 1.412 kWh/Week (Energy Star), 1.414 kWh/Week (Blue Angel) | |
| Environmental ranges | The HP LaserJet Managed E52645dn and E52645c are intended to be used in the following environment: Operating temperature range: 10 to 32.5°C ; Recommended operating temperature: 15 to 27°C ; Operating humidity range: 10 to 80% RH ; Recommended operating humidity range: 30 to 70% RH | |
| Acoustics | Acoustic power emissions: 6.8 B(A) ; Acoustic power emissions (ready): 4.0 B(A) ; Acoustic pressure emissions bystander (active, printing): 54 dB(A) ; Acoustic pressure emissions bystander (ready): 26 dB(A) | |
| Safety approvals and requirements | IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 60825-1:2014/IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010/IEC 62479:2010; Low Voltage Directive 2014/35/EU with CE Mark (Europe); IEC 62471:2006/EN 62471:2008 (LED lighting); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries. | |
| Supported network protocols | Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, IPP 2.0, Apple AirPrint™, HP ePrint, FTP Print, Google Cloud Print; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual, TFTP Config, ARP-Ping), IPv6 (Stateless Link-Local and via Router, Stateful via DHCPv6); Management: SNMPv2/v3, HTTP/HTTPs, Telnet, TFTP Config, Syslog; Security: SNMPv3, SSL Cert Management, IPSec/Firewall, ACL, 802.1x | |
