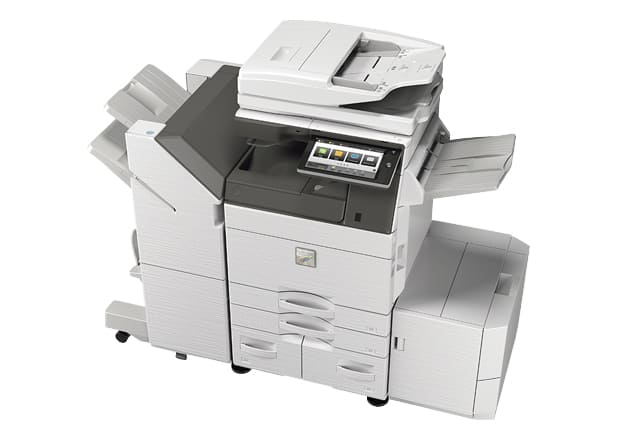

Main Specifications – Sharp MX-3570V
Learn more about the Sharp MX-3570V series of copiers.
| Sharp MX-3570V | Base models include multitasking controller, 100-sheet RSPF and PCL 6 printing system, network scanning, auto duplexing, 1 x 550-sheet paper drawer, 100-sheet bypass tray. Black and color developer is included. |
|---|---|
| TYPE | The Sharp MX-3570V is a color multi-function digital document system. |

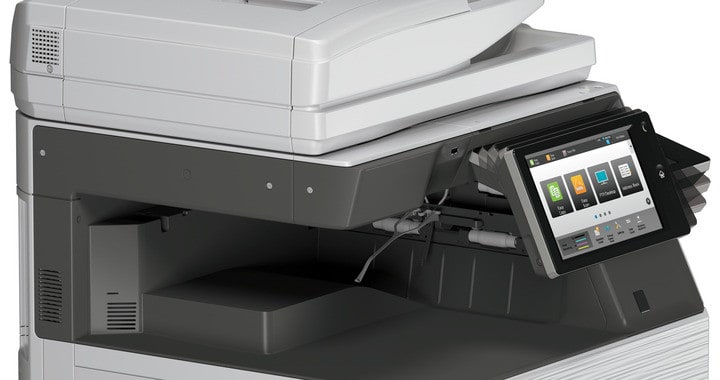

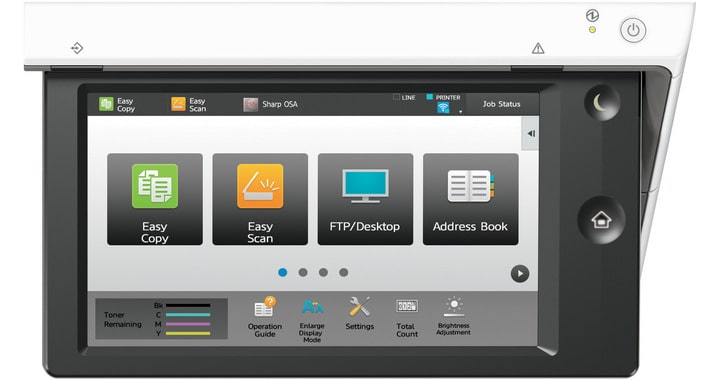

| DISPLAY | 10.1″ (diagonally measured) color dot matrix high-resolution touch panel tilting display. 1024 x 600 dots (W-SVGA) |
| FUNCTIONS | Copy, print, network print, network scan, document filing and fax |
| COPY SYSTEM | Dry electrostatic transfer/Dual component developer/ Magnetic brush development/OPC drums/Belt fusing/white LED exposure |
| ORIGINALS | Sheets and bound documents |
| MAX. ORIGINAL SIZE | 11″ x 17″ |
| COPY SIZE | Min. 5½” x 8½”, Max. 12″ x 18″ |
| COPY SPEED | The Sharp MX-3570V can copy up to 35 ppm B & W/Color (8½” x 11″) |
| MULITPLE COPY | Max. 9,999 copies |
| FIRST COPY TIME (SEC) | Platen Glass RSPF |
| Mono: 4.7 Color: 6.7 Mono: 7.3 Color: 10.0 | |
| WARM UP TIME | 10 seconds or less |
| MAGINIFICATION | 25% to 400% in 1% increments (with RSPF 25%-200%) |
| ORIGINAL FEED | 150-sheet RSPF with original size detection |
| SCAN SPEED | Copy: Up to 200 ipm (B & W)/106 ipm (Color) |
| Scan: Up to 200 ipm (B & W/Color) | |
| ORIGINAL SIZED | 5½” x 8½”, 8½” x 11″, 8½” x 11″ R, 8½” x 14″, 11″ x 17″ |
| PAPER CAPACITY | Standard: 650 Sheets/Maximum: 6,300 Sheets |
| PAPER FEED SYSTEM | Standard: (1) 550-sheet paper drawer (letter/legal/ledger/statement size) and 100-sheet bypass tray (letter/legal/ledger/ statement/envelope size). Optional: Single, double, or triple drawer paper deck (550, 1,100, or 1,650 sheets), split tandem paper drawer (2,100 sheets letter only) plus (1) 550-sheet paper drawer (letter/legal/ledger/statement size). |
| PAPER WEIGHTS AND TYPES | Paper drawers: 18 lb. bond to 110 lb. cover. Split Tandem Tray: 18 lb. bond to 28 lb. bond. Other paper types include plain, pre-printed, recycled, pre-punched, letterhead and color paper. Bypass tray: 16-28 lb. bond (plain paper), 13-16 lb. bond (thin paper), 28 lb. bond-110 lb. cover (heavy paper), 20-24 lb. bond (Monarch/Com-10 envelope), tab paper (letter). Also label paper, gloss paper, pre-printed, recycled, pre-punched, letterhead, color paper and OHP film. |
| DUPLEXING | Standard automatic duplex copying and printing |
| CPU | Up to 1.9 GHz multi-processor design |
| INTERFACE | 10/100/1000 Base-T Ethernet, USB 2.0: 2 host ports (front & rear), 1 available device port (rear), opt. wireless 802.11 b/g/n |
| MEMORY | Standard 5 GB copy/print (shared)/Hard Disk Drive: 250 GB |
| HARD DISK DRIVE | 500 GB |
| COPY RESOLUTION | Scan: 600 x 600 dpi (B & W/Color) |
| Copy Output: Up to 1200 x 1200 dpi | |
| COLOR MODES | Auto Color Selection (ACS), Full Color Mode, Monochrome (B/W) |
| EXPOSURE CONTROL | Modes: Automatic, Text, Text/Photo, Text/Printed-Photo, Printed-Photo, Photo, Map, Pale-Color Document. Settings: Auto or 9 step manual |
| HALFTONE | 256 gradations/2 levels (monochrome) |
| COPY FEATURES | Scan-Once Print-Many, electronic sorting, offset-stacking, Auto Color Selection (ACS), Auto Paper Selection (APS), Auto Magnification Selection (AMS), Auto Tray Switching (ATS), black-white reversal, blank page skip, book copy, book divide, card shot, center erase, centering, cover pages, dual page copy, edge erase, image edit, image preview, insert pages, job build, job programs, margin shift, mirror image, mixed size original, multi-page enlargement, original count, pamphlet style, proof copy, repeat layout, reserve copy, rotated copy, stamp, stamp custom image, suppress background, tab copy, tab-paper insertion, tandem copy, toner save mode, transparency inserts, watermark, 2-in-1 / 4-in-1 / 8-in-1 multi shot |
| ACCOUNT CONTROL | Up to 1,000 users. Supports user-number authentication via local, LDAP, and Active Directory® for copy, print, scan and document management |
| OUTPUT TRAY CAPACITY | Center Exit Tray (Main): 250 sheets (face down) |
| Job Separator (Upper Tray): 100 sheets (face down) | |
| Right Side Exit Tray: 100 sheets (face down) | |
| CLOUD SUPPORTED SERVICES | Google Cloud Print, Google Drive, Box.com, OneDrive for Business, SharePoint Online |
| NETWORK PROTOCOLS | TCP/IP (IPv4, IPv6, IPsec), HTTP/HTTPS, IPP/IPP-SSL, FTP/ FTPS, SNMPv3, SMTP/SMTP-SSL, POP3/POP3-SSL, LDAP/ LDAP-SSL, 802.1x for Windows and Unix. |
| NETWORK SECURITY | Includes IP/MAC address filtering, protocol filtering, port control, user authentication (local/LDAP/Active Directory®), TLS Encryption, Kerberos support |
| FIRMWARE MANAGEMENT | Flash ROM with local (USB), network update capability and firmware update 1 to N with SRDM (Sharp Remote Device Manager) |
| DEVICE SETUP | Web-based management/cloning with user/administrator level login |
| SERVICE/FUNCTIONS | Remote Front Panel, remote access to service logs and click counts |
| ACCESSIBILITY FEATURES | Free stop tilting front panel, adjustment of key touch sound and speed, concave key, document feeder free stop, job programs, remote front panel, universal grip for paper trays, and disable screen timeout |
| ENVIRONMENTAL STANDARDS | International Energy Star Program Ver. 2.0, European RoHS, Blue Angel (RAL-UZ171) |
| POWER | 110-127 V AC, 60 HZ, 15 A Receptacle |
| POWER CONSUMPTION | 1.44 kW or less |
| WEIGHT | Approx. 191 lbs. |
| DIMENSIONS | Approx. 24″ (w) x 26″ (d) 33″ (h) |
| Network Printing System | |
|---|---|
| PDL | Standard PCL® 6, optional Adobe® PostScript ® 3™ |
| RESOLUTION | 1200 x 1200 dpi |
| PRINT SPEED | The Sharp MX-3570V can print up to 35 pages per minute in B & W/Color (8½” x 11″) |
| PRINT DRIVERS | Windows® 7, Windows 8.1, Windows 10, Windows Server ® 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows PPD, MAC OS X® (including 10.6 to 10.13), all MAC PPD, UNIX®, Linux® |
| MOBILE PRINTING | AirPrint, Android printing framework (Sharp Print Service Plugin), Sharpdesk Mobile |
| PRINT FEATURES | Auto configuration, serverless print release, bar code font printing, carbon copy print, chapter inserts, color adjustment settings, color mode, confidential print, continuous printing, custom image registration, different cover page/last page/other page, document control, document filing, duplex printing, electronic sorting, folding, form overlay, hidden pattern print, image rotation, image stamp, image type, job bypass print, job retention, layout print, margin shift, multiple pamphlet, network tandem print, N-up printing, offset stacking, page interleave, pamphlet style, poster print, proof print, print and send, punching, stapling, tab paper print, tab printing, toner save mode, transparency inserts, tray status, user authentication, watermarks, zoom print |
| DIRECT PRINTING | File Types: TIFF, JPEG, PCL, PRN, TXT, and PNG. Optional: PDF, Compact PDF, Encrypted PDF, PS, DOCX, XLSX and PPTX. Methods: FTP, SMB, Web page, Email and USB memory |
| RESIDENT FONTS | 80 outline fonts (PCL), 139 fonts (PS) |
| INTERFACE | RJ-45 Ethernet 10/100/1000 Base-T, USB 2.0, Wireless |
| OPERATING SYSTEMS AND ENVIRONMENTS | Windows 7, Windows 8, Windows 10, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Mac OS X10.6-10.13, Novell® NetWare®, Unix, Linux, Citrix®, and SAP device types |
| PRINTING PROTOCOLS | LPR, IPP, IPPS, Raw TCP (port 9100), FTP, POP3, HTTP, and Novell Pserver/Rprinter, LPD and LPR for Unix |
| Network Scanning System | |
|---|---|
| SCAN MODES | Standard: Color, monochrome, grayscale |
| MAX. ORIGINAL SIZE | 11″ x 17″ |
| OPTICAL RESOLUTION | 600 dpi |
| OUTPUT MODES | 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi |
| IMAGE COMPRESSION | Monochrome Scanning: Uncompressed, G3 (MH), G4 (MR/MMR) Compression Color/Grayscale: JPEG (high, middle, low) Internet Fax mode: MH/MMR (option) |
| IMAGE FORMATS | Monochrome: TIFF, PDF, PDF/A, Encrypted PDF, and XPS Color/Grayscale: TIFF, JPEG, PDF, PDF/A, Compact PDF, Encrypted PDF, and XPS. Internet Fax: TIFF-FX, TIFF-F, and TIFF-S |
| SCAN DESTINATIONS | Email, Desktop, FTP, Folder (SMB), USB, Internet fax (option), Super G3 fax (option) |
| ONE-TOUCH DESTINATIONS | Up to 2,000 (combined scan destinations) |
| GROUP DESTINATIONS | Up to 500 |
| PROGRAMS | 48 (combined) |
| MAX. JOBS | Up to 100 |
| SOFTWARE | Sharpdesk® personal document management software (1 user license included), Sharpdesk Mobile (download) |
