Specifications – Canon imageRUNNER 1643 Series

For more information on the Canon imageRUNNER 1643 Series, view the brochure.

MAIN UNIT
TYPE	1643iF/1643i: Monochrome Laser Multifunctional
TYPE	1643P: Monochrome Laser Printer
CORE FUNCTIONS	1643iF: Print, Copy, Scan, Send, Fax
	1643i: Print, Copy, Scan, Send
	1643P: Print
PROCESSOR	Canon Dual Custom Processor (Shared)
OPERATION PANEL	1643iF/1643i: 5″ TFT LCD WVGA Color Touch Panel
OPERATION PANEL	1643P: 5-Line LCD Panel
MEMORY	1.0 GB RAM
INTERFACE CONNECTION	Network (Standard): 1643iF/1643i: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n), NFC, Wi-Fi Direct Connection 1643P: 1000Base-T/100Base-TX/10-Base-T
INTERFACE CONNECTION	Others (Standard): 1643iF/1643i: USB 2.0 (Host) x2, USB 2.0 (Device) x1 1643P: USB 2.0 (Host) x3, USB 2.0 (Device) x1
PAPER SOURCES (LETTER, 20 LB. BOND)	Standard: 550-sheet Paper Cassette, 100-sheet Stack Bypass

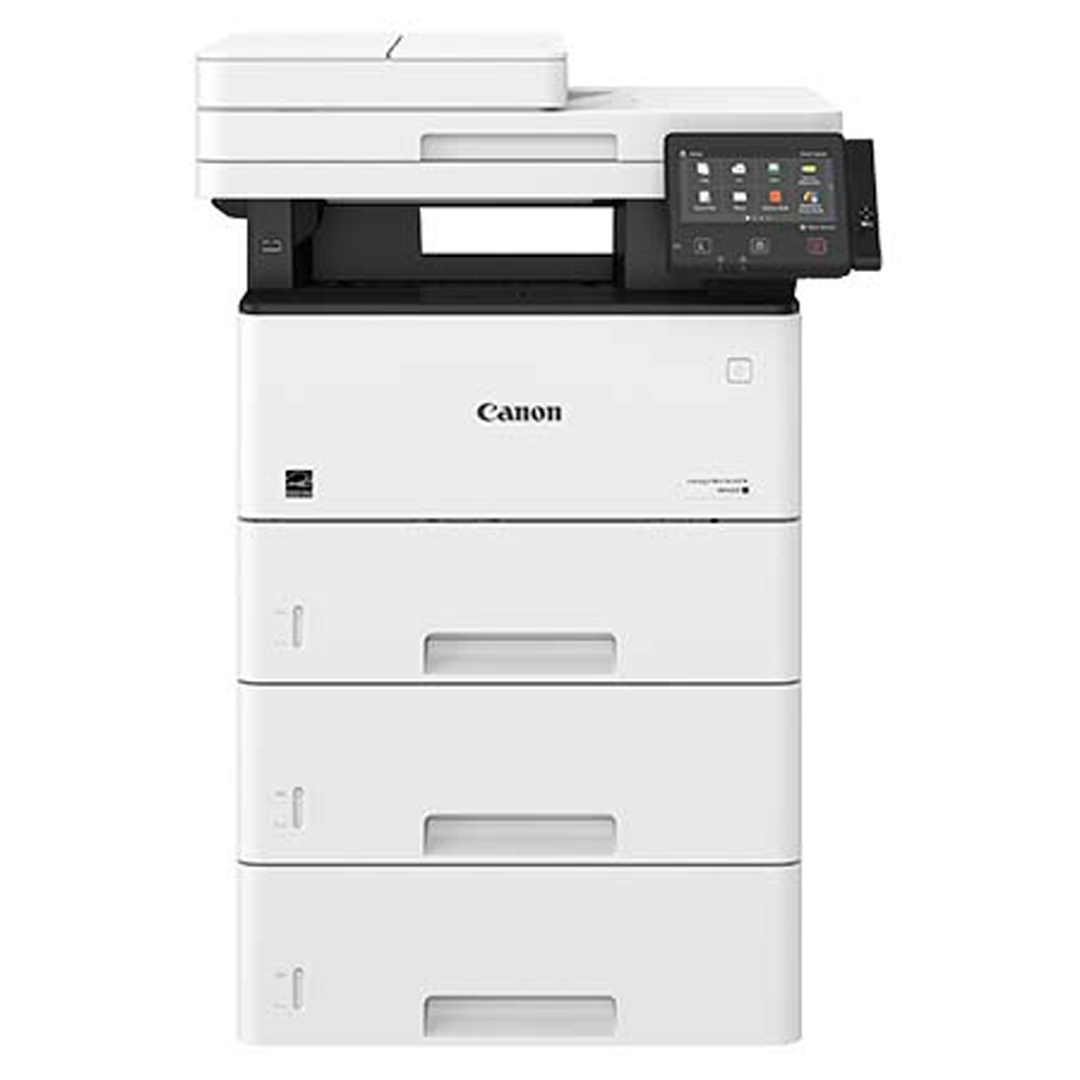

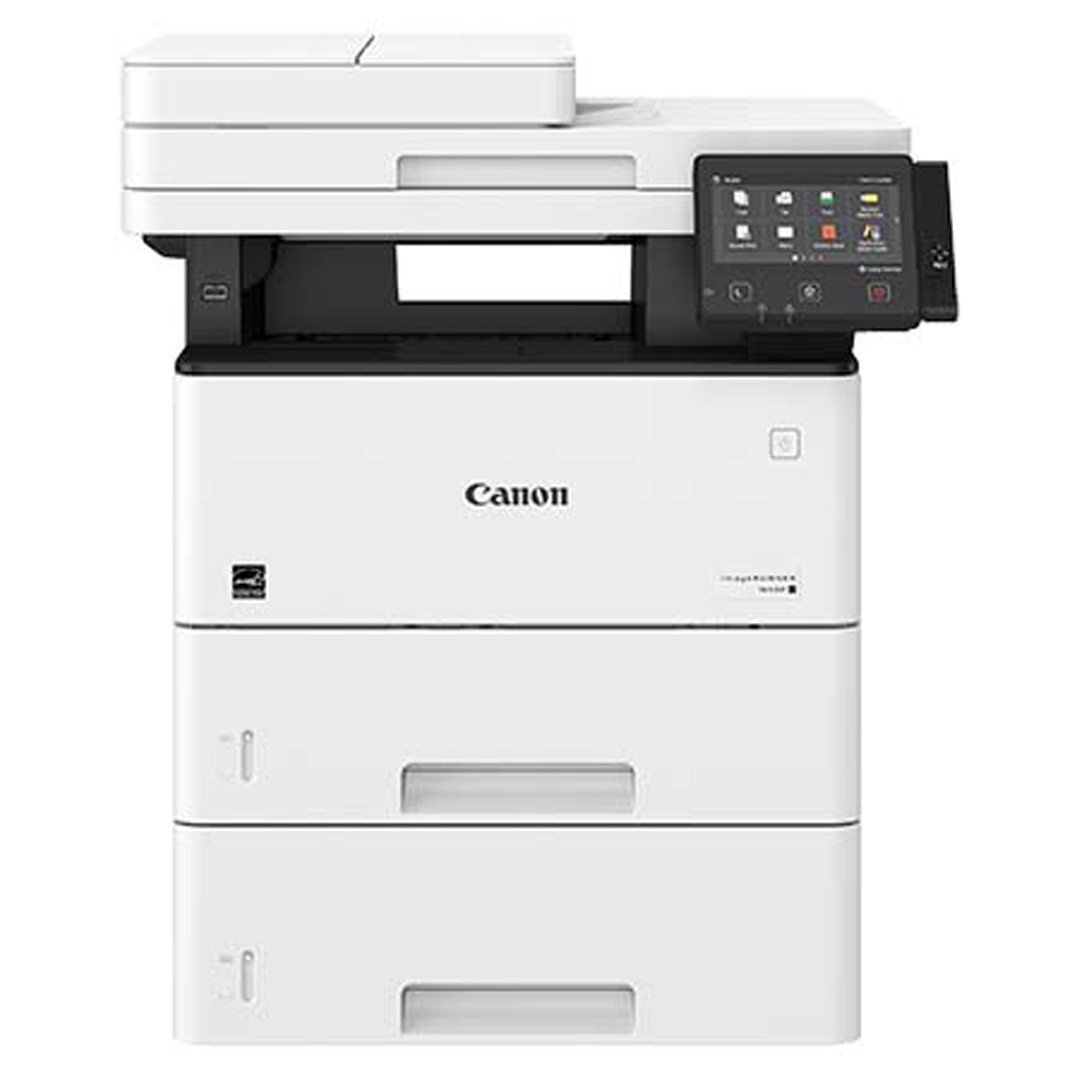

	Optional: 550-sheet PAPER FEEDER PF-C1 (up to 3)
	Maximum: 2,300 Sheets
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)	Maximum: 150 Sheets
SUPPORTED MEDIA SIZES	Cassette: Letter, Legal, Statement, Executive
SUPPORTED MEDIA SIZES	Bypass: Letter, Legal, Statement, Executive, Custom size (3″ x 5″ to 8-1/2″ x 14″), Envelope (C5/DL/ COM-10/Monarch)
SUPPORTED MEDIA WEIGHTS	Cassette: 16 lb. Bond to 32 lb. Bond (60 to 120 g/m2)
SUPPORTED MEDIA WEIGHTS	Bypass: 16 lb. Bond to 73 lb. Cover (60 to 199 g/m2)
COPY SPEED/PRINT SPEED	Up to 45 ppm (Letter); Up to 36 ppm (Legal)
WARM-UP TIME	From Power On: 1643iF/1643i: 14 Seconds or Less 1643P: 30 Seconds or Less
WARM-UP TIME	From Power Off: 1643iF/1643i: 4 Seconds or Less 1643P: 3 Seconds or Less
DIMENSIONS (W x D x H)	1643iF: 19-7/16” x 18-5/16” x 17-3/16” (494 mm x 465 mm x 452 mm)
	1643i: 18-7/8” x 15-5/16” x 17-13/16” (480 mm x 465 mm x 452 mm)
	1643P: 16-1/8” x 14-13/16” x 10-13/16” (409 mm x 376 mm x 275 mm)
INSTALLATION SPACE (W x D x H)	1643iF: 27-7/8” x 43-1/2” (708 mm x 1105 mm)
	1643i: 27-5/16” x 43-1/2” (694 mm x 1105 mm)
	1643P: 24-5/16” x 43-7/16” (617 mm x 1104 mm)
WEIGHT	1643iF/1643i: Approx. 41.9 lb. (19 kg)
WEIGHT	1643P: Approx. 25.3 lb. (11.5 kg)

PRINT SPECIFICATIONS
FIRST-PRINT-OUT TIME (LTR)	Approx. 5.7 Seconds
PRINT RESOLUTION (dpi)	600 x 600
STANDARD PAGE DESCRIPTION LANGUAGES	UFR II LT, PCL^®5e/6, Adobe^® PS^® 3 (Standard on 1643iF/1643P, optional on 1643i) Optional: Barcode Printing Kit
DIRECT PRINT	Supported File Types: TIFF, JPEG, PDF and XPS (only LPR) Available from USB memory, LPR
OPERATING SYSTEM	Windows 10/8.1/7 (32/64 bit), Windows Server (2019/2016/2012 R2 (64 bit)/2012 (64 bit)/ 2008 R2 (64 bit) /2008 (32/64 bit), Mac® (OS X 10.6 and later => 10.9 ~ 10/14) Linux (Web Distribution)
PRINT FEATURES	Suspend Job Timeout, Profile Settings, Secure Print, Header/ Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Front/ Back Covers, Toner Reduction, Poster Printing

COPY SPECIFICATIONS
FIRST-COPY-OUT-TIME	As fast as 6.0 Seconds (via Platen)
COPY RESOLUTION (dpi)	Reading/Printing: Up to 600 x 600
COPY SPECIFICATIONS	Automatic or Manual (9 Levels)
MULTIPLE COPIES	Up to 999
MAGNIFICATION	25% – 400% (1% Increments) from Platen Glass
PRESET REDUCTIONS	25%, 50%, 64%, 78%
PRESET ENLARGEMENTS	129%, 200%, 400%
BASIC COPY FEATURES	Preset R/E Ratios by Area, Paper Setting, Favorite Setting, Two-Sided, Density Adjustment, Original Type Selection
SPECIAL COPY FEATURES	Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Density Adjustment, Original Type Selection, Sharpness, Erase Frame, Copy ID Card

SCAN SPECIFICATIONS
TYPE	Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY	LTR: 50 Sheets (20 lb. Bond), LGL: 30 Sheets (20 lb. Bond)
MAXIMUM ORIGINAL SIZE	Up to 8-1/2″ x 14″
DOCUMENT FEEDER SUPPORTED MEDIA SIZES	4-1/8″ x 5″ to 8-1/2″ x 14″
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS	Simplex: 13 lb. to 28 lb. Bond (50 to 105 g/m2)
PLATEN ACCEPTABLE ORIGINALS	Sheet, Book, 3-Dimensional Objects
NETWORK TWAIN SCAN	Standard
NETWORK SCAN UTILITY	ScanGear MF
SCAN RESOLUTION	Up to 600 x 600
SCAN SPEED (LETTER)	300 dpi Simplex: Up to 38ipm (BW)/ 13ipm (Color) / Duplex: Up to 70ipm (BW)/ 26 (Color)
SCAN SPEED (LETTER)	600 dpi Simplex: Up to 21 ipm (BW) / Duplex: Up to 35 ipm (BW)

SEND SPECIFICATIONS
DESTINATION	E-mail/Internet FAX (SMTP), SMB, FTP
COLOR MODE	Color, BW
ADDRESS BOOK	LDAP (50)/Local (300)/Speed Dial (281)
SEND RESOLUTION	600 dpi, 300 dpi (CL/BW)
COMMUNICATION PROTOCOL	File: FTP (TCP/IP), SMB (TCP/IP)
COMMUNICATION PROTOCOL	Email: SMTP, POP3
FILE FORMAT	Standard: TIFF, JPEG, PDF(Compact, Searchable, Encrypted, Digital Signature)
UNIVERSAL SEND FEATURES	Original Type Selection, Two-sided Original, Density Adjustment, Sharpness, File Name, Subject/Message, E-mail Priority, TX Report, Original Content Orientation

FAX SPECIFICATIONS
MAXIMUM NUMBER OF LINES	One
MODEM SPEED	Super G3: 33.6 Kbps
MODEM SPEED	G3: 14.4 Kbps
COMPRESSION METHOD	MH, MR, MMR, JBIG
RESOLUTION	400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING / RECORDING SIZE	Letter, Legal, Statement, Executive
FAX FEATURES	Two-sided Original, Density (for Scanning), Sharpness, TX Report, RX Mode, Resolutions, Favorite Settings

STORE SPECIFICATIONS
MEMORY MEDIA	Standard: USB
SECURITY SPECIFICATIONS
AUTHENTICATION	Standard: 1643iF/1643i: Department ID, Embedded Universal Login Manager, uniFLOW Online Express 1643P: Department ID
AUTHENTICATION	Optional: 1643iF/1643i/1643P: uniFLOW and uniFLOW Online
NETWORK	Standard: 1643iF/1643i: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP 1643P: IP/Mac Address Filtering, IPSEC, TLS Encrypted Com
DOCUMENT	Standard:1643iF/1643i: Secure Print, Encrypted PDF, Device Signature 1643P: Secure Print

ENVIRONMENTAL SPECIFICATIONS
POWER REQUIREMENTS	120-127 V, 60 Hz, 7.1 A
PLUG (MAIN UNIT)	NEMA 5-15P
POWER CONSUMPTION	The imageRUNNER 1643 Series should be operated within the following environment Maximum: 1643iF/1643i: Approx. 1430W 1643P: Approx. 1370W
	Sleep Mode:1643iF/1643i: 0.9 W 1643P: 1.9 W
	Typical Electricity Consumption (TEC) Rating:1643iF/1643i: 0.40 kWh 1643P: 0.50 kWh
STANDARDS	ENERGY STAR^® Certified Rated EPEAT^® Silver

CONSUMABLES
TONER	T06 Black (All-In-One Toner Cartridge)
TONER YIELD (ESTIMATED @ 5% COVERAGE)	20,500 images (Estimated Yield @ ISO 19752 Coverage)

Back to products

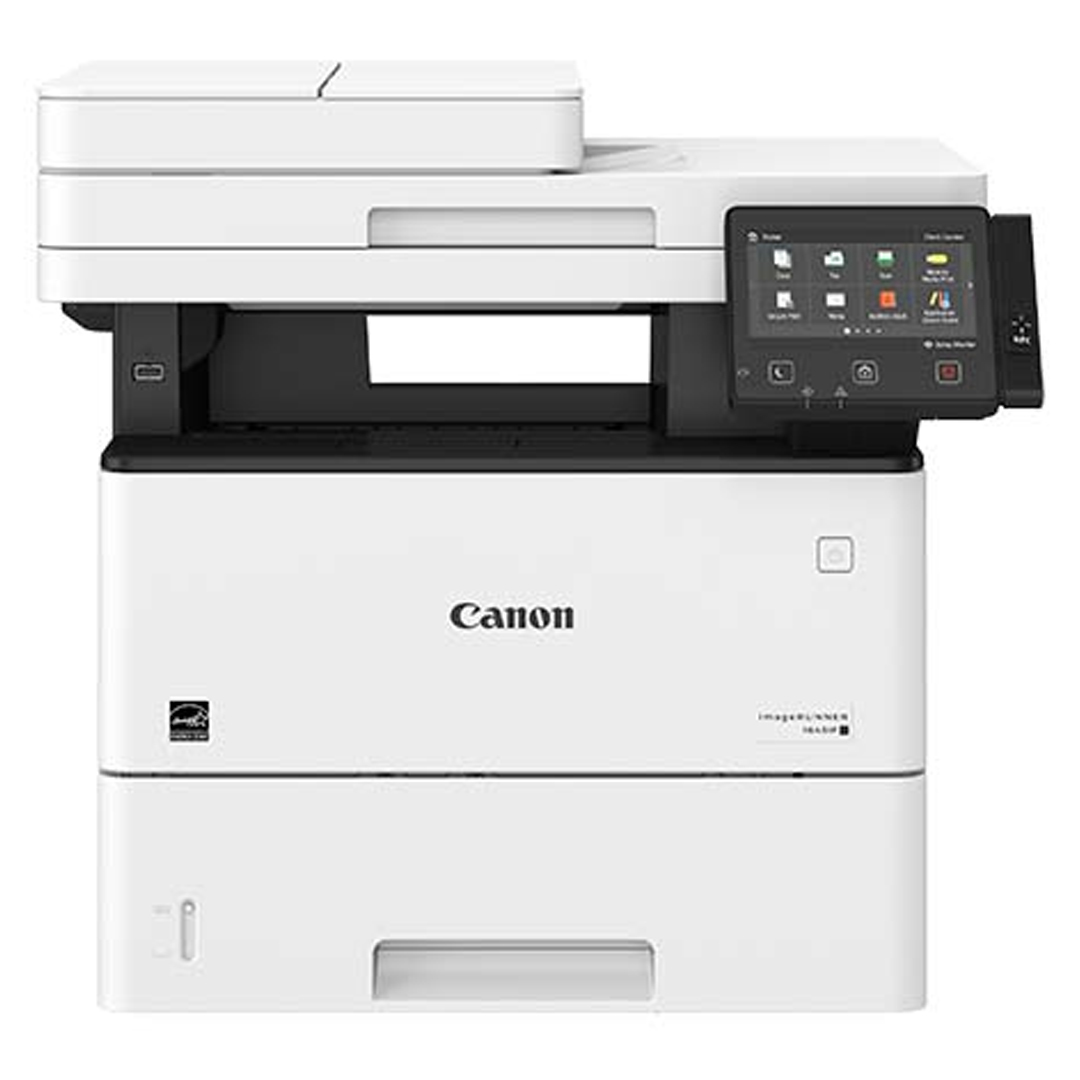

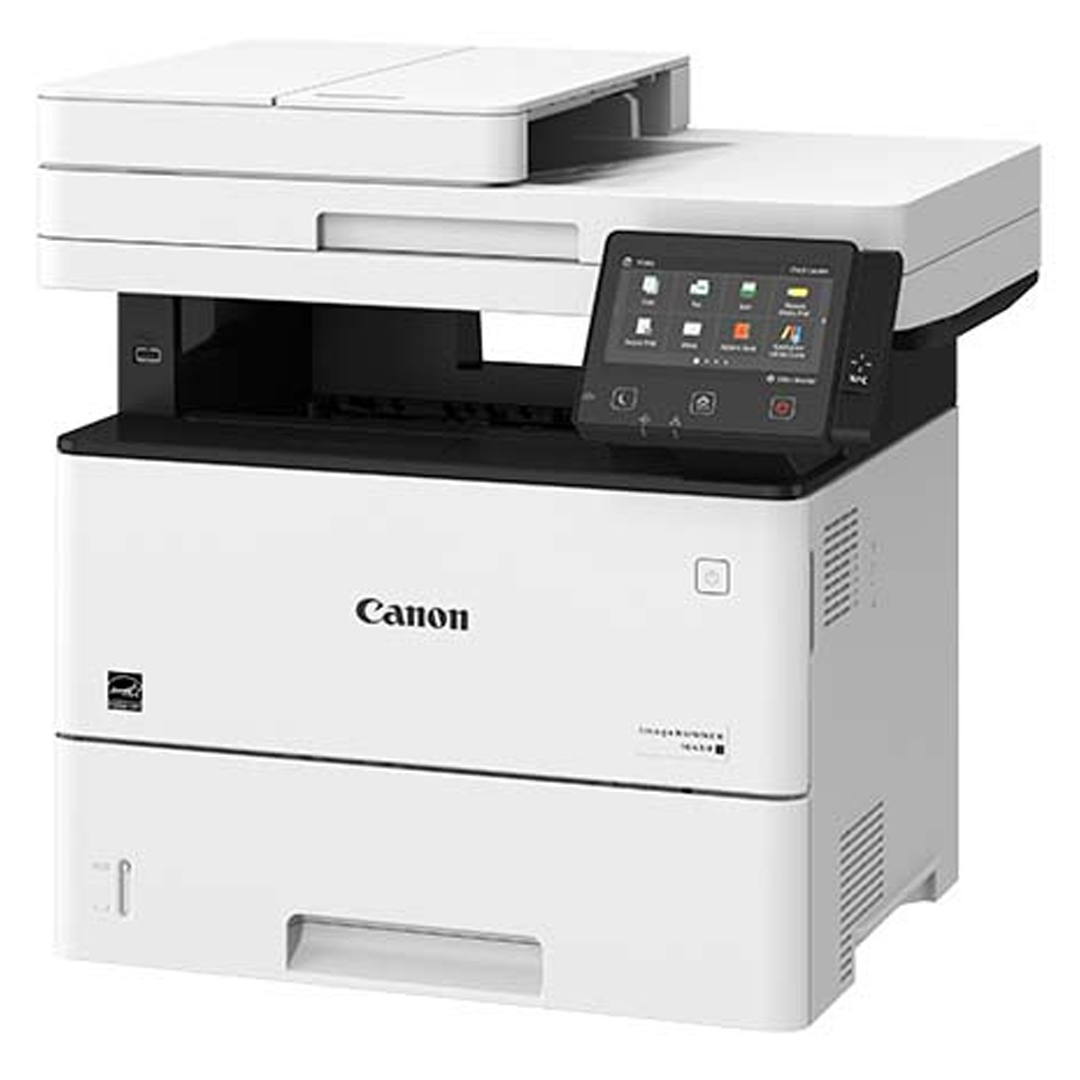

Canon imageRUNNER 1643 Series
