Specifications – Canon imageCLASS X MF1127C

For more information on the Canon imageCLASS X MF1127C , view the brochure.

MAIN UNIT
CORE FUNCTIONS	Print, Copy, Scan, Fax, Send (Lite)
PROCESSOR	Canon Custom Processor
CONTROL PANEL	5″ Color Touch Panel
MEMORY	1 GB
STANDARD INTERFACE CONNECTION	USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection, Near Field Communication
PAPER CAPACITY (LETTER, 20 LB. BOND)	Standard: 300 Sheets
PAPER CAPACITY (LETTER, 20 LB. BOND)	Maximum:850 Sheets
PAPER SOURCES (LETTER, 20 LB. BOND)	Standard:250-sheet Paper Cassette, 50-sheet Stack Bypass
PAPER SOURCES (LETTER, 20 LB. BOND)	Optional:550-sheet Paper Cassette (Cassette Unit AF-1)
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)	75 Sheets
SUPPORTED MEDIA TYPES	Cassettes:Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (10 Envelopes)
SUPPORTED MEDIA TYPES	Stack Bypass:Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (1 Envelope)
SUPPORTED MEDIA SIZES	Cassettes:Letter, Legal, Statement, Executive, Envelope: COM10, Monarch, C5, DL, Custom (Min. 3″ x 5″ to Max. 8.5″ x 14″)
SUPPORTED MEDIA SIZES	Stack Bypass:Letter, Legal, Statement, Executive Envelope: COM10, Monarch, C5, DL Custom (Min. 3″ x 5″ to Max. 8.5″ x 14″)
SUPPORTED MEDIA WEIGHTS	Cassettes:16 lb. Bond to 53 lb. Bond (60 to 200 g/m2)
SUPPORTED MEDIA WEIGHTS	Stack Bypass:16 lb. Bond to 53 lb. Bond (60 to 200 g/m2)
WARM-UP TIME	From Power On: 13 Seconds or Less
WARM-UP TIME	From Sleep Mode:6.1 Seconds or Less
DIMENSIONS (W x D x H)	imageCLASS X MF1127C:
	Standard (Desktop):18.8″ x 18.8″ x 18.4″ (478 mm x 478 mm x 467 mm )
	Box:24.0″ x 23.0″ x 23.2″ (610 mm x 584 mm x 589 mm)
INSTALLATION SPACE (W x D x H)	Standard (Desktop):21.4″ x 43.8″ x 29″ (544 mm x 1113 mm x 736 mm)
INSTALLATION SPACE (W x D x H)	Fully Configured:21.4″ x 43.8″ x 34.1″ (544 mm x 1113 mm x 866 mm)
WEIGHT	Unit:Approx. 64 lb. (29 kg)
WEIGHT	Boxed Weight:Approx. 76 lb. (35 kg)
SUPPORTED OS	Windows® 7/Windows 8.1/Windows 10/Windows Server 2008/Windows Server 2008 R2/Windows Server 2012/ Windows Server 2012 R2/Windows Server 2016 /Mac OS X v10.9.5 (or later)

PRINT SPECIFICATIONS
PRINTING METHOD	Laser Beam Printing
PRINT SPEED	Up to 28 ppm (Letter); Up to 22.9 ppm (Legal)
FIRST PRINT-OUT TIME	Approx. 7.5 Seconds
RECOMMENDED MONTHLY PAGE VOLUME	750 – 4,000 Pages
PRINT RESOLUTION (dpi)	600 x 600
STANDARD PAGE DESCRIPTION LANGUAGES	UFR II, PCL®6, PCL®5, Adobe PostScript® 3TM
DOUBLE-SIDED PRINTING	Automatic (Standard)
DIRECT PRINT	Available from USB Memory (JPEG, TIFF, PDF)
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES¹	A range of standard and optional software and MEAP- based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, anduniFLOW Mobile Printing) are available for the imageCLASS X MF1127C to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Pleasecontact your sales representativefor further information.
FONTS	PCL:93 Fonts
FONTS	PS :136 Fonts
PRINT FEATURES	Secure Print, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations

COPY SPECIFICATIONS
COPY SPEED	Up to 28 ppm (Letter); Up to 22.9 ppm (Legal)
FIRST COPY-OUT TIME (LETTER)	The imageCLASS X MF1127C prints its first copy as fast as: Platen: 11.2 seconds/13.1 seconds (BW/Color)
FIRST COPY-OUT TIME (LETTER)	ADF:9.9 seconds/11.8 seconds (BW/Color)
COPY RESOLUTION (dpi)	600 x 600
COPY SIZE	Platen:Up to Letter
COPY SIZE	ADF:Up to Legal
MULTIPLE COPIES	Up to 999 Copies
MAGNIFICATION	25% – 400% (1% Increments)
PRESET REDUCTIONS	25%, 50%, 64%, 78%
PRESET ENLARGEMENTS	129%, 200%, 400%
COPY FEATURES	Paper Setting, Favorite Setting, Two-sided, Original Type Selection, Cancel, N-on-1, Density Adjustment, Sharpness, Erase Frame, Collate, Copy ID Card

SCAN SPECIFICATIONS
TYPE	Single-Pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY	50 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA TYPES	Legal, Letter, Statement
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS	13-28 lb. Bond (50-105 g/m2)
PLATEN ACCEPTABLE ORIGINALS	Sheet, Book
PULL SCAN	ScanGear MF for TWAIN, and WIA
SCAN RESOLUTION (dpi)	Push Scan:Up to 300 x 600
SCAN RESOLUTION (dpi)	Pull Scan:Up to 600 x 600
SCAN TO MOBILE DEVICES	Canon PRINT Business
SCAN SPEED (LETTER)	Single-sided:14/28 ipm (300 x 600 dpi) (Color/BW)
SCAN SPEED (LETTER)	Double-sided:27/51 ipm (300 x 600 dpi) (Color/BW)
MEMORY MEDIA	Standard USB Memory (JPEG, TIFF, PDF)

SEND SPECIFICATIONS
DESTINATION	Email/Internet FAX (SMTP), SMB, FTP
ADDRESS BOOK	LDAP (50)/Local (300)/Speed Dial (281)
SEND RESOLUTION (dpi)	600 x 600 (Pull Scan), 196 x 204 (iFax), 300 x 300 (Other)
COMMUNICATION PROTOCOL	File:FTP, SMB
COMMUNICATION PROTOCOL	Email/iFax:SMTP, POP3, iFax (Simple)
FILE FORMAT	Standard:TIFF, JPEG, PDF (Compact, Searchable)
FILE FORMAT	Optional:PDF (Encrypted, Digital Signature)

FAX SPECIFICATIONS
MODEM SPEED	Super G3:33.6 Kbps
MODEM SPEED	G3:14.4 Kbps
COMPRESSION METHOD	MH, MR, MMR, JBIG
RESOLUTION (dpi)	400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING/RECORDING SIZE	Statement to Legal
FAX MEMORY	Up to 512 Pages
SPEED DIALS	Max. 281
GROUP DIALS/DESTINATONS	Max. 299 Dials
SEQUENTIAL BROADCAST	Max. 310 Addresses
MEMORY BACKUP	Yes
FAX FEATURES	RX Mode, Resolution, Two-sided Original, Density, Sharpness, Favorite Settings, Duplex Fax

SECURITY SPECIFICATIONS
AUTHENTICATION	Standard:Embedded Universal Login Manager, Department ID Authentication
DATA	Standard:Verify System at Startup
NETWORK	Standard:IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X(Wired Only), IPv6, SMTP Authentication, POP Authentication, POP Authentication before SMTP
DOCUMENT	Standard:Secure Print
WI-FI® AUTHENTICATION METHODS	Wi-Fi Infrastructure Mode:WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
WI-FI® AUTHENTICATION METHODS	Wi-Fi Access Point:WPA2-PSK (AES)

ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENT	The imageCLASS X MF1127C should be operated within the following environments:
	Temperature:50 to 86º F;
	Humidity:20 to 80% RH (no condensation)
POWER REQUIREMENTS	AC 120-127 V:6.5 A, 60 Hz
POWER CONSUMPTION	Maximum:Approx. 1470 W
	Standby:Approx. 20.5 W
	Sleep Mode:Approx. 0.6 W
	Typical Electricity Consumption (TEC) Rating:0.31 kWh
STANDARDS	ENERGY STAR® Qualified, Rated EPEAT Silver

CONSUMABLES
TONER	Toner T09 Black Yields 7,600 Pages
	Toner T09 Cyan Yields 5,900 Pages
	Toner T09 Magenta Yields 5,900 Pages
	Toner T09 Yellow Yields 5,900 Pages

Back to products

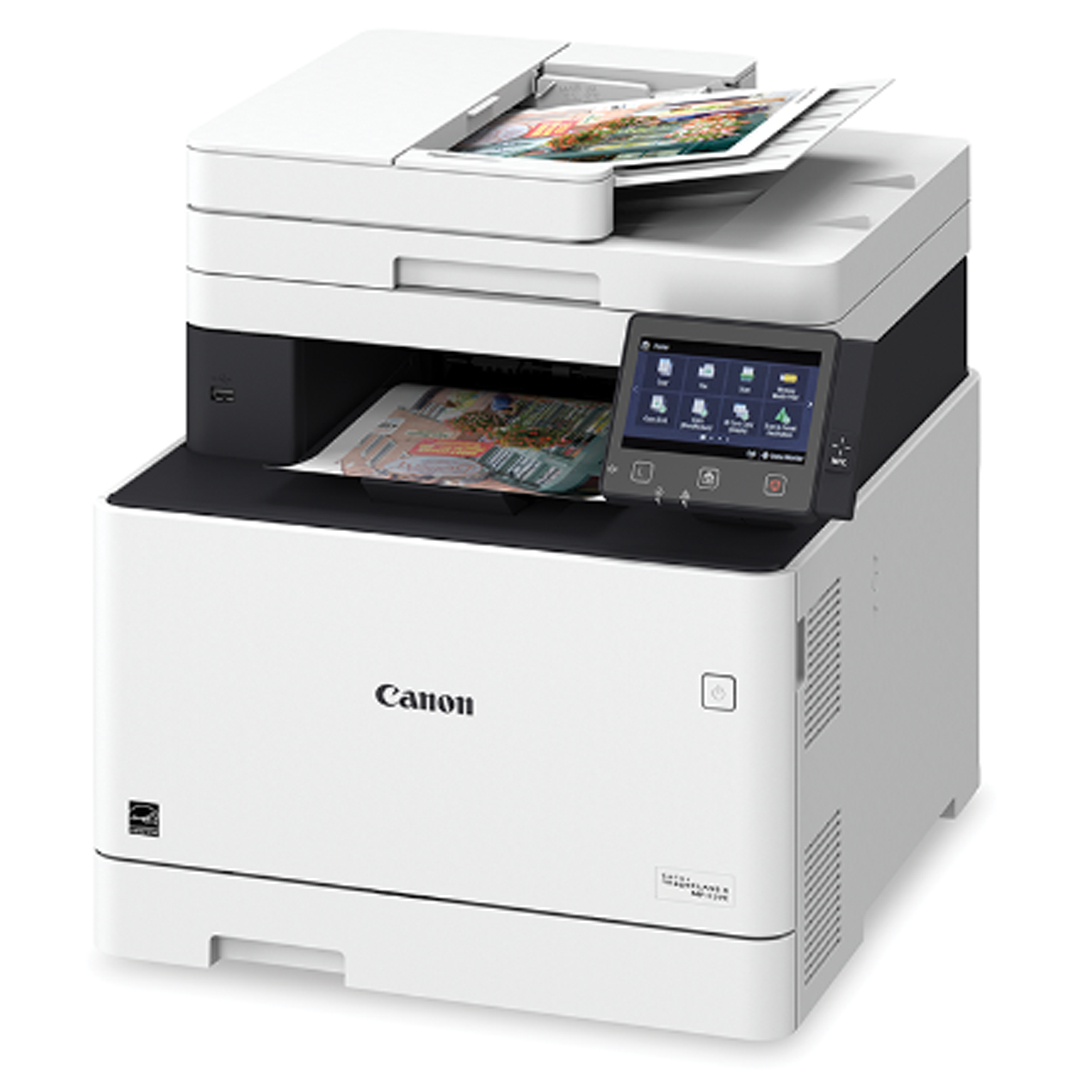

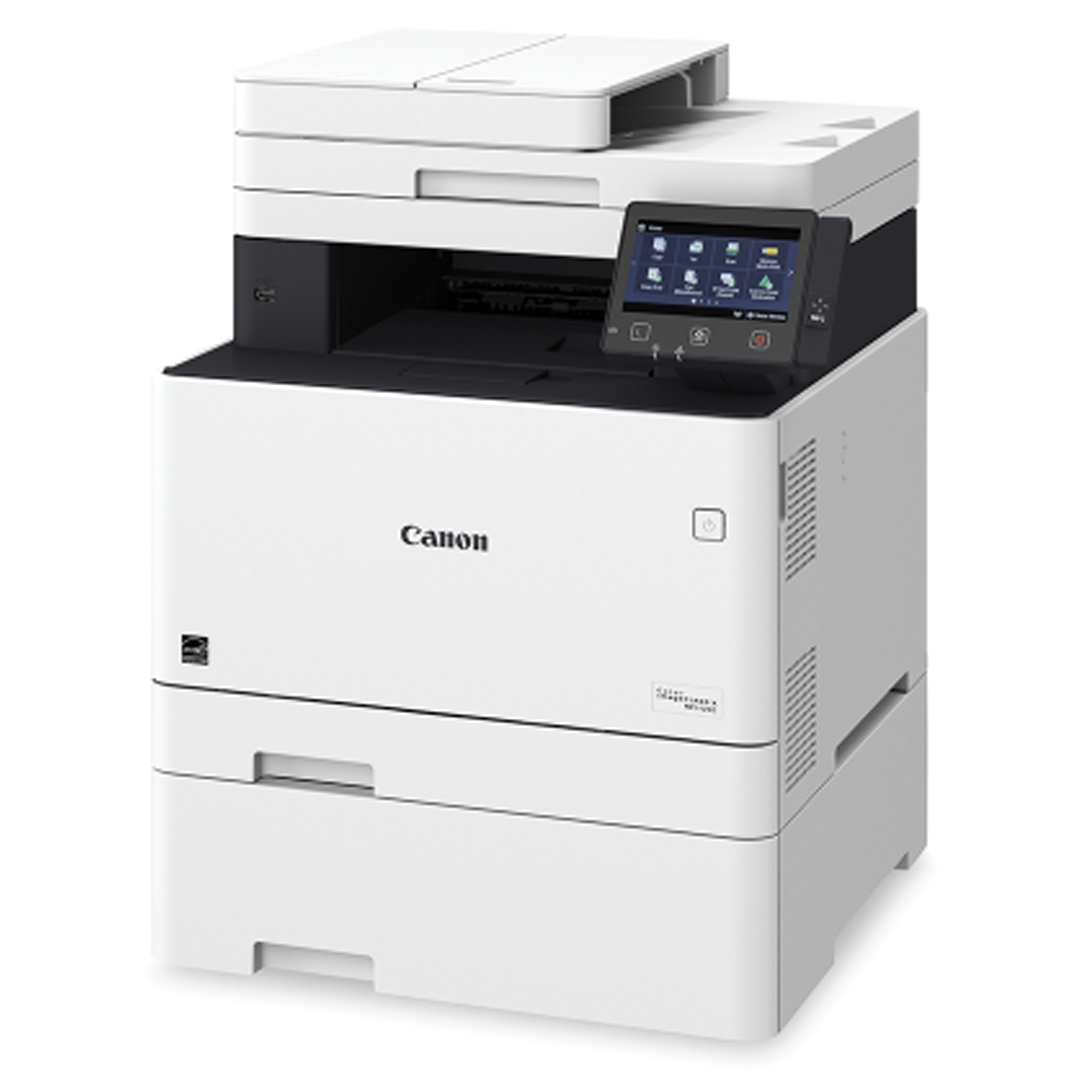

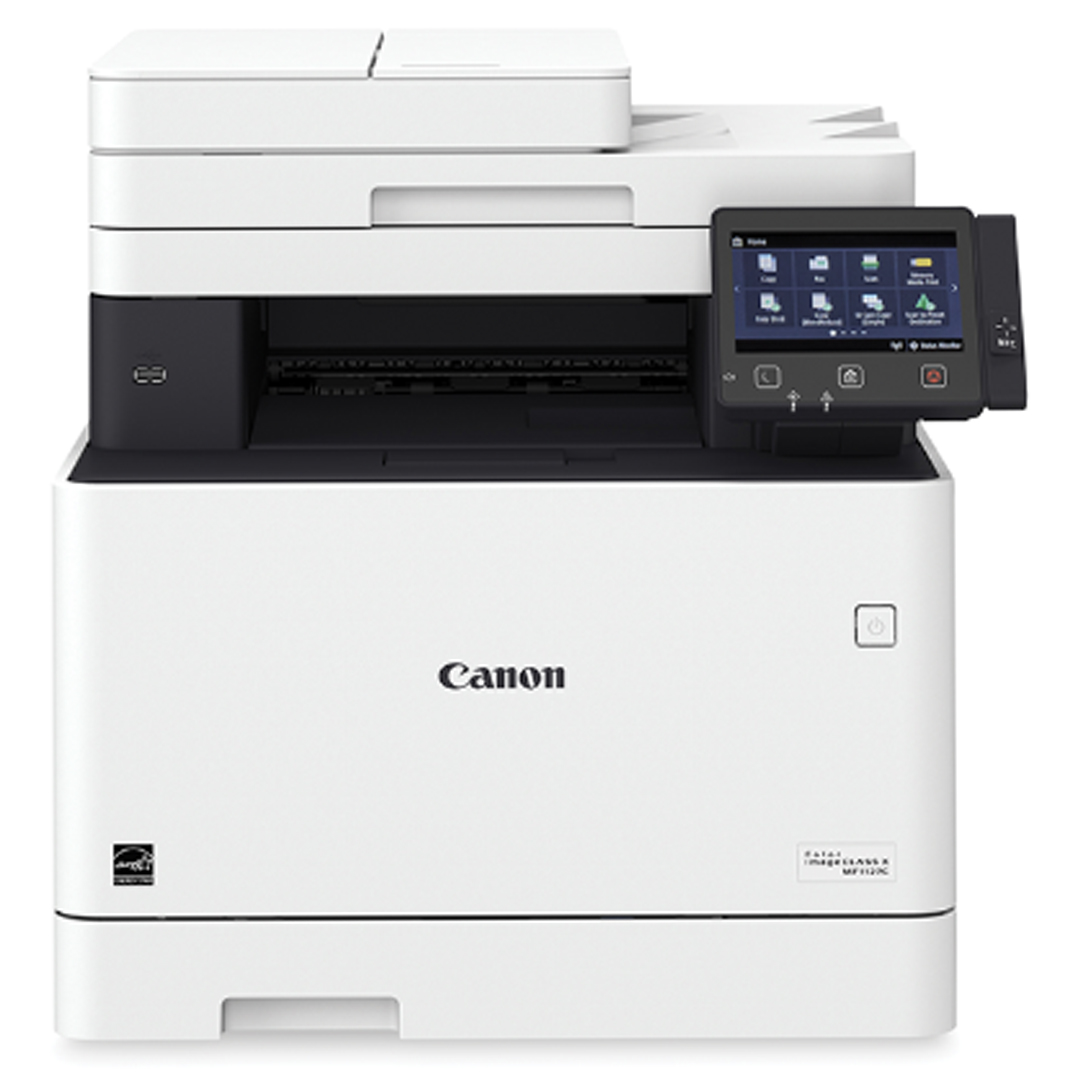

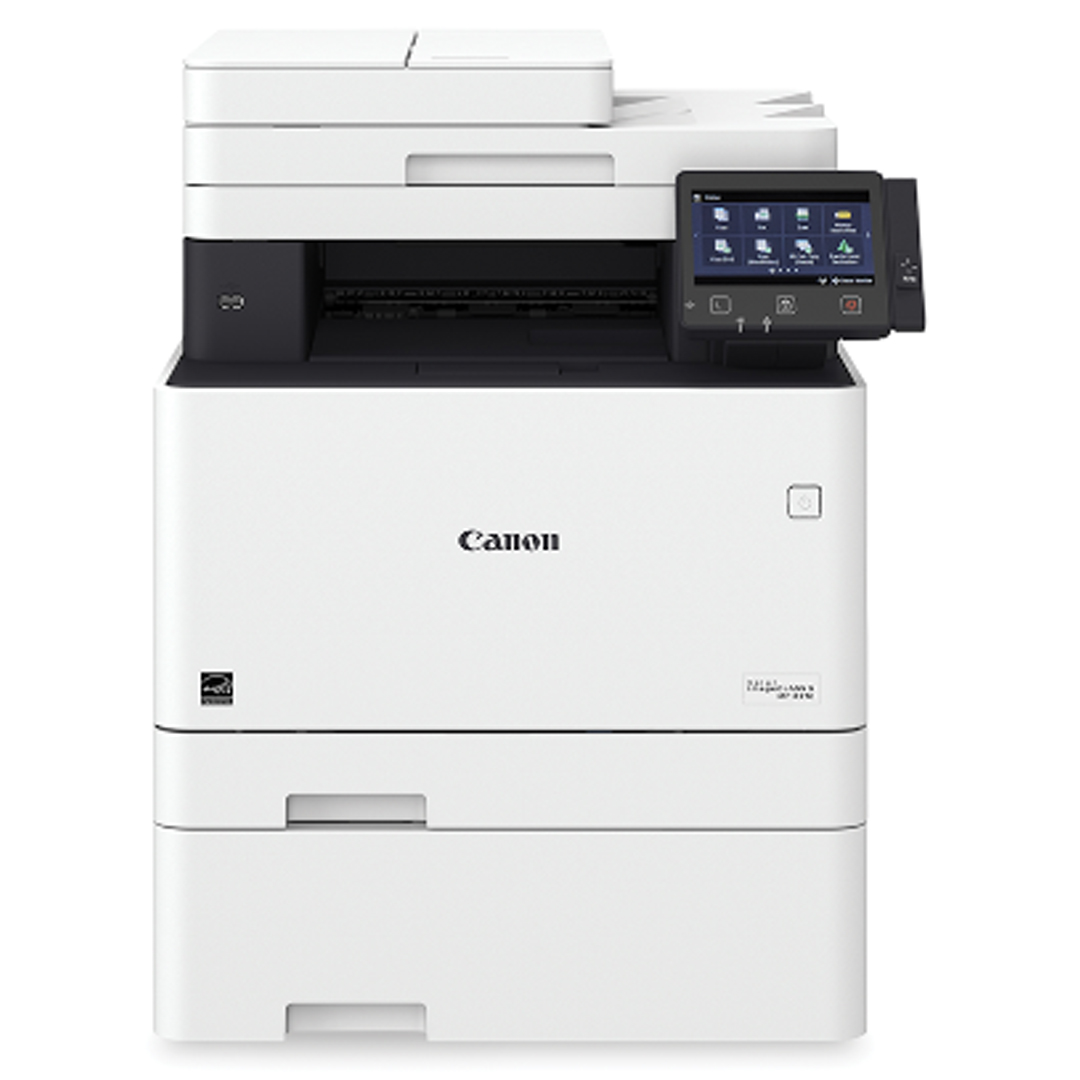

Canon imageCLASS X MF1127C
