Specifications – Canon imageCLASS X MF1238

For more information on the Canon imageCLASS X MF1238 , view the brochure.

MAIN UNIT
CORE FUNCTIONS	Standard: Print, Copy, Scan, Send, Fax
PROCESSOR	Canon Custom Processor
CONTROL PANEL	5″ Color Touch Panel
MEMORY	1 GB
STANDARD INTERFACE CONNECTION	USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection
PAPER CAPACITY (LETTER, 20 LB. BOND)	Standard: 350 Sheets
PAPER CAPACITY (LETTER, 20 LB. BOND)	Maximum:900 Sheets
PAPER SOURCES (LETTER, 20 LB. BOND)	Standard: 250-sheet Paper Cassette, 100-sheet Multipurpose Tray
PAPER SOURCES (LETTER, 20 LB. BOND)	Optional: 550-sheet Paper Cassettes (Cassette Unit-AH1)
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)	65 Sheets
SUPPORTED MEDIA TYPES	Cassettes: Thin, Plain, Recycled, Thick, Bond
SUPPORTED MEDIA TYPES	Multipurpose Tray: Thin, Plain, Recycled, Thick, Bond, Label, Envelope (10 Envelopes)
SUPPORTED MEDIA SIZES	Cassettes: Letter, Legal, Statement, Executive Custom (Min. 4.1″ x 5.8″ to Max. 8.5″ x 14″)
SUPPORTED MEDIA SIZES	Multipurpose Tray: Letter, Legal, Statement, Executive Envelope: COM10, Monarch, C5, DL Custom (Min. 3″ x 5″ to Max. 8.5″ x 14″)
SUPPORTED MEDIA WEIGHTS	Cassettes: 16 lb. Bond to 32 lb. Bond (60 to 120 g/m2)
SUPPORTED MEDIA WEIGHTS	Multipurpose Tray: 16 lb. Bond to 43 lb. Bond (60 to 163 g/m2)
WARM-UP TIME	From Power On: 14 Seconds or Less
WARM-UP TIME	From Sleep Mode:4 Seconds or Less
DIMENSIONS (W x D x H)	imageCLASS X MF1238:
DIMENSIONS (W x D x H)	Standard (Desktop): 17.9″ x 18.3″ x 15.5″ (453 mm x 464 mm x 392 mm)
INSTALLATION SPACE (W x D x H)	Standard (Desktop): 17.9″ x 34.8″ x 26.2″ (553 mm x 983 mm x 664 mm)
INSTALLATION SPACE (W x D x H)	Fully Configured: 17.9″ x 34.8″ x 31.3″ (453 mm x 883 mm x 795 mm)
WEIGHT	Unit: Approx. 35.8 lb. (16.2 kg)
WEIGHT	Boxed Weight: Approx. 45.9 lb. (20.8 kg)
SUPPORTED OS	UFR II/PCL/PS: Windows® 7/Windows 8.1/ Windows 10/Windows Server 2008/Windows Server 2008 R2/Windows Server 2012/Windows Server 2012 R2/ Windows Server 2016/Mac OS X v10.8.5 (or later

PRINT SPECIFICATIONS
PRINTING METHOD	Laser Beam Printing
PRINT SPEED	Up to 40 ppm (Letter); Up to 32 ppm (Legal)
FIRST PRINT-OUT TIME	Approx. 5.3 Seconds
RECOMMENDED MONTHLY PAGE VOLUME	750 – 4,000 Pages
PRINT RESOLUTION (dpi)	600 x 600
STANDARD PAGE DESCRIPTION LANGUAGES	UFR II, PCL®6, PCL®5, Adobe PostScript® 3TM
DOUBLE-SIDED PRINTING	Automatic (Standard)
DIRECT PRINT	Available from USB Memory (JPEG, TIFF, PDF)
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES¹	A range of standard and optional software and MEAP- based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, anduniFLOW Mobile Printing) are available for the imageCLASS X MF1238 to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Pleasecontact your sales representativefor further information.
FONTS	PCL:93 Fonts
FONTS	PS :136 Fonts
PRINT FEATURES	Secure Print, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations

COPY SPECIFICATIONS
COPY SPEED	Up to 40 ppm (Letter); Up to 32 ppm (Legal)
FIRST COPY-OUT TIME (LETTER)	The imageCLASS X MF1238 prints its first copy as fast as 6.2 seconds
COPY RESOLUTION (dpi)	600 x 600
COPY SIZE	Platen:Up to Letter
COPY SIZE	ADF:Up to Legal
MULTIPLE COPIES	Up to 999 Copies
MAGNIFICATION	25% – 400% (1% Increments)
PRESET REDUCTIONS	25%, 50%, 64%, 78%
PRESET ENLARGEMENTS	129%, 200%, 400%
COPY FEATURES	Paper Setting, Favorite Setting, Two-sided, Original Type Selection, Cancel, N-on-1, Density Adjustment, Sharpness, Erase Frame, Collate, Copy ID Card

SCAN SPECIFICATIONS
TYPE	Single-Pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY	50 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA TYPES	Legal, Letter, Statement
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS	Single and Double-sided scanning: 13-28 lb. Bond (50-105 g/m2)
PLATEN ACCEPTABLE ORIGINALS	Sheet, Book
PULL SCAN	ScanGear MF for TWAIN, and WIA
SCAN RESOLUTION (dpi)	Push Scan:Up to 300 x 600
SCAN RESOLUTION (dpi)	Pull Scan:Up to 600 x 600
SCAN TO MOBILE DEVICES	Canon PRINT Business
SCAN SPEED (LETTER)	Single-sided: 13/38 ipm (300 x 300 dpi) (Color/BW)
SCAN SPEED (LETTER)	Double-sided: 26/70 ipm (300 x 300 dpi) (Color/BW)
MEMORY MEDIA	Standard USB Memory (JPEG, TIFF, PDF)

SEND SPECIFICATIONS
DESTINATION	Email/Internet FAX (SMTP), SMB, FTP, Super G3 FAX
ADDRESS BOOK	LDAP (50)/Local (300)/Speed Dial (281)
SEND RESOLUTION (dpi)	600 x 600 (Pull Scan), 196 x 204 (iFax), 300 x 300 (Other)
COMMUNICATION PROTOCOL	File:FTP, SMB
COMMUNICATION PROTOCOL	Email/iFax:SMTP, POP3, iFax (Simple)
FILE FORMAT	Standard:TIFF, JPEG, PDF (Compact, Searchable)
FILE FORMAT	Optional:PDF (Encrypted, Digital Signature)

FAX SPECIFICATIONS
MODEM SPEED	Super G3:33.6 Kbps
MODEM SPEED	G3:14.4 Kbps
COMPRESSION METHOD	MH, MR, MMR, JBIG
RESOLUTION (dpi)	400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING/RECORDING SIZE	Statement to Legal
FAX MEMORY	Up to 512 Pages
SPEED DIALS	Max. 281
GROUP DIALS/DESTINATONS	Max. 299 Dials
SEQUENTIAL BROADCAST	Max. 310 Addresses
MEMORY BACKUP	Yes
FAX FEATURES	RX Mode, Resolution, Two-sided Original, Density, Sharpness, Favorite Settings, Duplex Fax

SECURITY SPECIFICATIONS
AUTHENTICATION	Standard:Embedded Universal Login Manager, Department ID Authentication
AUTHENTICATION	Optional:uniFLOW, uniFLOW Online
DATA	Standard:Verify System at Startup
NETWORK	Standard:IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X(Wired Only), IPv6, SMTP Authentication, POP Authentication, POP Authentication before SMTP
DOCUMENT	Standard: Secure Print, High Compression PDF, Searchable PDF
DOCUMENT	Optional: Encrypted PDF, User and Device Signatures
WI-FI® AUTHENTICATION METHODS	Wi-Fi Infrastructure Mode:WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
WI-FI® AUTHENTICATION METHODS	Wi-Fi Access Point:WPA2-PSK (AES)

ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENT	The imageCLASS X MF1238 should be operated within the following environments: Temperature:50 to 86º F;
OPERATING ENVIRONMENT	Humidity:20 to 80% RH (no condensation)
POWER REQUIREMENTS	AC 120-127 V:6.5 A, 60 Hz
POWER CONSUMPTION	Maximum:Approx. 1330 W
	Standby:Approx. 10 W
	Sleep Mode:Approx. 0.9 W
	Typical Electricity Consumption (TEC) Rating:0.34 kWh
STANDARDS	ENERGY STAR® Qualified, Rated EPEAT Silver

CONSUMABLES
TONER	Toner T08 Black Yields 11,000 Pages

Back to products

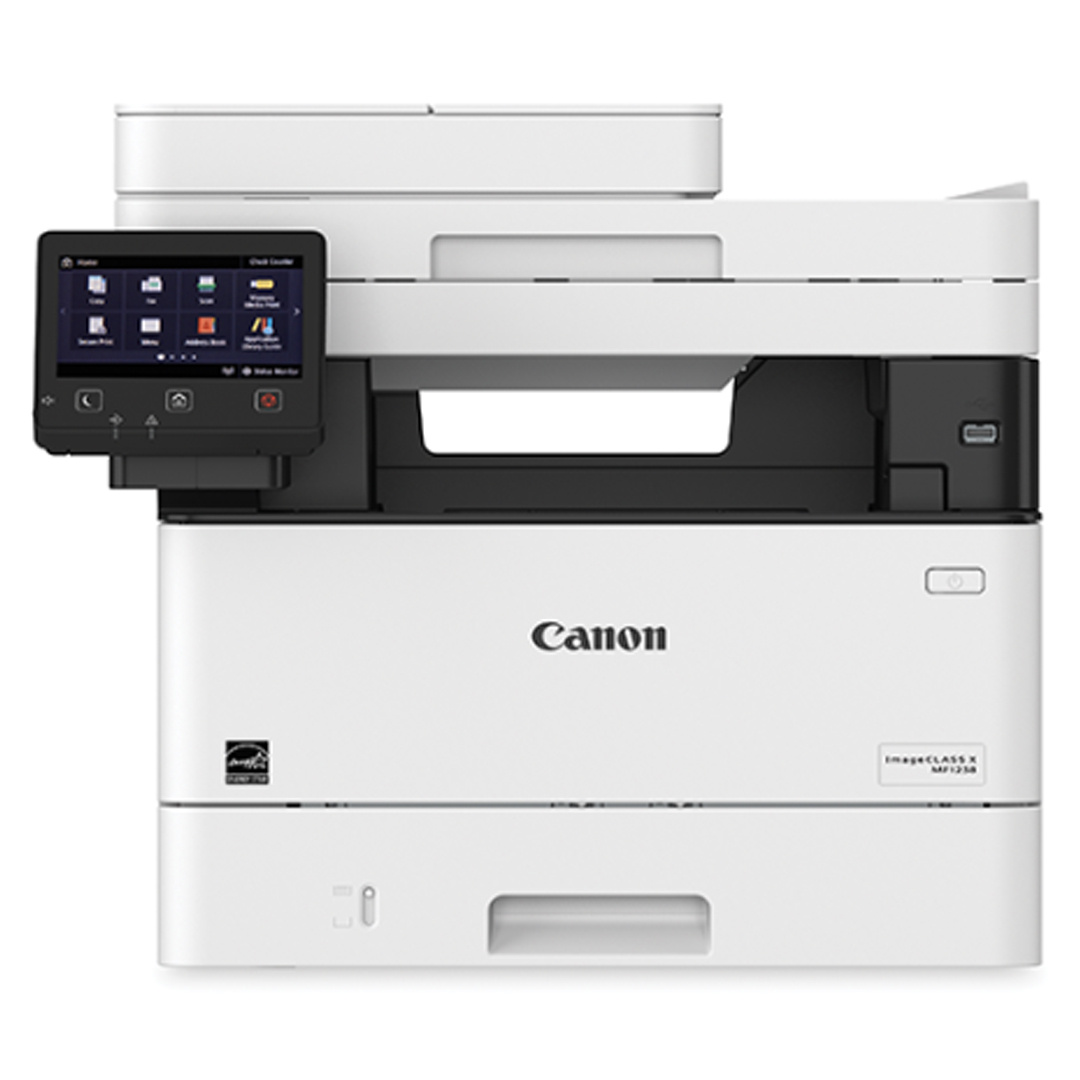

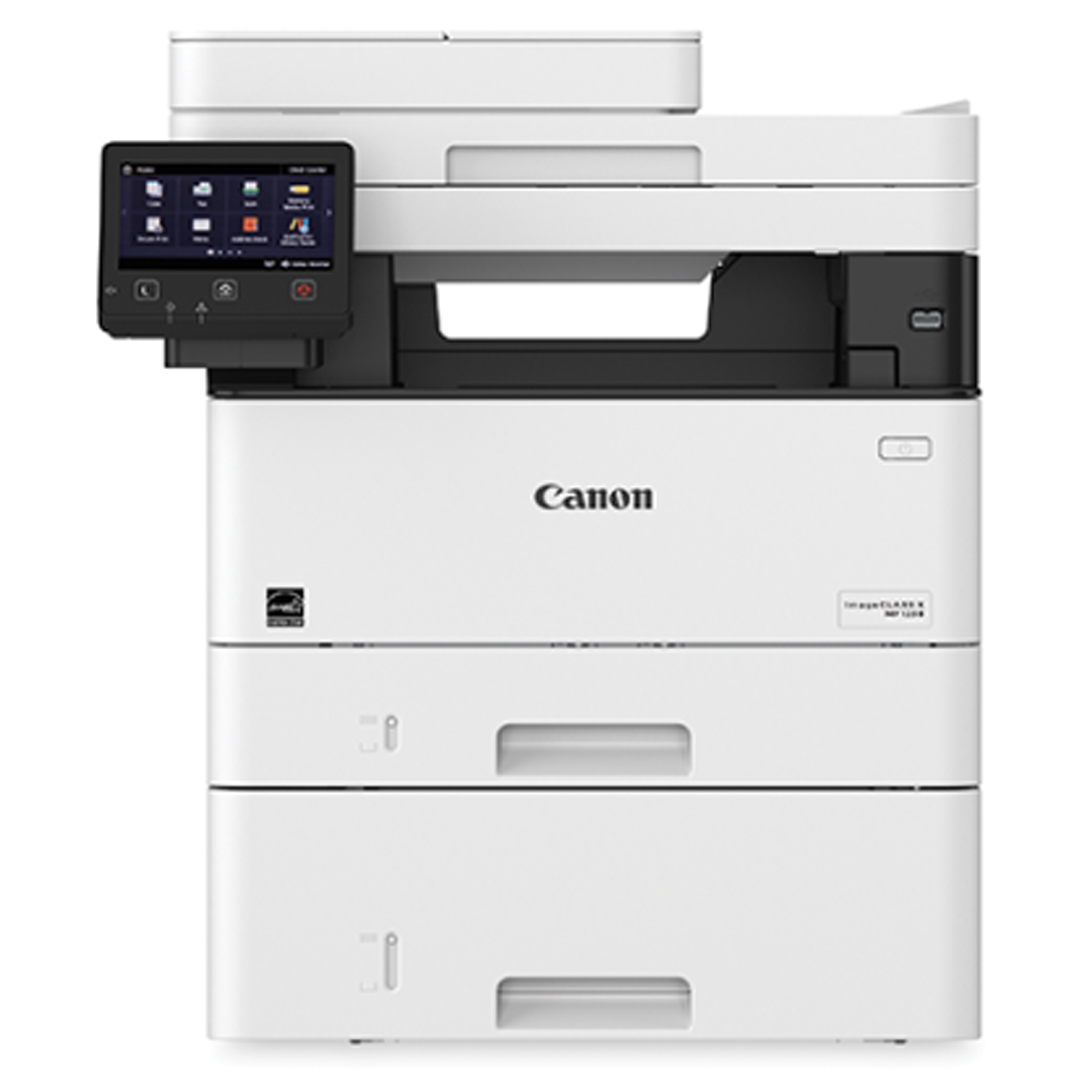

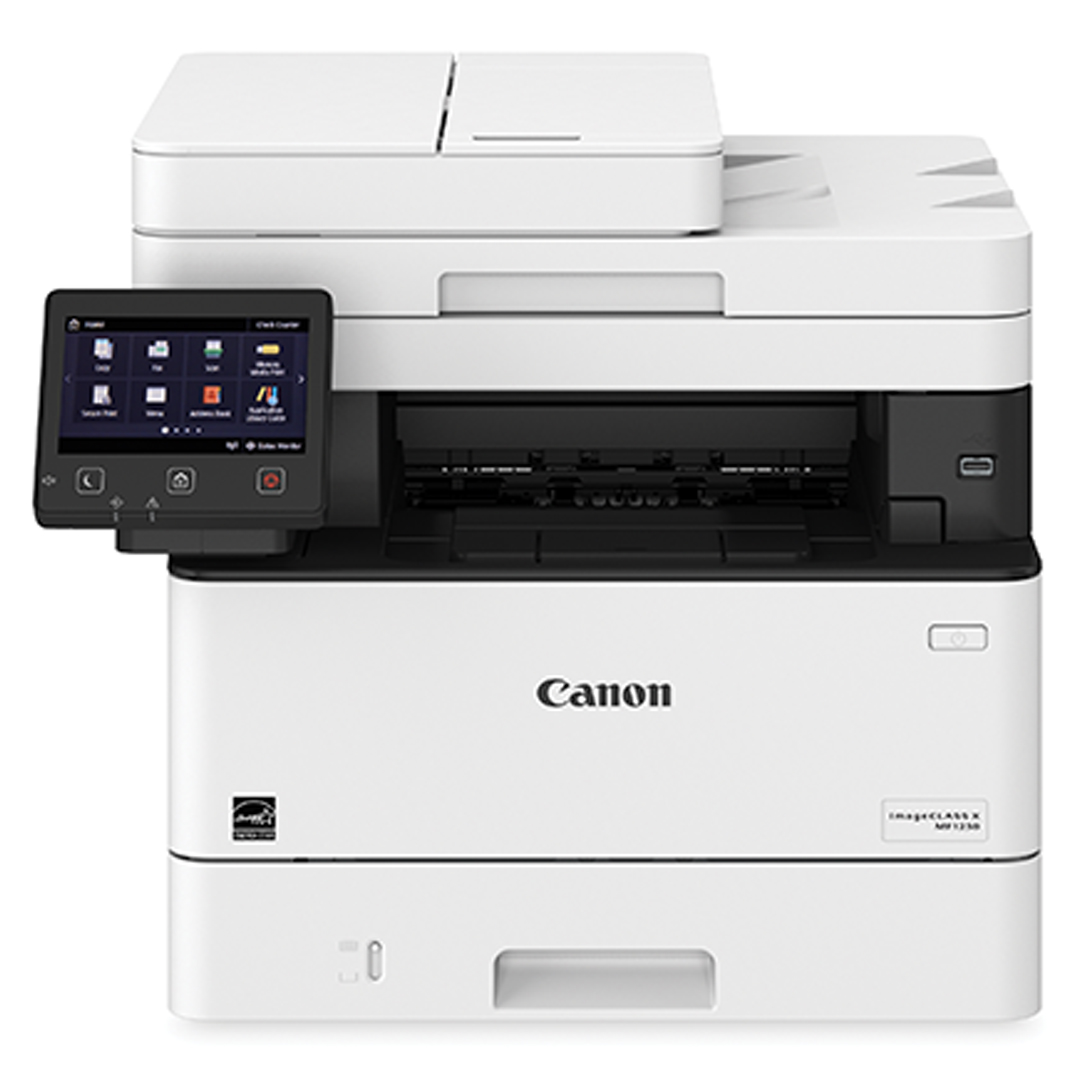

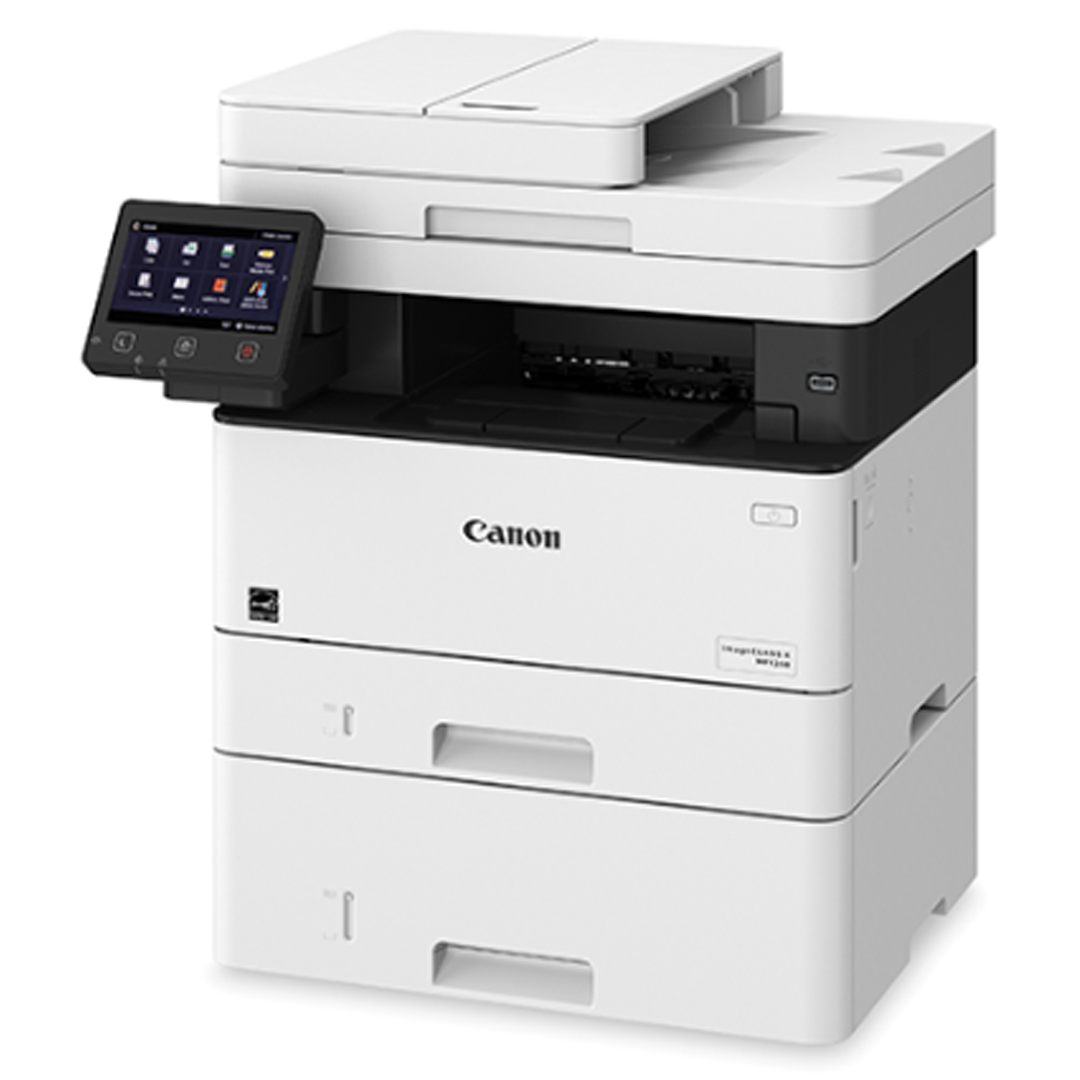

Canon imageCLASS X MF1238
