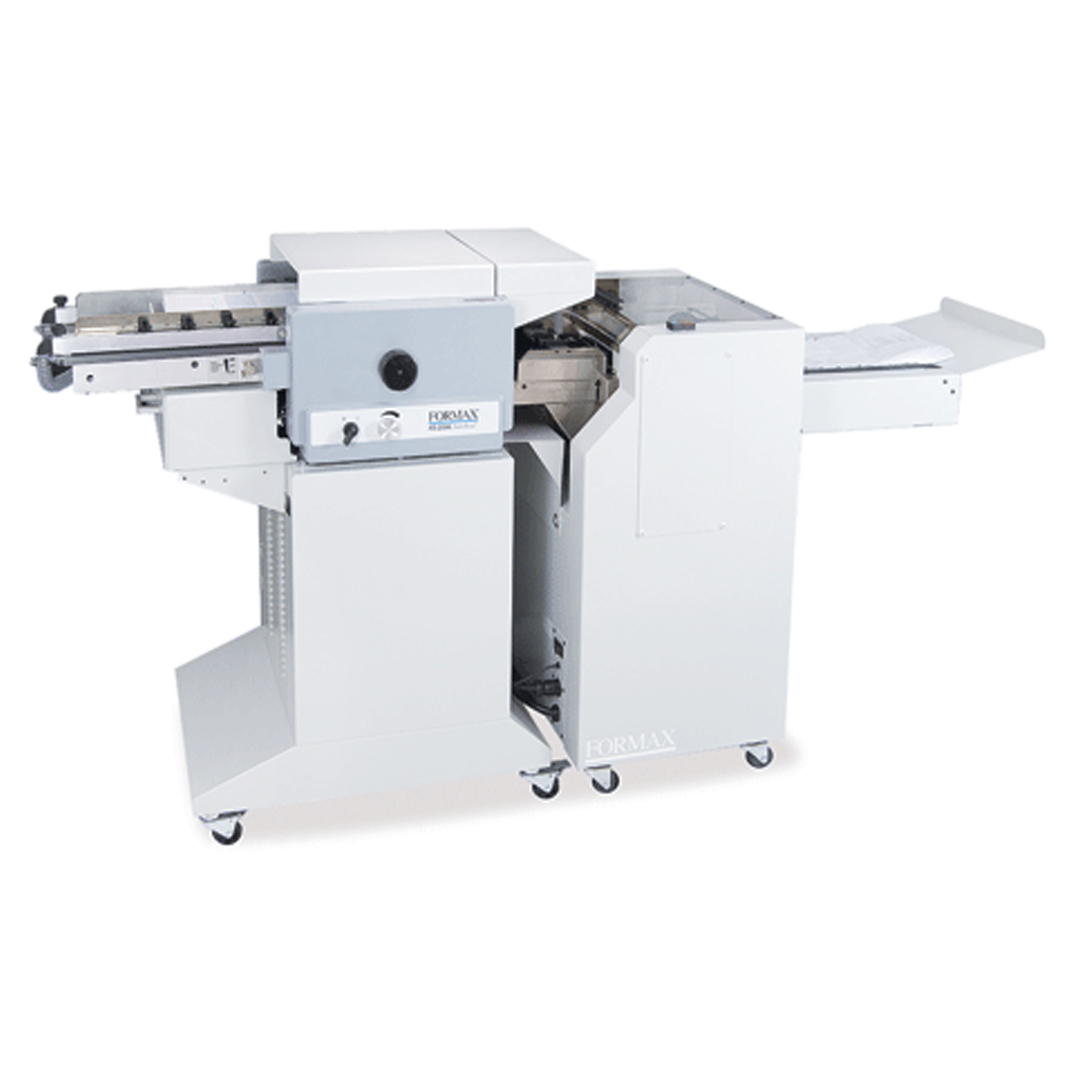

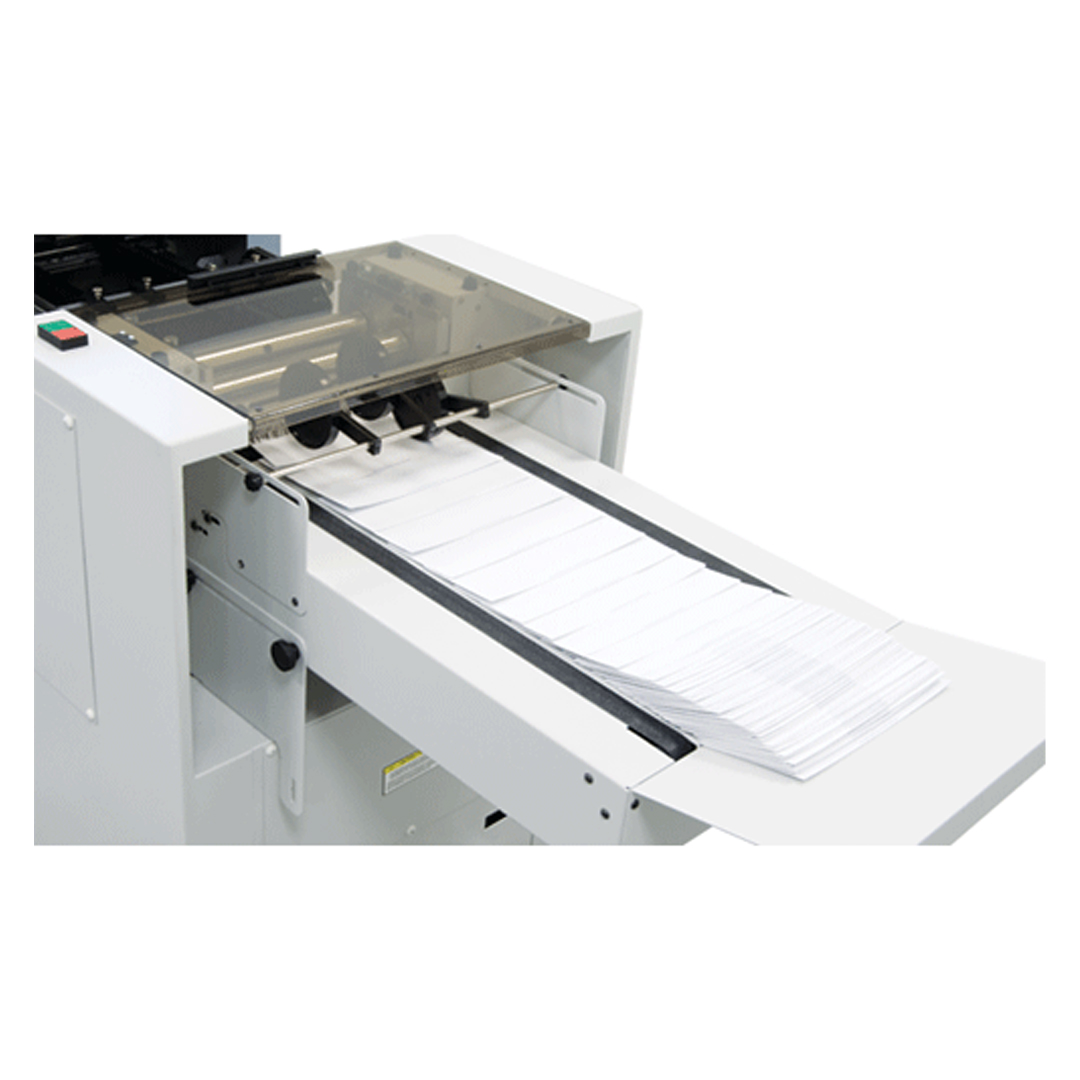

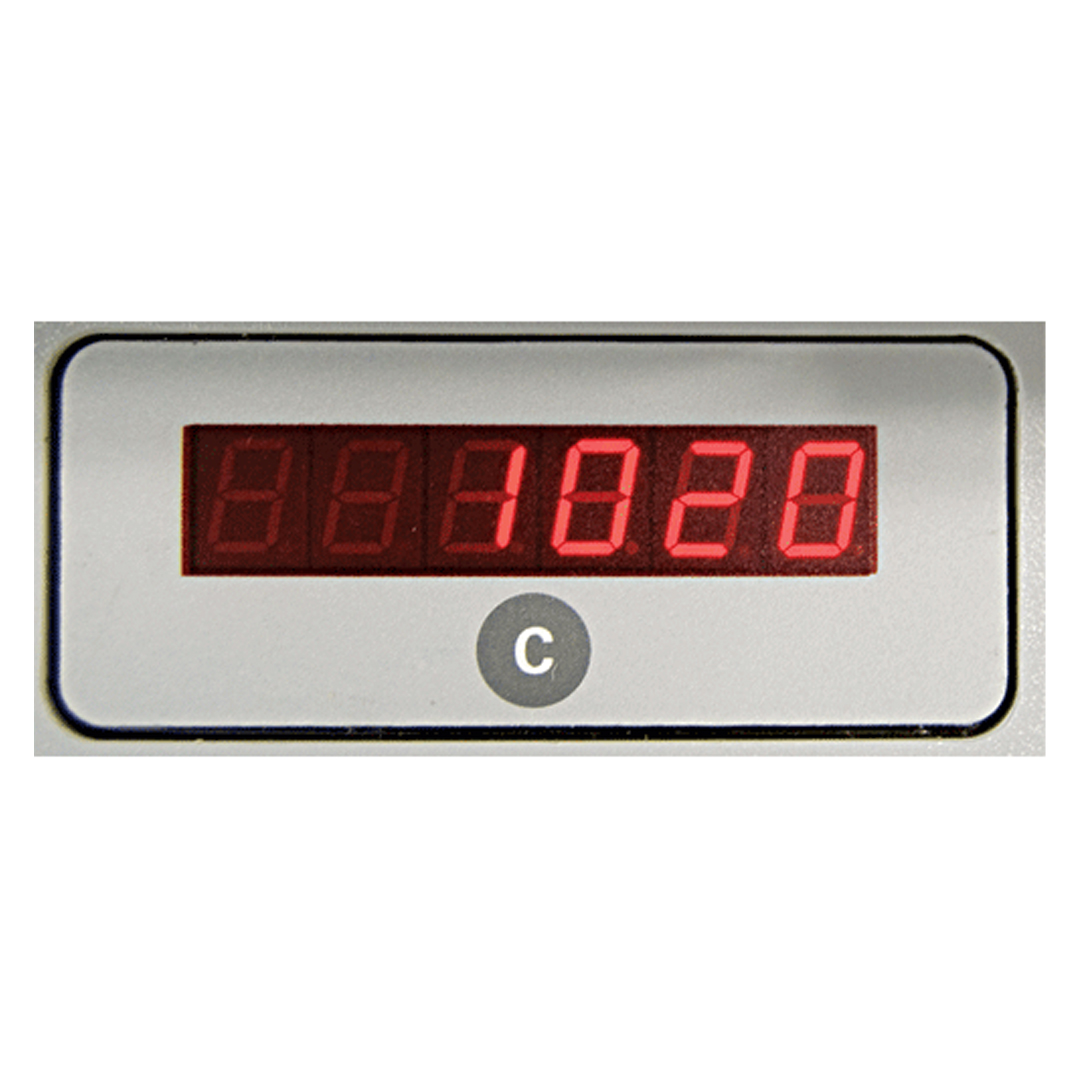

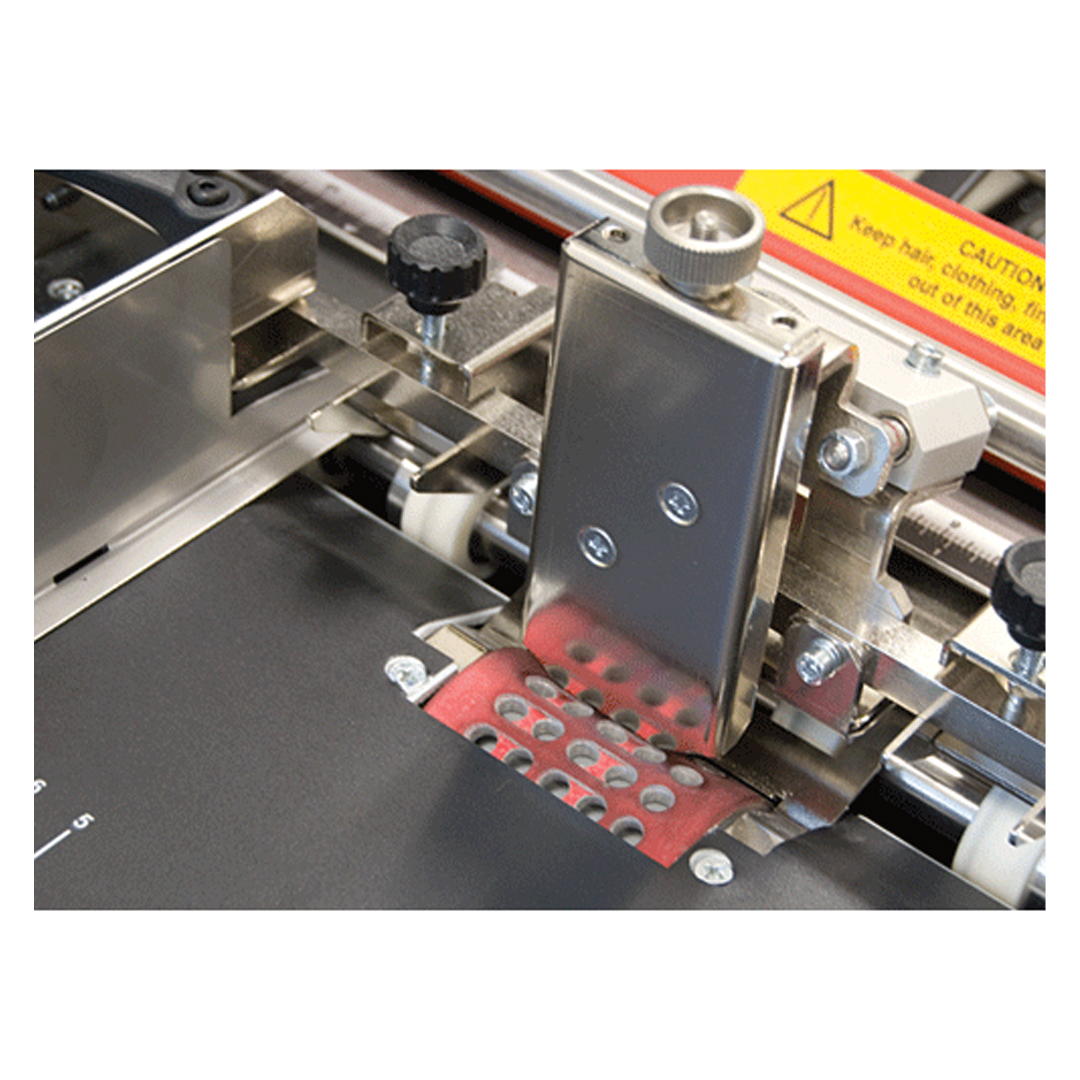

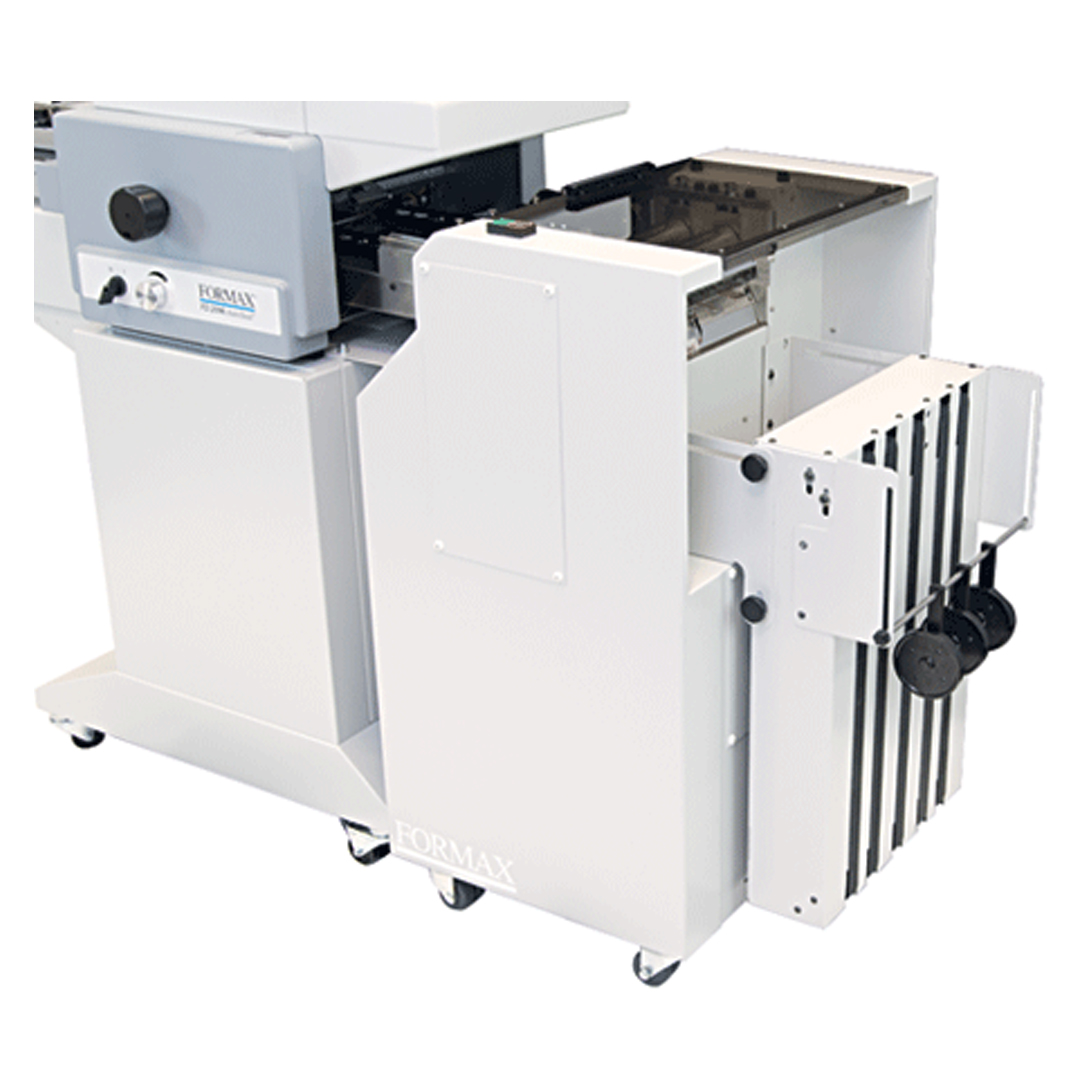

The Formax AutoSeal FD 2096 from Formax is a production-level pressure sealer that can process cut-sheet pressure seal forms at speeds up to 30,000 forms per hour. Featuring a bottom-suction air-feed system, the FD 2096 is capable of providing accurate feeding and allows users to continuously load forms, eliminating the amount of downtime between batches. Additionally, the AutoSeal FD 2096 features a resettable LED counter, locking casters, and a 24″ output conveyor that is able to be collapsed and stowed away.
For more information on the AutoSeal FD 2096, read the brochure.
| Hopper Capacity | Up to 350 sheets 24# |
|---|---|
| Variable Speed | Up to 30,000 forms per hour |
| Usage | Mid-Volume Production |
| Paper Size | Up to 12” wide, up to 17” long |
| Dimensions (Conveyor Extended) | 86” L x 28” W x 42” H |
| Dimensions (Conveyor Closed) | 64” L x 28” W x 42” H |
| Weight | 450 lbs |
| Power | 120V 60Hz, 30Amp, single phase |
| Power Plug | NEMA L5-30P |
