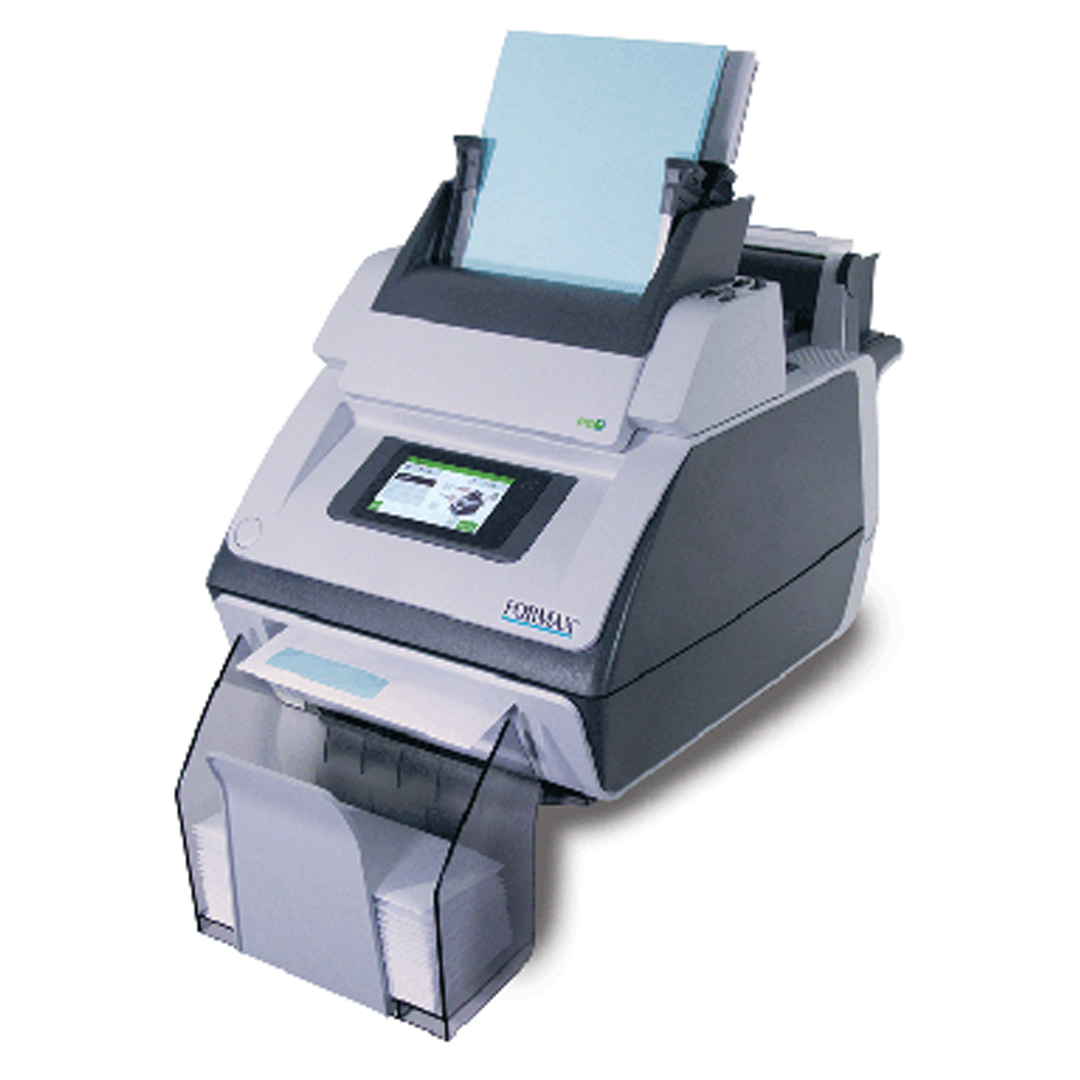

Specifications – Formax FD 6104 Inserter
For more information on the FD 6104 Inserter, read the brochure.
| Hopper Capacity | Up to 100 sheets in each sheet feeder (20#) |
|---|---|
| Up to 100 inserts/BREs in the insert feeder | |
| Up to 100 outgoing envelopes | |
| Fixed Speed | Up to 1,350 pieces per hour |
| Duty Cycle | Up to 5,000 pieces per month |
| Folding Capacity | Up to 5 sheets at once |
| Programmable Jobs | Up to 15 |
| Paper Size | 5.6” – 8.9″ W x 7” – 14” H |
| Paper Weight | 18 – 30 lbs (68 – 113gsm) |
| Insert/BRE Size | 5.6” – 8.9” W x 3.5” – 5.9” H |
| Insert Weight | 20 – 62 lbs (75 – 233gsm) |
| BRE Weight | 19 – 30 lbs (71 – 113gsm) |
| Outgoing Envelope Size | 8.8” – 9.5” W x 4.1” – 6” H |
| Dimensions w/o catch tray | 26” L x 17” W x 22” H |
| Weight | 82 lbs |
| Voltage | 120 Volts AC 50/60Hz |
| Safety Certifications | UL approved |
