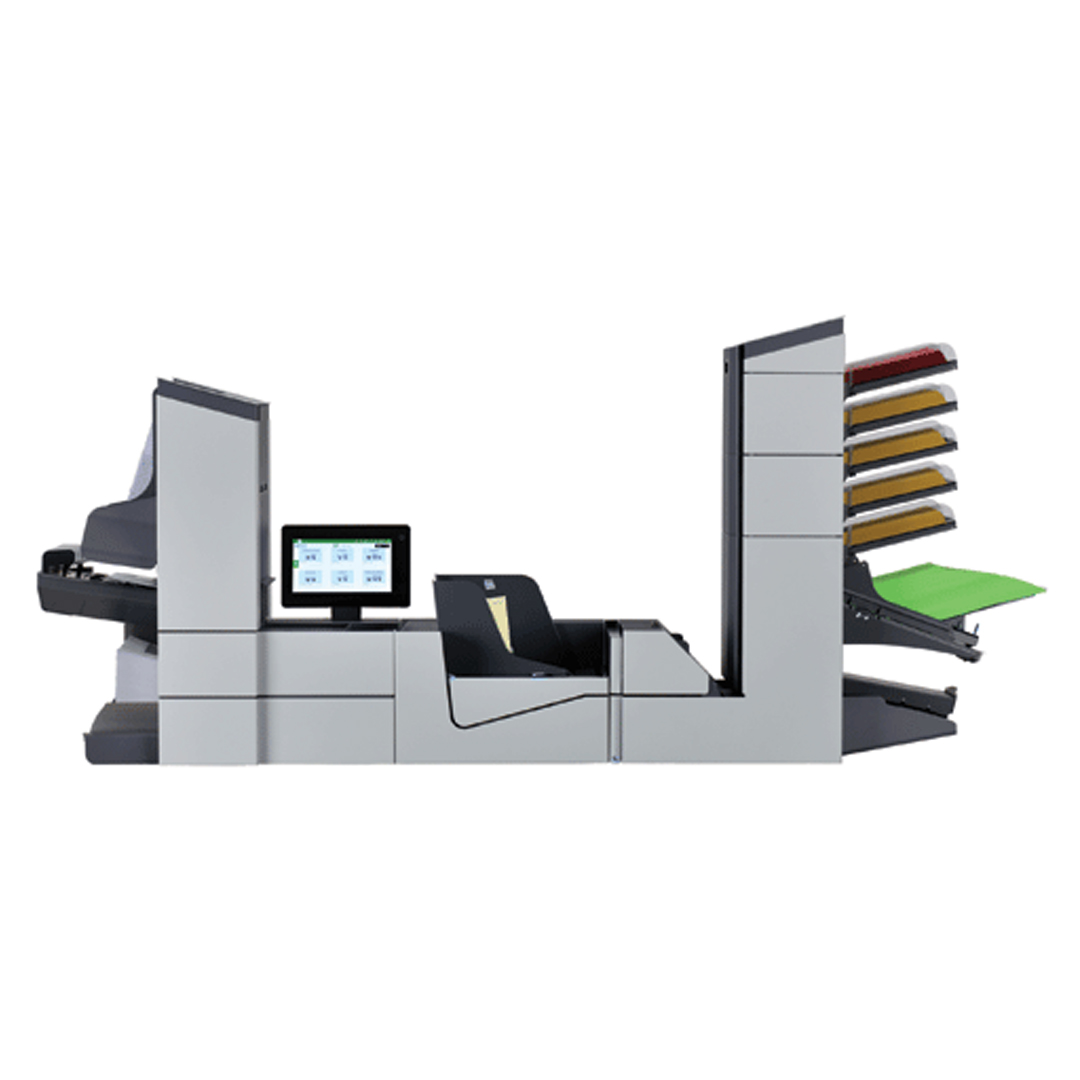

Specifications – Formax FD 6608 Inserter
For more information on the FD 6608 Inserter, read the brochure.

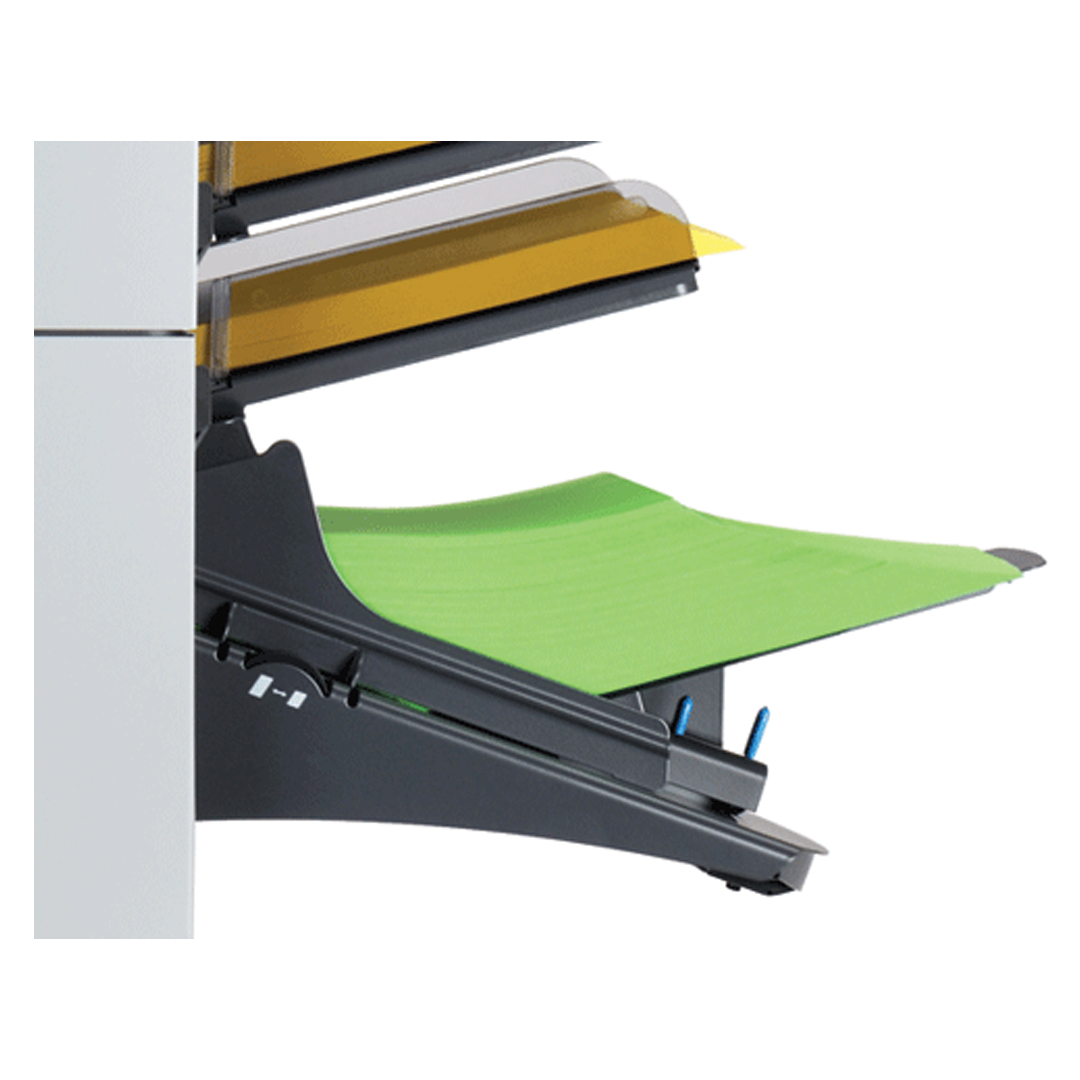

| Feeder Capacity | Up to 325 sheets, 20# paper (each feeder) / 725 (Production Feeder) |
|---|---|
| Envelope Hopper Capacity | Up to 500 envelopes, top-loading |

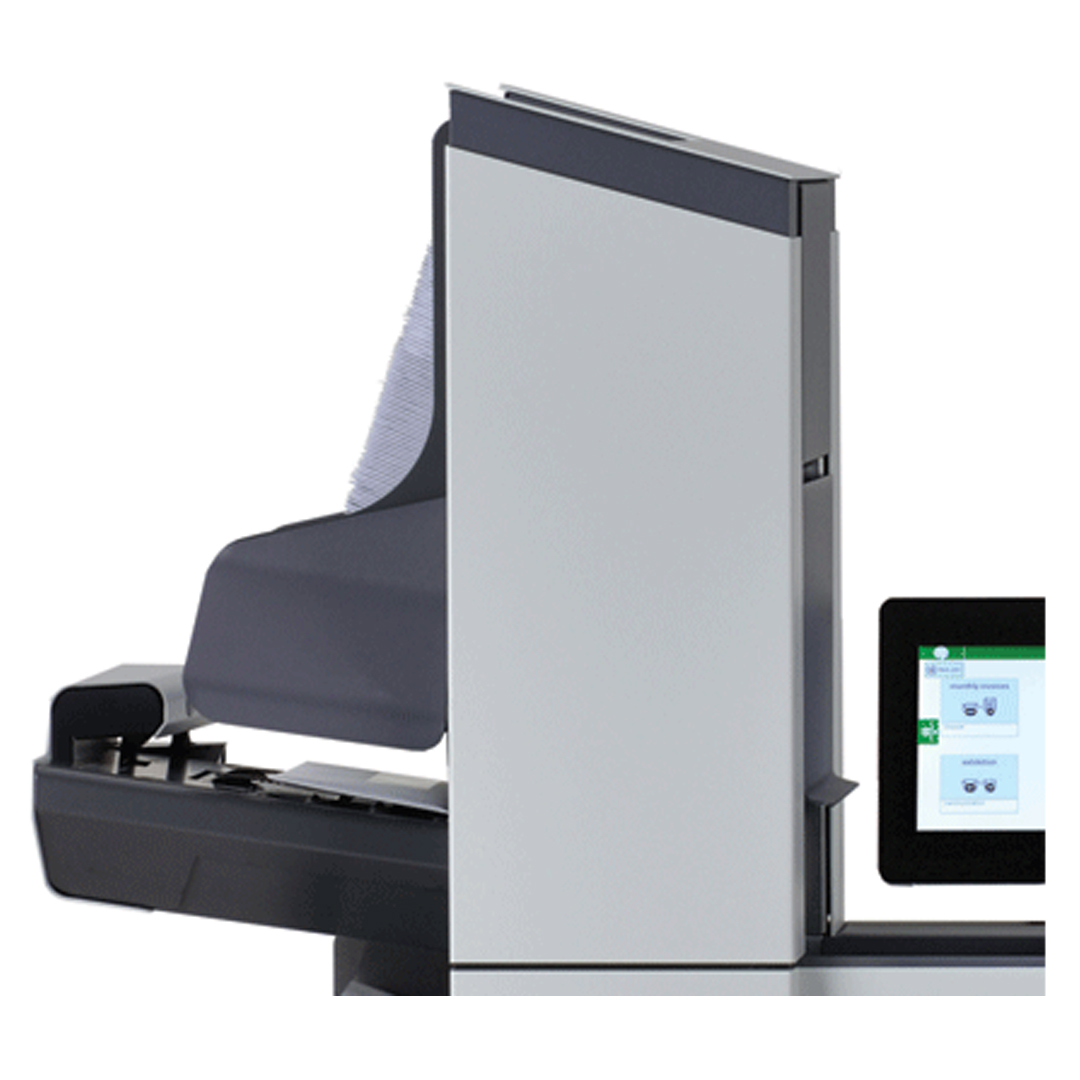

| Vertical Output Stacker | Up to 500 filled envelopes, reverse stacking output |
| Side Exit Tray (optional) | Up to 500 filled envelopes |
| Speed | Up to 4,300 pieces per hour, #10 envelopes |
| Duty Cycle | Up to 80,000 pieces per month |
| Programmable Jobs | Up to 50 |
| Paper Size | 3.5” – 14” L x 5.1” – 9” W |
| Envelope Size | 6.3” – 9.7” L x 3.5” – 6.3” W |
| Dimensions With 1 Thin Booklet Feeder | 60” L x 31” H x 18” D (four-station models) |
| 79” L x 31” H x 18” D (four-station models) | |
| Weight | Approx. 242 lbs (four-station) |
| Voltage | 110V/120V AC 50/60Hz |
| Safety Certifications | UL, CE approved |
