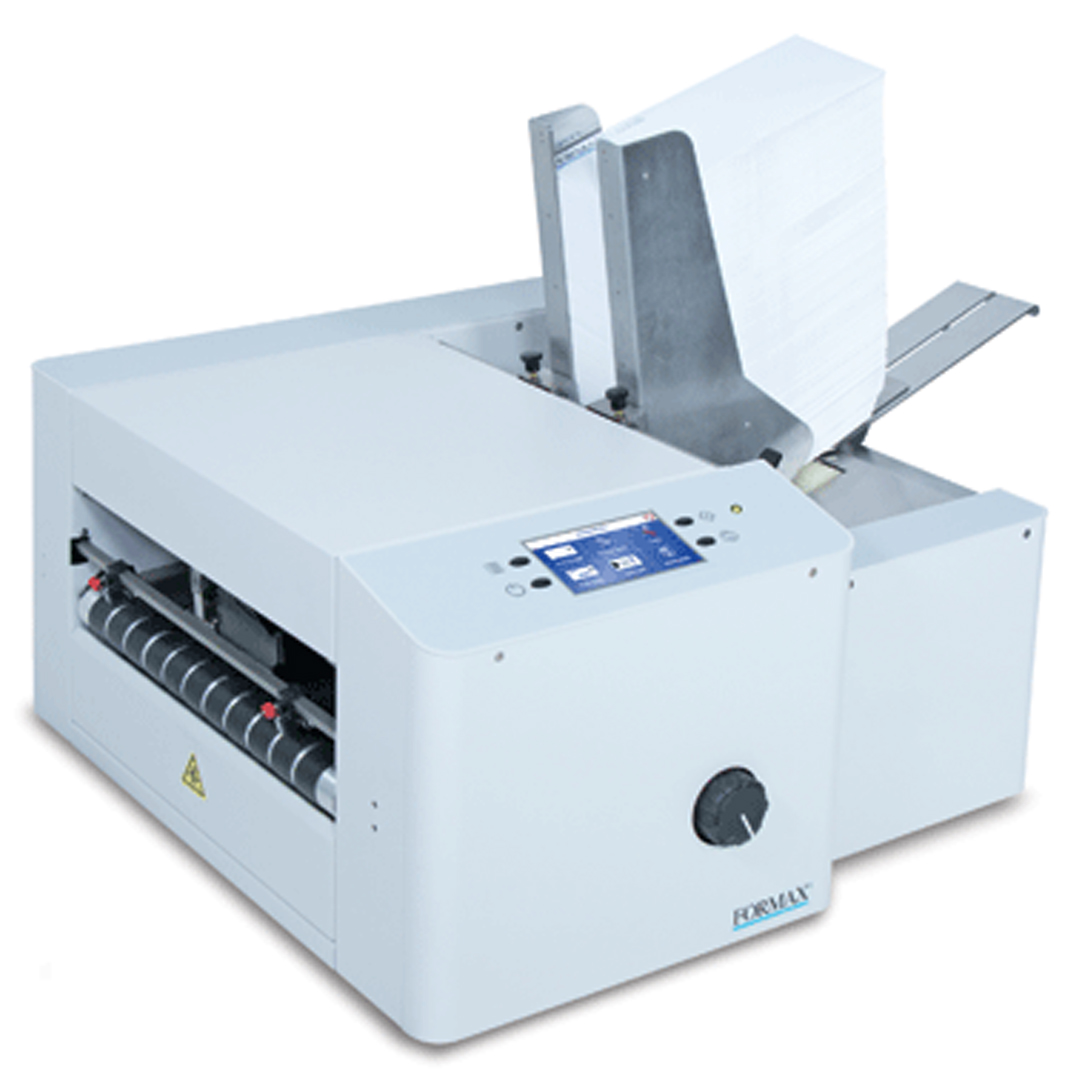

Specifications – Formax AP3 Monochrome Digital Address Printer
For more information on the AP3 Monochrome Digital Address Printer, read the brochure.
| Print Technology | Thermal inkjet, 6 high capacity cartridges |
|---|---|
| Addressing Speed | Up to 26,000 #10 envelopes/hour |
| Up to 34,000 postcards/hour | |
| Print Quality | Up to 600 x 600 DPI |
| Imaging Area | Up to 3” x 17” |
| Material Size | Min: 5” L x 3” W |
| Max: 15” L x 13.5” W | |
| Material Thickness | Up to 9.5mm / 3/8” |
| Duty Cycle | Up to 1,000,000 per month |
| Memory | Up to 16GB |
| Counters | Batch, job, lifetime |

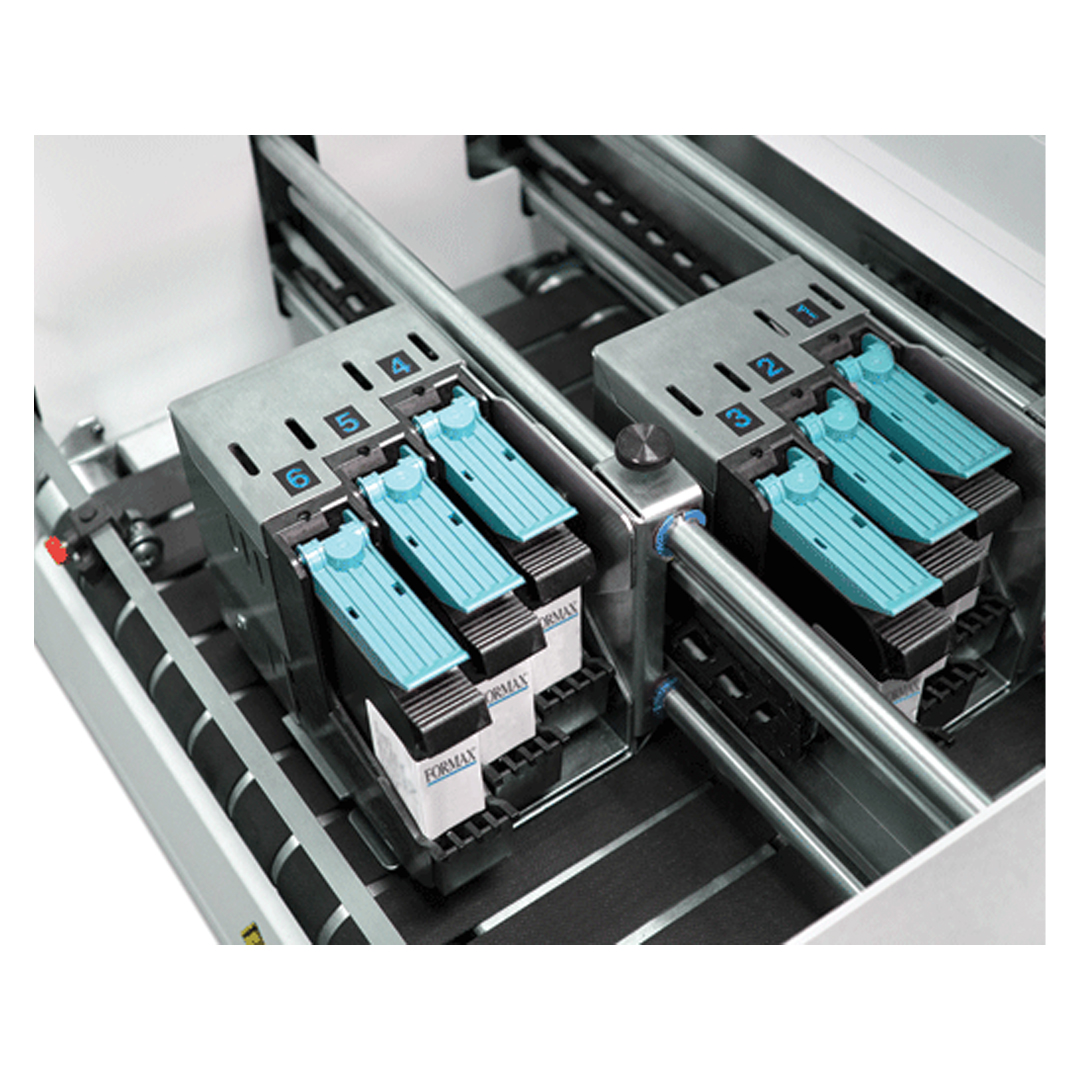

| Print Head Layout | 3-pen stitched + 3-pen stitched design |
| Fonts | All TrueType fonts available on PC |
| Ink Monitor | Intelligent cartridge tracking |

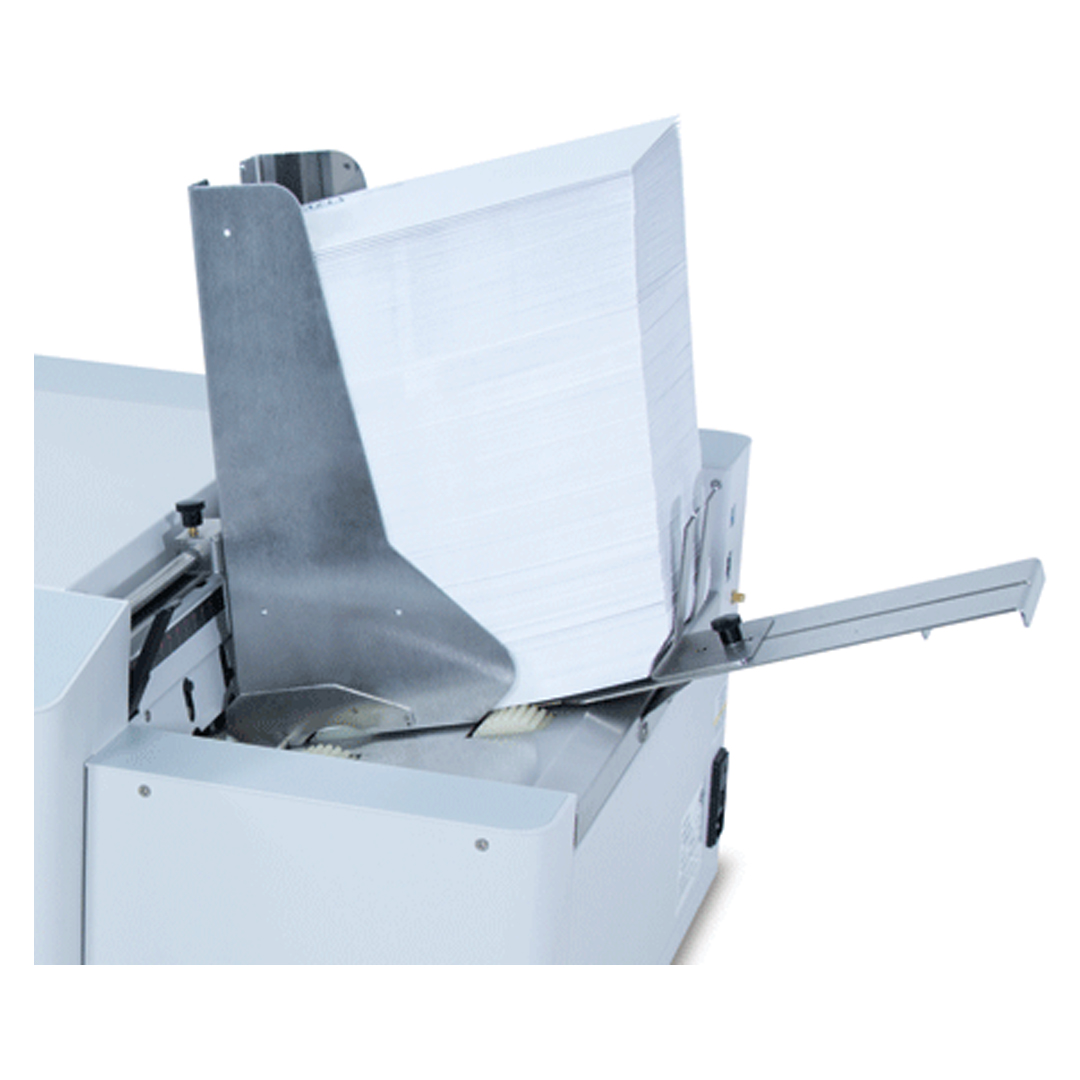

| Feeder Capacity | Up to 500 #10 envelopes |
| Print Orientation | Right to left |
| Software | Drivers for Windows 7 and higher |
| PC Interface | USB 3.0, Ethernet |
| Diagnostics | Built into firmware |
| Dimensions | 29” L x 23” D x 21” H |
| Weight | 80 lbs. |
| Power | 115VAC 50/60 Hz |
