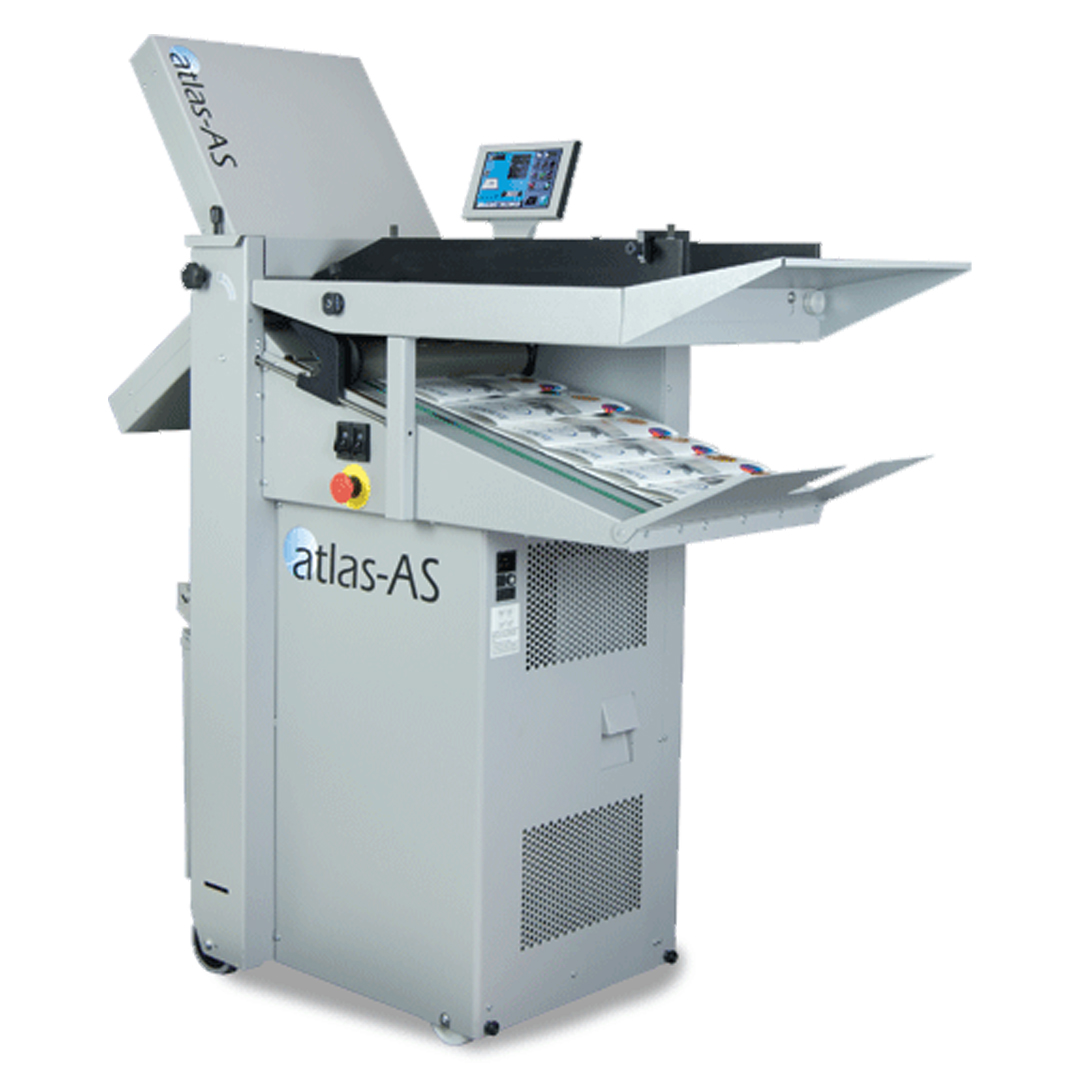

Specifications – Formax Atlas-AS Air-Feed Document Folder
For more information on the Atlas-AS Air-Feed Document Folder, read the brochure.
| Speed | Up to 27,500 per hour |
|---|---|
| Hopper Capacity | Up to 500 sheets, 22# bond |
| Pre-Set Folds | Pre-programmed for C, V, Z, Gate, Fold Out and Double Parallel |
| Paper Sizes | Min: 6.2” L x 5.5” W (3.7” with optional narrow sheet attachment) |
| Max: 26.5” L x 14.3” W | |
| Paper Weight | Min: 16# bond |
| Max: 90# cover (variable, based on material and grain direction) | |
| Programmable jobs | Unlimited |
| Dimensions | 48.8” L x 21.8” D x 54” H |
| Weight | 265 lbs |
| Power | 220V, 60Hz, 15A, NEMA 6-15P |
