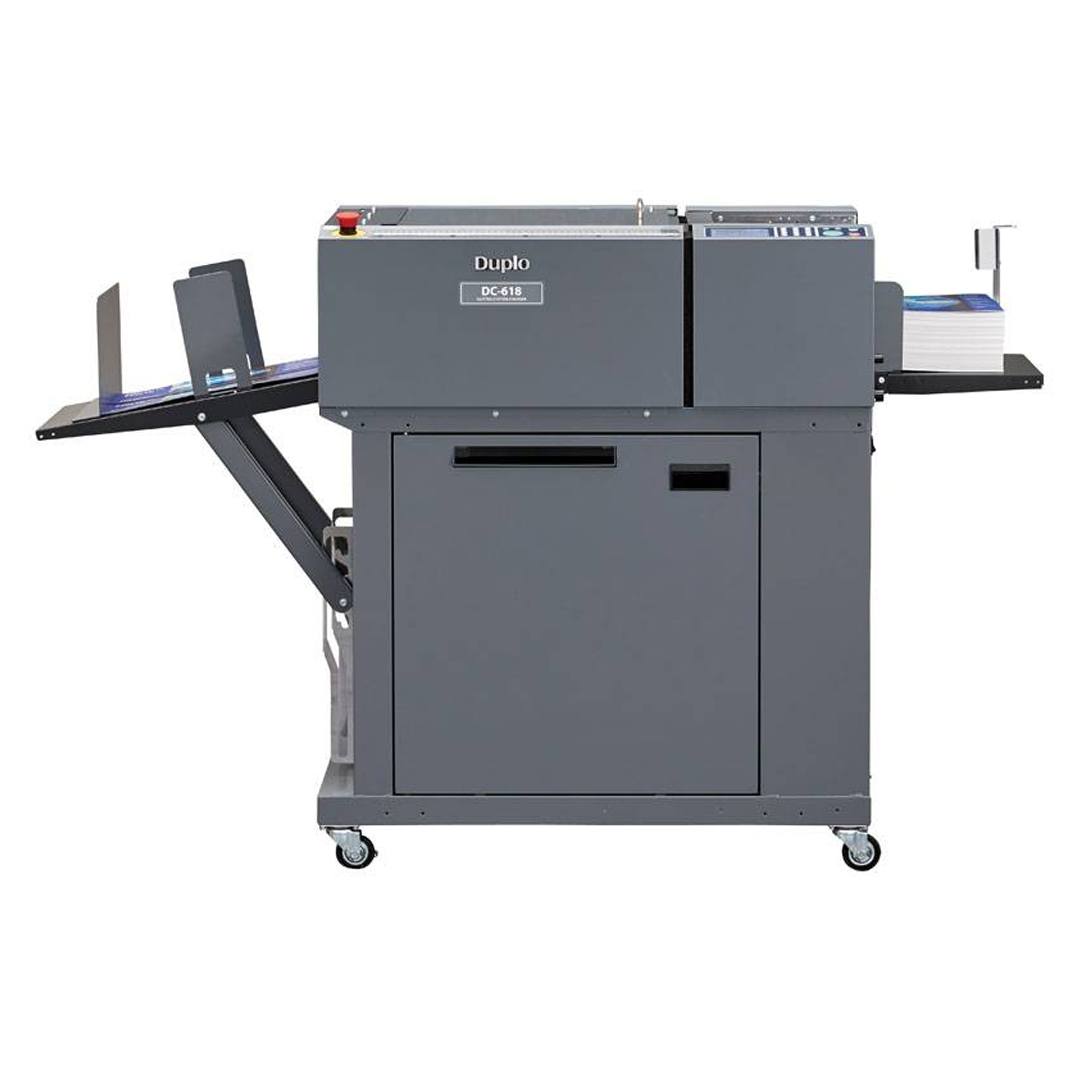

Specifications – Duplo DC-618 Slitter/Cutter/Creaser
For more information on the Duplo DC-618 Slitter/Cutter/Creaser, view the brochure.
| SPEED | Up to 23 pages per minute (8.5″x 11″ 2 cuts,1 crease and CCD scanner off) |
|---|---|
| INPUT PAPER SIZE | 8.26” x 8.26” to 13” x 39.3” (210 mm x 210 mm to 330.5 mm x 1,000 mm) |
| MIN. FINISHED SIZE | 1.89” x 1.97” (48 mm x 50 mm) |
| TOLERANCE | ± 0.3 mm business cards; ± 0.2 mm on programmed position |
| FEEDER CAPACITY | 3.9” (100 mm) |
| PAPER WEIGHT | 110 – 400 gsm |
| SLITS | Up to 6 per sheet |
| CUTS | Up to 30 per sheet |
| CREASES | Up to 20 per sheet |
| MEMORY | 250 jobs using the control panel |
| STANDARD FEATURES | Air knife, card stacker, fan registration, automatic gutter slit deflectors, crease depth and width adjustment, ultrasonic double feed detection sensor, feed skew adjustment, batch separation, waste box, emergency stop switch, CCD scanner, PC Controller software, PC pole mount, long paper tray, LCD color touchscreen panel |

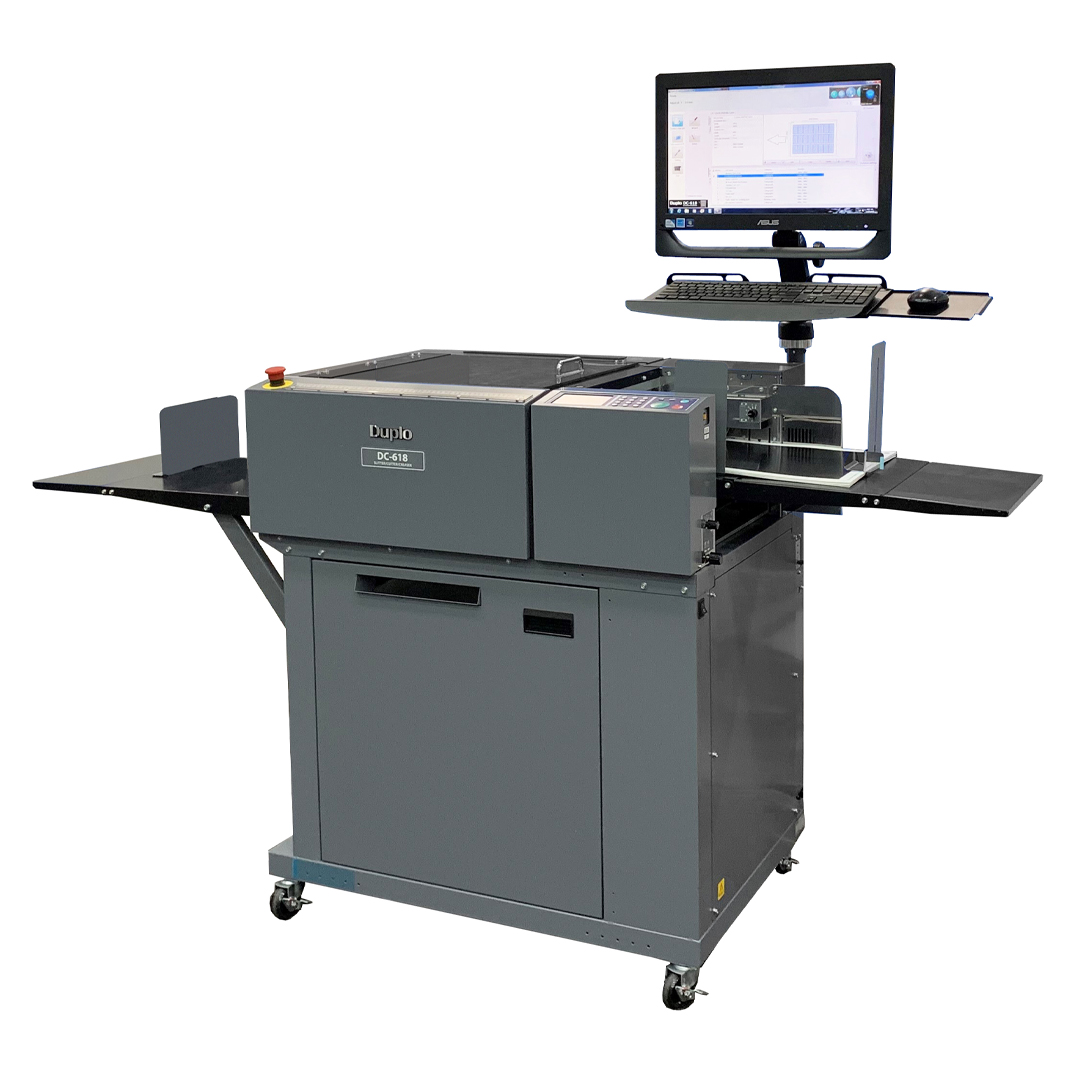

| OPTIONS | PC and PC Arm, side air kit, 48” long conveyor stacker, and TF375 PLUS In-Line Folder |
| PFM-04 Manual Perforation Module includes 2 perforation manually adjustable tools. | |
| RTM-08 Rotary Tool Module includes 2 each of perforation, micro-perforation, and scoring tools. | |
| Up to 2 RTM-08s can be installed in the unit at one time, replacing slitter modules. The OMK-13/14 Motor Kits must be installed when using both. | |
| CPM-08 Cross Perforation Module includes 1 each of perforation and micro-perforation tools. | |
| The OMK-13 Motor Kit must be installed when using only one RTM-08 or CPM-08 module. | |
| The OMK-13/14 Motor Kits must be installed when the RTM-08 and CPM-08 are being used together. | |
| POWER REQUIREMENTS | 115V: 2.3A, 60Hz |
| DIMENSIONS (WxDxH) | 67″ x 32″ x 44″ (1,690 mm x 810 mm x 1,125 mm) |
| NET WEIGHT | 375 lb. (170 kg) |
