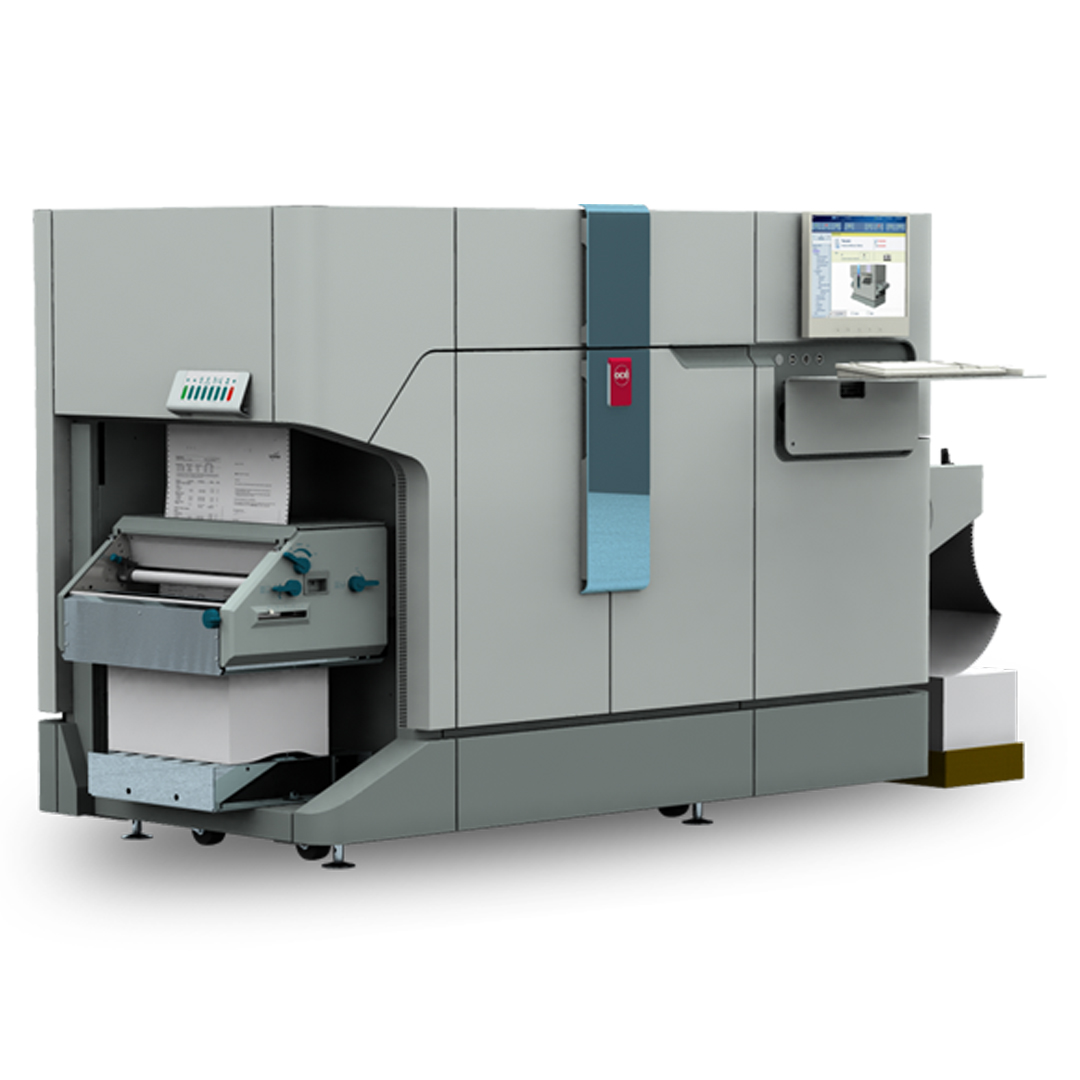

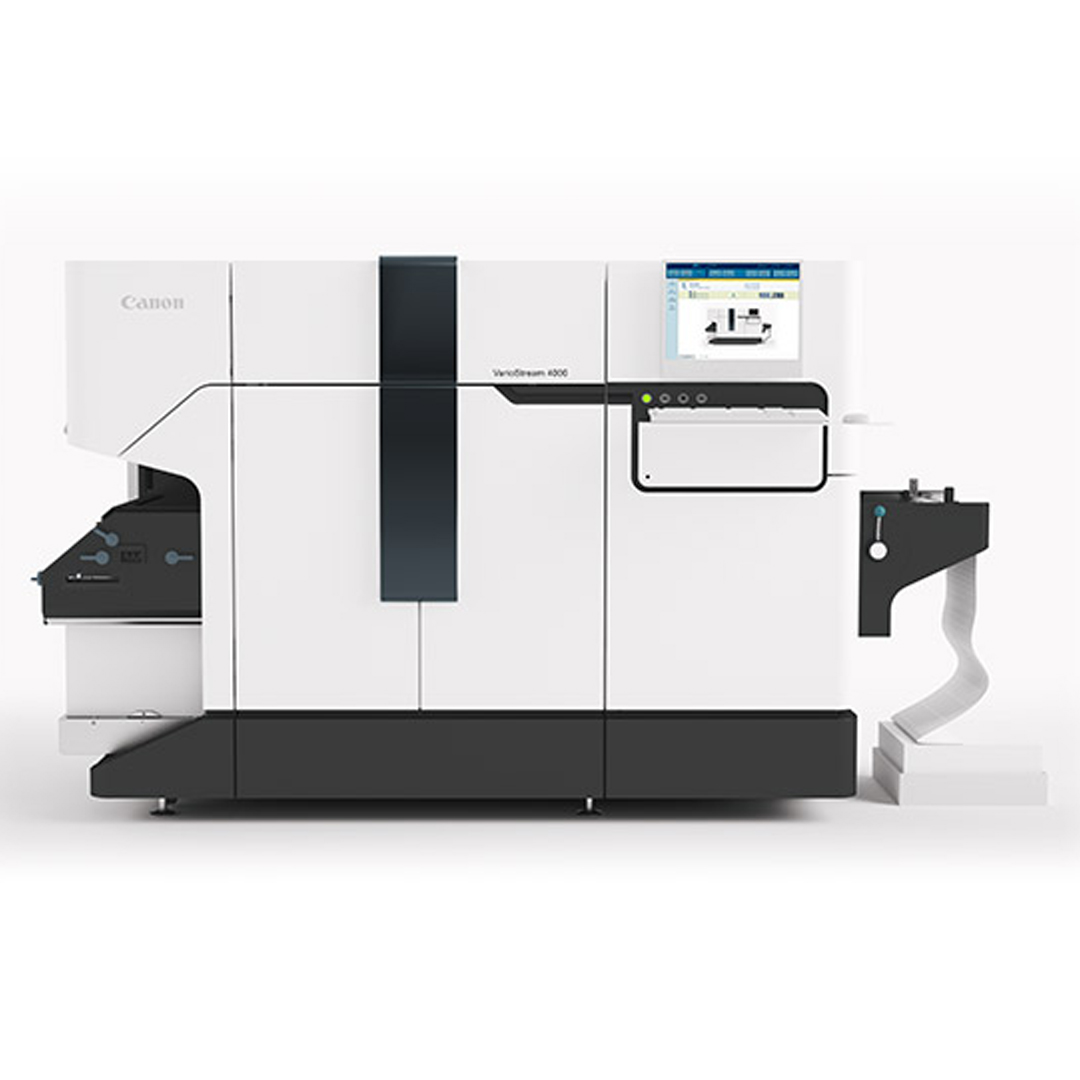

Specifications – Canon VarioStream 4000
For more information on the Canon VarioStream 4000, view the brochure.
| TECHNOLOGY | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRINT TECHNOLOGY | Two-component dry toner electrophotography with LED imaging technology | ||||||||
| FUSHING TECHNOLOGY | Heat and pressure fusing | ||||||||
| FUNCTIONALITY | Continuous feed simplex or duplex | ||||||||
| OPERATING | Océ look and feel user interface | ||||||||
| PAPER INPUT | Fan-folded boxed paper or roll with unwinder | ||||||||
| PAPER OUTPUT | Optional integrated stacker, or roll rewinder, cut/stack, folder via a Type 1 interface | ||||||||
| PRINT RESOLUTION | 600 x 600 dpi | ||||||||
| PAPER | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PAPER TRANSPORT | Pinless | Tractor | |||||||
| PRINT WIDTH | Max. 18.25″ (463.5 mm) | Max. 17″ (431.8 mm) | |||||||
| PAGE LENGTH | 3-28″ (76.2-711.2 mm) | 3 – 28″ (76.2 – 711.2 mm) | |||||||
| PAPER WIDTH | 6.5 – 19″ (165 – 482.6 mm) | 6.5 – 18″ (165 – 457.2 mm) | |||||||
| PAPER WEIGHT | 50 – 160 gr/m², 35 – 49 gr/m² on Océ specified papers and configurations | 70 – 160 gr/m² | |||||||
| SUBSTRATES | Single layer continuous forms with or without tractor feed margins, perforated, colored or preprinted. Single layer continuous forms with tractor feed margins, perforated, colored or preprinted. | ||||||||
| ENVIRONMENTAL | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| TEMPERATURE | Optimal range 59 – 82°, limited to 50 – 86° | ||||||||
| REL. HUMIDITY | Optimal range 40 – 60%, limited range 10 – 80% | ||||||||
| ABS. HUMIDITY | Optimal range 2-22 g/m³, limited range 1-25 g/m³ | ||||||||
| AIR PRESSURE | Optimal range 840 -1,060 hPa, limited range 740 – 1,060 hPa | ||||||||
| OPERATING NOISE | Maximum 68 dB (stand-by 56 dB) | ||||||||
| WORKFLOW | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| CONTROLLER | Server based SRA Controller | ||||||||
| NATIVE PRINTER CODES | AFP/IPDS (IS/3), PCL 6 | ||||||||
| PRINTER MANAGER (OPTIONAL) | Océ PRISMAproduction® / Océ PRISMAspool® | ||||||||
| CONNECTIVITY | Gigabit Ethernet (copper or optic) | ||||||||
| PHYSICAL DATA | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| DIMENSIONS | L 107″ x W 57″ x H 61.5″ | ||||||||
| WEIGHT | 2,889 lbs. | ||||||||
| STANDARD FEATURES | OPTIONS |
|---|---|
| • Operation in duplex and simplex mode • Enhanced print quality for industry leading imaging quality and productivity • Intuitive operating with touchscreen • Single point of operation • Type 1 interface for pre & post processing devices • Speed switch to lower printing speed for special applications and pre & post adaptions • Second interface • Second printer code | • MICR functionality • Power-stacker (up to 16″ paper length) • Additional Quick-Change Developer Station (QCDS) |
| VARIANT SPECIFIC VALUES | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Single/Twin | VarioStream 4200 | VarioStream 4300 | VarioStream 4400 | VarioStream 4450 | VarioStream 4550 | VarioStream 4650 | |||
| Letter- 2up | Ppm | 190/380 | 275/550 | 371/742 | 467/934 | 530/1060 | 636/1272 | ||
| Speed | Ft/min | 88 | 126 | 170 | 214 | 243 | 292 | ||
| Duty cycle per month (1 shift / 3 shifts) | Million letter 2-up | 1-6 / 3-13 | 2-9 / 4-18 | 3-12 / 5-24 | 3-15 / 7-30 | 4-17 / 8-35 | 4-17 / 8-35 | ||
| ELECTRICAL VALUES | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Voltage 60Hz | V | 200/208 ±10% | 200/208 ±10% | 200/208 ±10% | 200/208 ±10% | 200/208 ±10% | 200/208 ±10% | ||
| POWER CONSUMPTION (Standby values in brackets) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Real Pw | kW | 7.2 (1.9) | 7.9 (1.9) | 9 (2.0) | 10.3 (2.0) | 11.5 (2.1) | 13.0 (2.1) | ||
| Apparent Ps | kVA | 7.7 (2.3) | 8.4 (2.3) | 9.6 (2.6)
| 10.9 (2.6) | 12.1 (2.9) | 13.7 (2.9) | ||
| Heat output Q | kJ/H | 25,880 (6,200) | 28,440 (6,200) | 32,400 (6,500) | 37,080 (6,500) | 41,400 (6,800) | 46,800 (6,800) | ||
