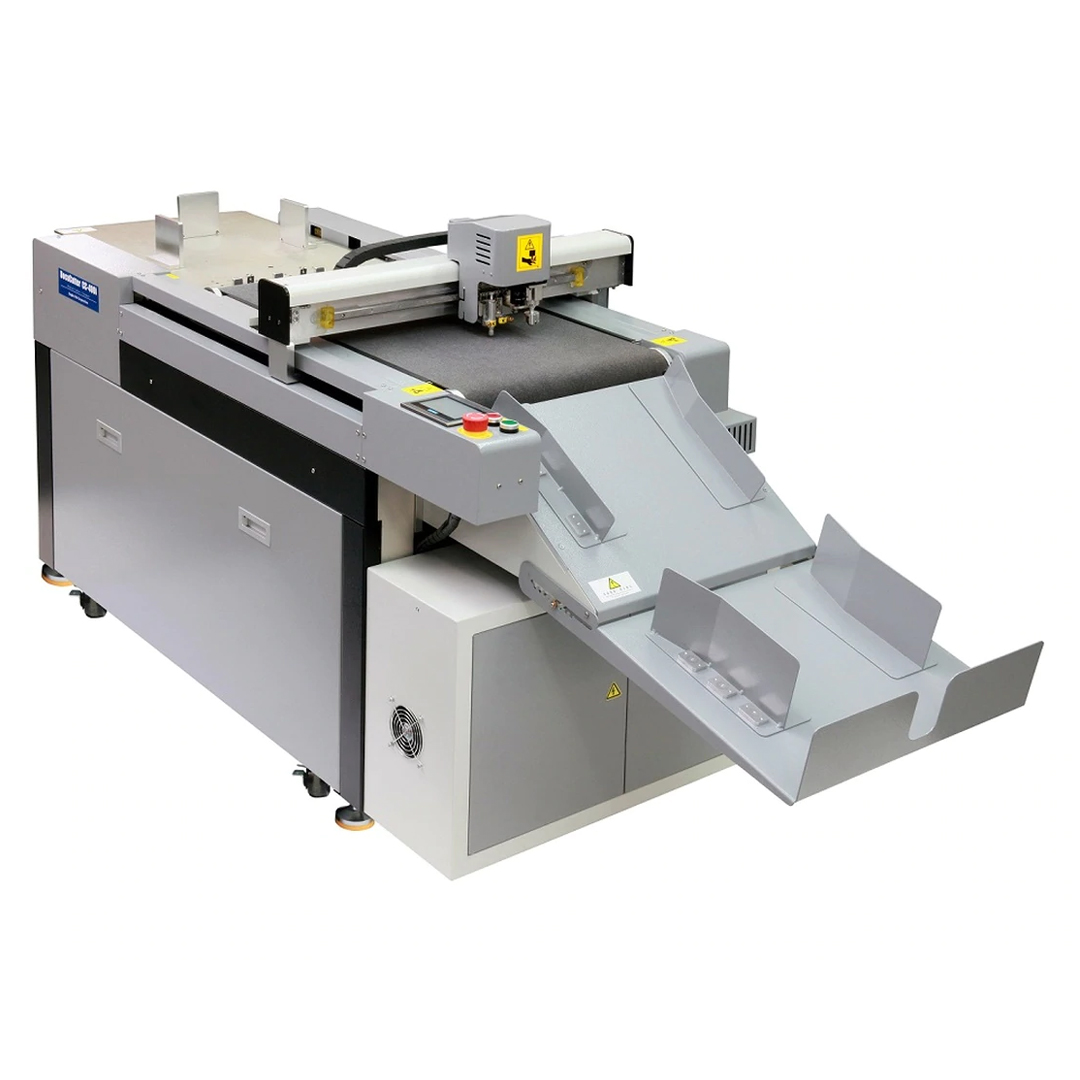

Specifications – Duplo DPC-400 Digital Die Cutter
For more information on the Duplo DPC-400 Digital Die Cutter, view the brochure.
| AUTO FEED | |
|---|---|
| FEEDER CAPACITY | Up to 3.9” (10 cm) |
| SHEET SEPARATION | Air powered, variable jet stream separation |
| FEEDING SYSTEM | Vacuum feed with clamps mounted on gantry |
| MIN. SHEET SIZE | 8.5″ x 11″ |
| MAX. SHEET SIZE | 14″ x 20″ |
| PAPER WEIGHT | 200 – 400 gsm |
| MANUAL FEED | |
|---|---|
| MIN. SHEET SIZE | 8.5″ x 11″ |
| MAX. SHEET SIZE | 15″x 23″ |
| PAPER WEIGHT | 75 – 600 gsm |
| CUTTING CONTROL | |
|---|---|
| TOOLS | Cut through knife, kiss cut knife, scoring wheel |
| CUTTING SYSTEM | Digital signal platform |
| BLADE | Tungsten steel |
| PRODUCTIVITY | 30 – 45 seconds per 14″x 20″ sheet (depending on design complexity) |
| MAX. CUTTING SPEED | 1,000 mm/second |
| CUTTING THICKNESS | Up to 1.5 mm |
| CUTTING TOLERANCE | ±0.1 mm |
| SOFTWARE AND CONNECTION | |
|---|---|
| SOFTWARE (PLATFORM) | DPC Controller (Requires PC with Windows 10 or 7, i3 Processor or higher, 4GB Ram or more, 1 Ethernet port, 1 available PCIe 1X or 16X) |
| FILE FORMAT | PLT, DXF, XML, HPG |
| NETWORK | LAN |
| GENERAL | |
|---|---|
| STANDARD FEATURES | CCD camera registration system, 5 tools (J201 cutting knife, J202 cutting knife, J206 cutting knife, J208 cutting knife, and J380 scoring wheel), DPC Controller software (PC sold separately), and air compressor |
| POWER REQUIREMENTS | 220V 50/60Hz 20A, 4KW |
| DIMENSIONS (LxWxH) | Machine: 88.6” x 31.5” x 43.3” (2,250 mm x 800 mm x 1,100 mm) |
| Shipping: 87” x 40” x 51” (2,210 mm x 1,016 mm x 1,295 mm) | |
| WEIGHT | Machine: 915 lbs. / Shipping: 997 lbs. |
