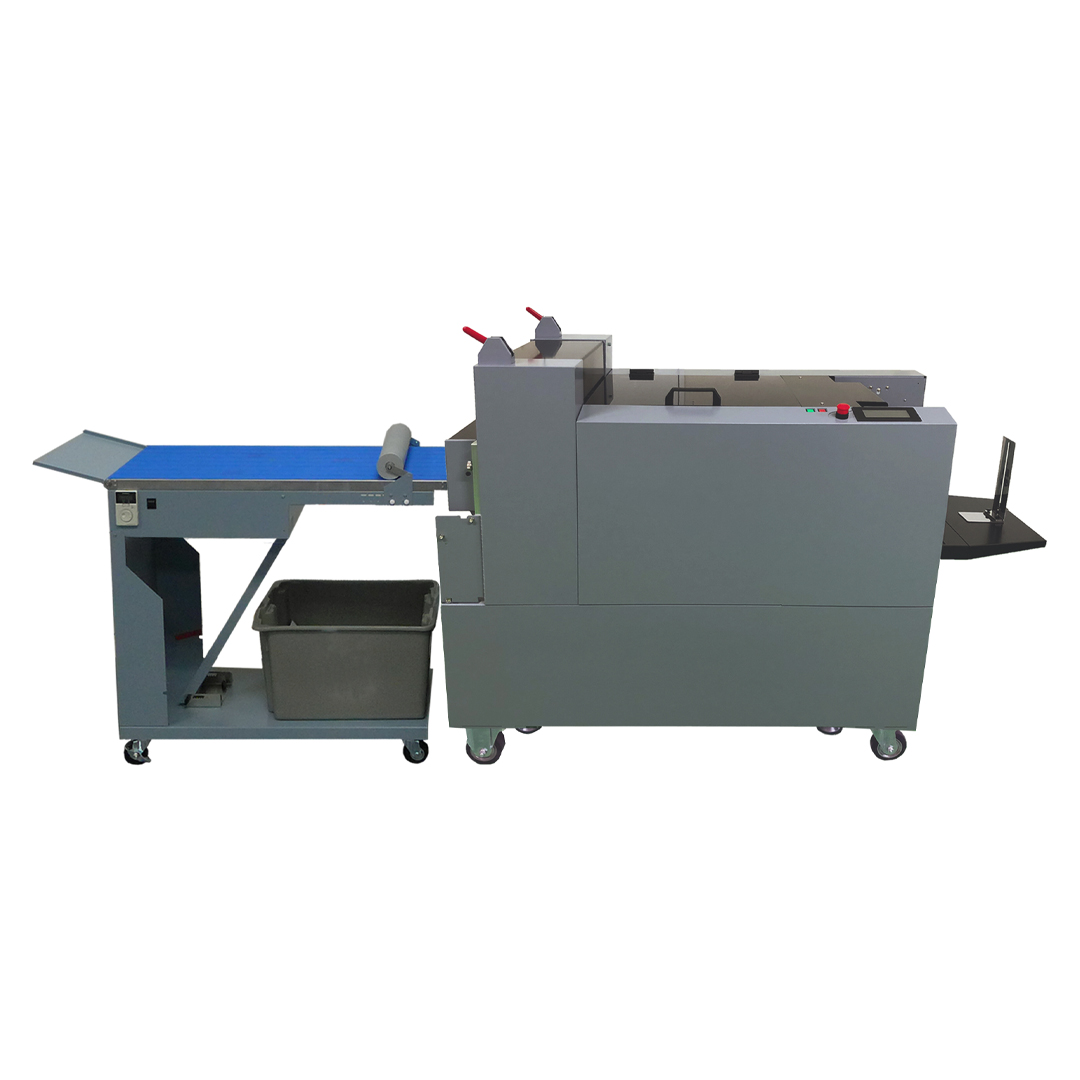

Specifications – Duplo UD-310 Rotary Die Cutter
For more information on the Duplo UD-310 Rotary Die Cutter, view the brochure.
| PAPER SIZE | Minimum: 8.267” x 11.693” (219 mm x 297 mm) |
|---|---|
| Maximum: 15.35” x 20.47” (390 mm x 520 mm) | |
| PAPER WEIGHT | Minimum: 106 gsm/ 28lb. bond/ 6 point/ 0.0058”/ 0.15 mm |
| Maximum: 400 gsm/ 130 lb. cover/ 18 point/ 0.015”/ 0.4 mm | |
| With Separator: Minimum 200 gsm | |
| SPEED | 3-Step Speed Adjustment: |
| High: 8,000 rotations – up to 4,000 sheets/hr | |
| Medium: 5,400 rotations – up to 2,700 sheets/hr | |
| Low: 2,700 rotations – up to 1,350 sheets/hr | |
| TOLERANCE | ±0.2 mm |
| FEED SYSTEM | Air Suction, Top Belt Feeder |
| FEEDER CAPACITY | Up to 8.7” (220 mm) |
| SUBSTRATES | Paper, laminates, adhesives and synthetic stocks up to 400 gsm |
| POWER | AC 110-115V 50/60 Hz. 5 Amps |
| DIMENSIONS (LxWxH) | 81.10” x 27.17” x 46.85” (2,060 mm x 690 mm x 1,190 mm) |
| with conveyor: 127” x 27.17” x 46.85” ( 3,226 mm x 690 mm x 1,190 mm) | |
| WEIGHT | 882 lb. (400 kg) |
