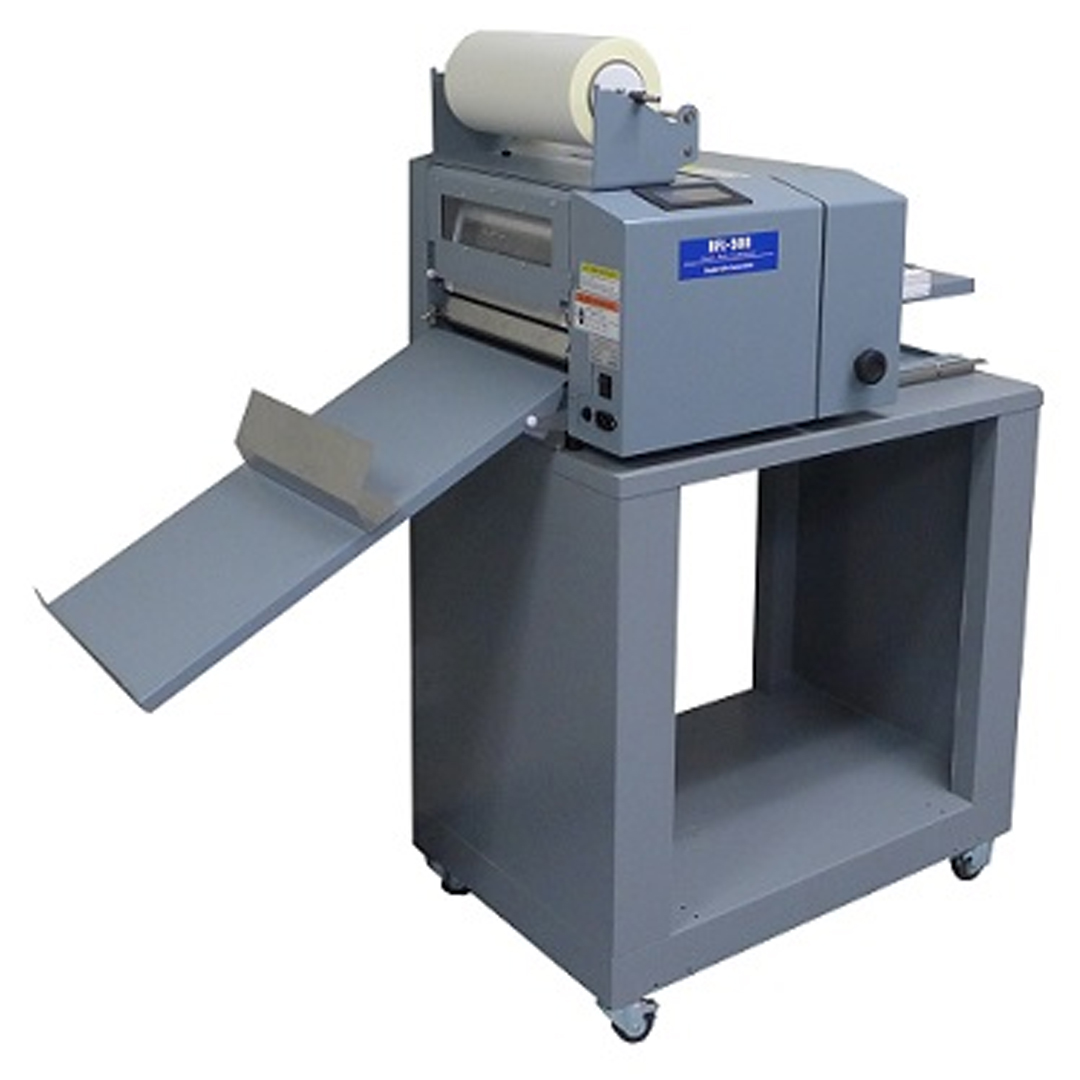

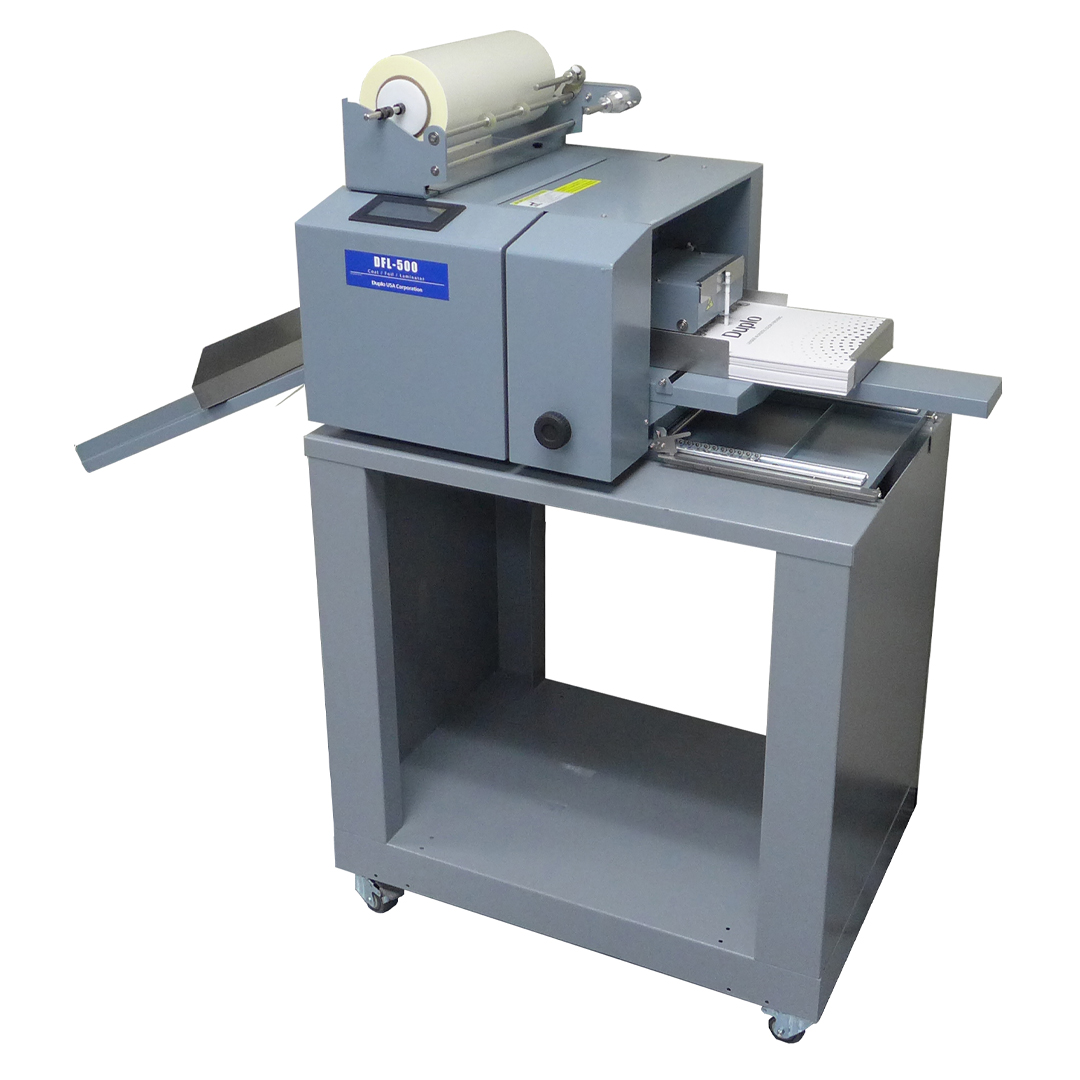

Specifications – Duplo DFL-500 Coat/Foil/Laminator
For more information on the Duplo DFL-500 Coat/Foil/Laminator, view the brochure.
| FEED SYSTEM | Upper belt air suction automatic feeder |
|---|---|
| COATING MECHANISM | Heat Roller System (194-320°F) |
| PAPER SIZE | Laminate: Min. 8.3” x 11.7” Max. 13”x 24” |
| Foil: Min. 5.8” x 8.3” Max. 13” x 24” | |
| PAPER WEIGHT | 110 – 400 gsm |
| SPEED | Max. 15 ppm |
| FUNCTIONS | Dry coating, foiling, and laminating |
| DIMENSIONS | 52” (W) x 22” (D) x 17” (H) |
| NET WEIGHT | 137 lbs. (62.1 Kgs) |
| POWER | 110-115 VAC 7 AMPS |
| FEATURES | Standard de-curler and dust remover |
