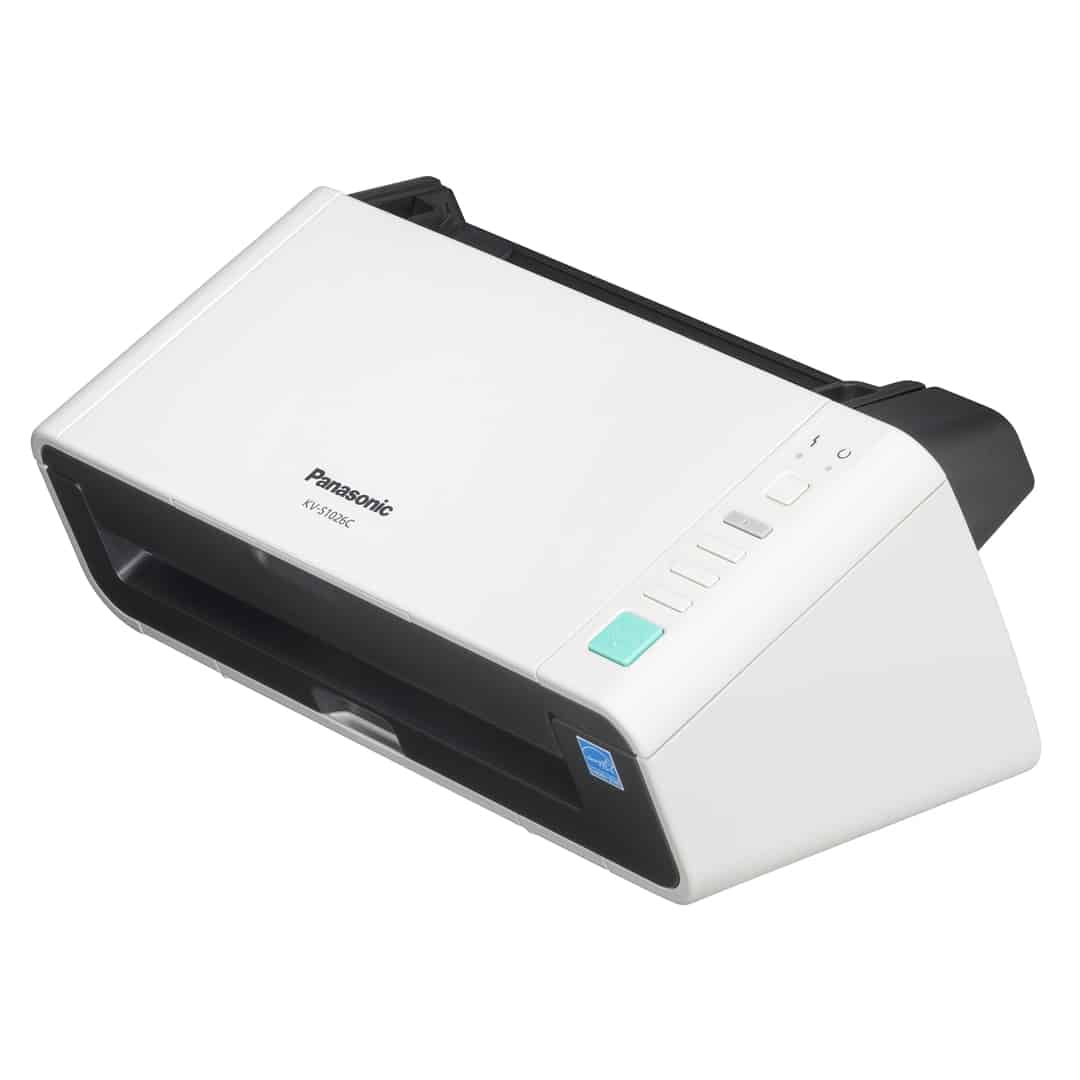

Specifications – Panasonic KV-S1026C-MK II Document Scanner
Learn more about the Panasonic KV-S1026C-MK II Document Scanner.
| SCANNING FACE | Duplex |
|---|---|
| SCANNING METHOD | Color CIS Background: Black |
| SCANNING RESOLUTION | 100 – 600 dpi (1 dpi step) and 1200dpi (software) |
| Optical: 300 dpi / 600 dpi | |
| SCANNING RESOLUTION | Simplex: Up to 30 ppm, Duplex: Up to 60 ipm |
| (Binary / Color, A4 or Letter, 200 / 300 dpi) | |
| AUTOMATIC DETECTION | Intelligent double feed detection used ultrasonic sensor |
| IMAGE OUTPUT | Binary 1-bit, Grayscale 8-bit, Color 24-bit, MultiStream (Color & Binary or Gray & Binary) |
| INTERNAL VIDEO PROCESSING | 1,024 levels (30 bit) |
| TONAL GRADATION | Binary, Grayscale, Color, MultiStream: Binary & Grayscale, Binary & Color |
| IMAGE COMPRESSION | MH, MMR, JPEG, JPEG2000 |
| BINARY MODE HALFTONE | Dither, Error Diffusion |
| IMAGE CONTROL | Auto preview, Auto rescan, Automatic Brightness Adjustment, Multi Color Drop Out, Dynamic Threshold, White Level From Paper, Image Emphasis, Gamma, Automatic Separation, Noise Reduction |
| OTHER FUNCTIONS | Length Control, Patchcode Detection (Type 2, 3, T), Control Sheet detection, Long Paper, Double Feed Skip |
| DOCUMENTS PAPER SIZE/THICKNESS/WEIGHT (WHEN 1 PAGE) | Size:1.9 in. x 2.1 in. (48 mm x 54 mm) – 8.54 in. x No limited (216 mm x No limited) |
| Thickness:0.04 mm – 0.5 mm (1.6 mils – 19.7 mils) | |
| Weight: 5.4 lbs. – 91 lbs. Bond (20 g/m2 – 413 g/m2) | |
| Note: 1 mil = 0.001 in. | |
| THICKNESS | Paper 0.04 – 0.5 mm (1.6 – 19.7 mils) |
| ISO Card 0.76 mm (29.9 miles) except for emboss | |
| 1.24 mm (48.8 miles) include emboss | |
| Note: 1 mil = 0.001 in. | |
| FEED TRAY CAPACITY | Up to 50 sheets: A6 to A4 or Letter size 21 lb. Bond (80 g/m2), new paper |
| SUPPORTED OPERATING SYSTEM | Windows Vista SP2 (32 / 64-bit), |
| Windows 7 (32 / 64-bit), | |
| Windows 8 (32 / 64-bit), | |
| Windows 8.1 (32 / 64-bit), | |
| Windows 10 (32 / 64-bit), | |
| WindowsServer2003 SP2 (32 / 64-bit), | |
| WindowsServer2003 R2 SP2 (32 / 64-bit), | |
| WindowsServer2008 SP2 (32 / 64-bit), | |
| WindowsServer2008 R2 SP1 | |
| INTERFACE | USB 3.1 interface: Supported Super Speed for Gen1 (Not supported Gen2) |
| Note: If the scanner is connected to a USB hub, it is not guaranteed to work. | |
| EXTERNAL DIMENSIONS (W X D X H) | 12.0 in. x 7.0 in. x 5.4 in. (303 mm x 177 mm x 137 mm) (When the exit tray and feed tray are closed.) |
| WEIGHT | 5.9 lbs. (2.7 kg) |
| POWER CONSUMPTION | External power supply (AC adaptor) |
| AC 100 V – 240 V, 50 / 60 Hz | |
| POWER CONSUMPTION MAXIMUM (SCANNING) | 25 W or less |
| POWER CONSUMPTION MINIMUM (READY) | 6 W or less |
| POWER CONSUMPTION (SLEEP) | 1.6 W or less |
| POWER CONSUMPTION (POWER OFF) | 0.3 W or less |
| OPERATING ENVIRONMENT | Temperature: 41 to 95 °F / Humidity: 20 to 80 % RH |
| STORAGE ENVIRONMENT | Temperature: 14 to 122 °F / Humidity: 8 to 75 % RH |
| ACCESSORIES | (Device Driver,ISIS driver software,TWAIN driver software,User Utility,Scan Button Setting Tool,Image Capture Plus,Operation manual,Control sheet),Quick Installation Guide,Power cord,AC adaptor,USB cable (1.5m/USB3.1),Mixed |
| OPTIONS FLATBED SCANNER | KV-SS081 |
| CONSUMABLES ROLLER EXCHANGE KIT | KV-SS058 |
| SCANNING FACE | Duplex |
| SCANNING METHOD | Color CIS Background: Black |
| SCANNING RESOLUTION | 100 – 600 dpi (1 dpi step) and 1200dpi (software) |
| Optical: 300 dpi / 600 dpi |
