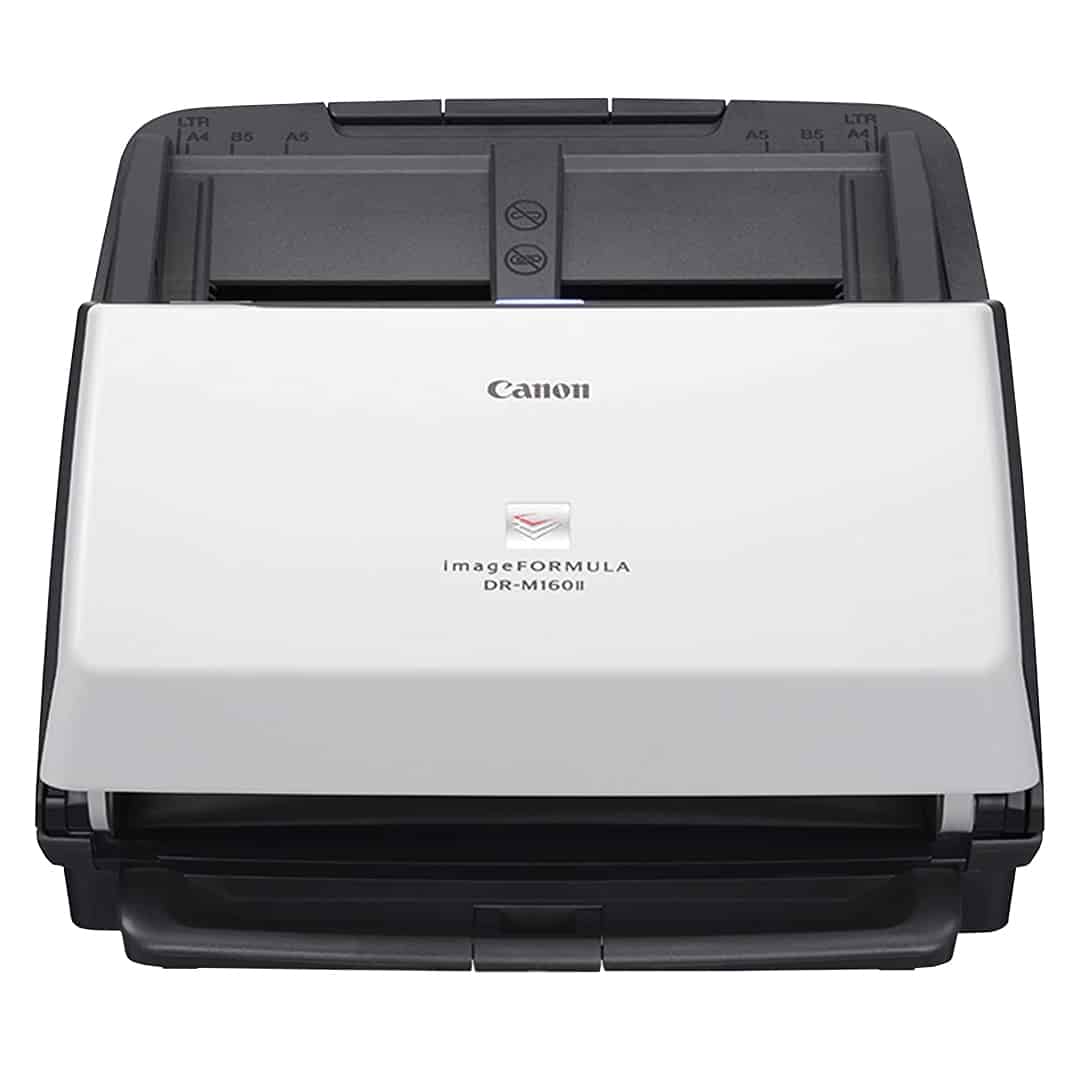

Specifications – Canon imageFORMULA DR-M160II Office Document Scanner
Learn more about the imageFORMULA DR-M160II Office Document Scanner from Canon.
| MODEL NAME | imageFORMULA DR-M160II |
|---|---|
| TYPE | Office Document Scanner |
| DOCUMENT FEEDING | Automatic or Manual |
| DOCUMENT SIZE | (U-Turn Path): Width: 2.0” – 8.5” |
| Length: 2.1” – 14.0” | |
| LONG DOCUMENT MODE | up to 118” |
| DOCUMENT WEIGHT | 7 – 68 lb. Bond Plain Paper |
| FEEDER CAPACITY | Up to 60 Sheets |
| GRAYSCALE | 8-bit |
| COLOR | 24-bit |
| LIGHT SOURCE | RGB LED |
| SCANNING ELEMENT | One-Line Contact Image Sensor (CMOS) |
| SCANNING MODES | Color, Grayscale, Black and White |
| OPTICAL RESOLUTION | 600 dpi |
| OUTPUT RESOLUTION | 150/200/240/300/400/600 dpi |
| SCANNING SPEEDS | (Simplex/Duplex): Black and White/Grayscale/Color: Up to 60 ppm/Up to 120 ipm |
| INTERFACE | Hi-Speed USB 2.0 |
| DIMENSIONS (H X W X D) | 9.09 x 11.02 x 9.76 (with trays closed) |
| WEIGHT | 7.05 lb. |
| POWER CONSUMPTION | 27 W max. (Energy Saving Mode: 1.8 W) |
| SUGGESTED DAILY VOLUME | Approx. 7,000 Scans |
| BUNDLED SOFTWARE | Windows: ISIS/TWAIN Drivers; Canon CaptureOnTouch; CapturePerfect; Nuance eCopyPDF Pro Office; Kofax VRS Elite |
| MAC: TWAIN Driver, Canon CaptureOnTouch | |
| SUPPORTED OPERATING SYSTEMS | Windows XP Professional (32-bit/64-bit) Windows XP Home (32-bit), Windows Vista® (32-bit/64-bit), Windows 7 (32-bit/64-bit), Mac OS 10.7.5, Mac OS 10.8.5, Mac OS 10.9.1 |
| OPTIONS | 2D Code Module, Barcode Module, Exchange Roller Kit, Flatbed Scanner Unit 101, Flatbed Scanner Unit 201, eCarePAK Exchange Service |
| OTHER FEATURES | Auto Color Detection, Auto Page Size Detection, Auto Resolution Setting, Background Smoothing, Character Emphasis, Color Dropout/Enhance Color, Deskew, Double-Feed Release, Feeding Retry, Folio Mode, Image Rotation, Long Document Mode, MultiStream, Pre-Scan, Prevent Bleed-Through/ Remove Background, Separation Retry, Shadow Cropping, Skip Blank Page, Text Enhancement, Text Orientation Recognition, Ultrasonic Double-Feed Detection, User Preferences |
