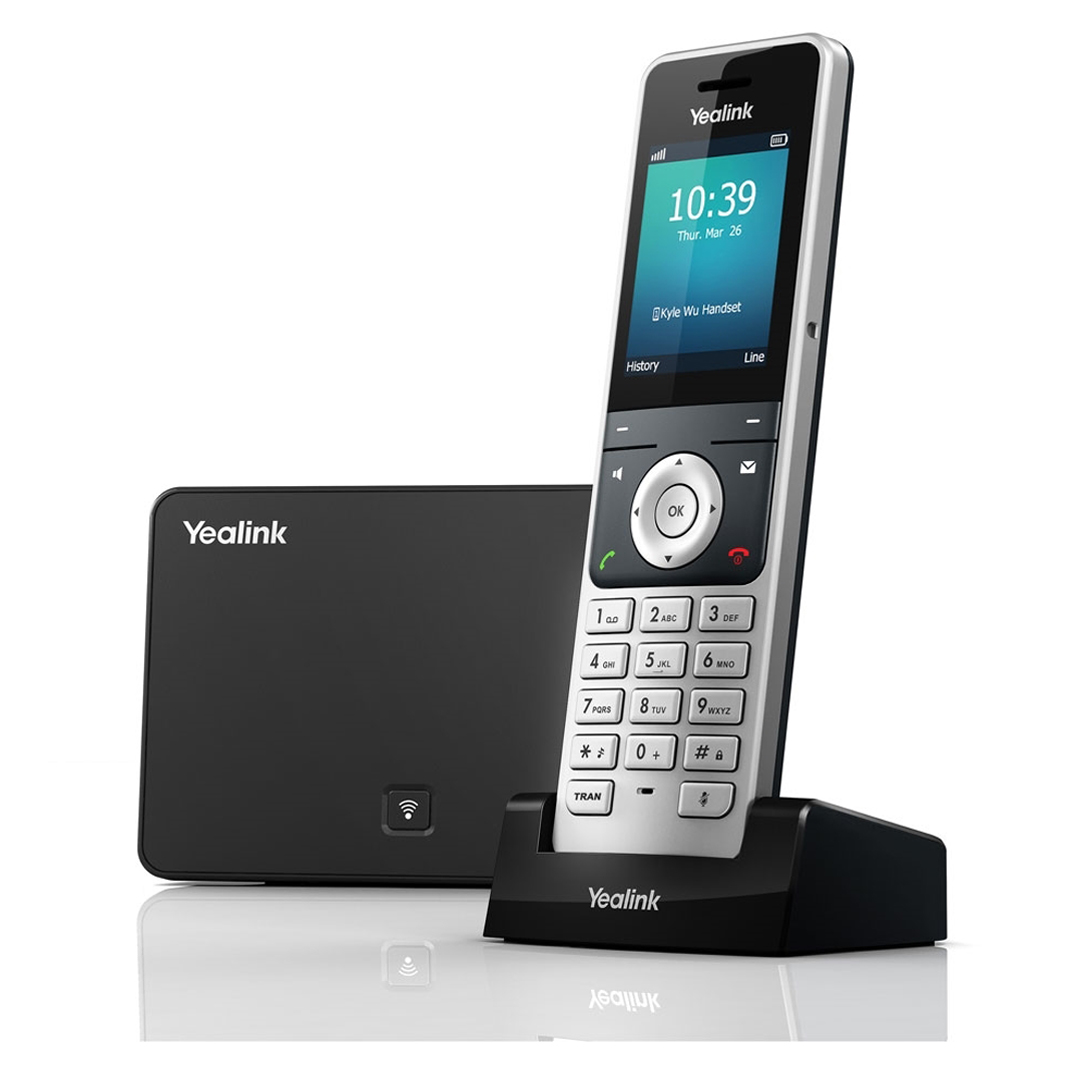

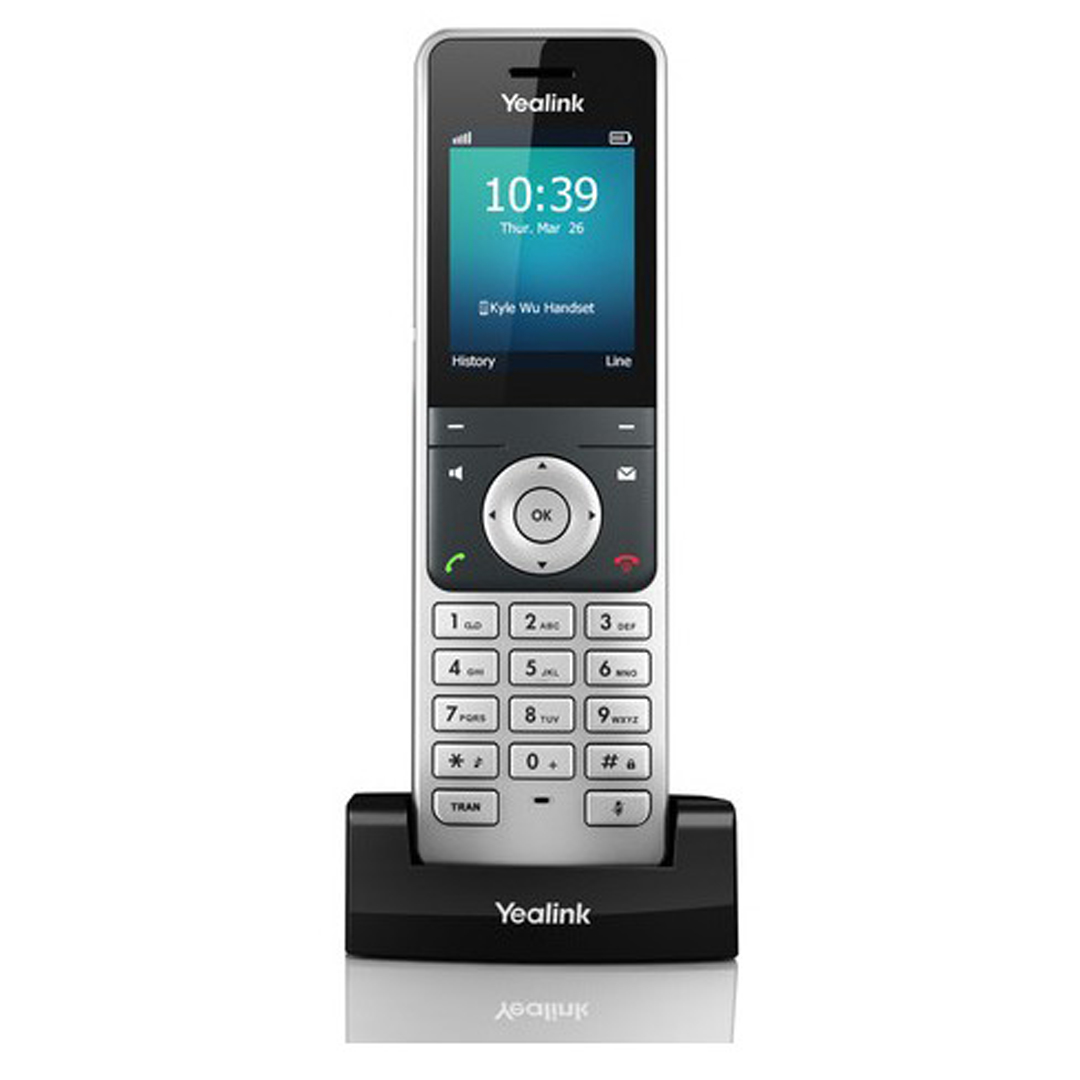

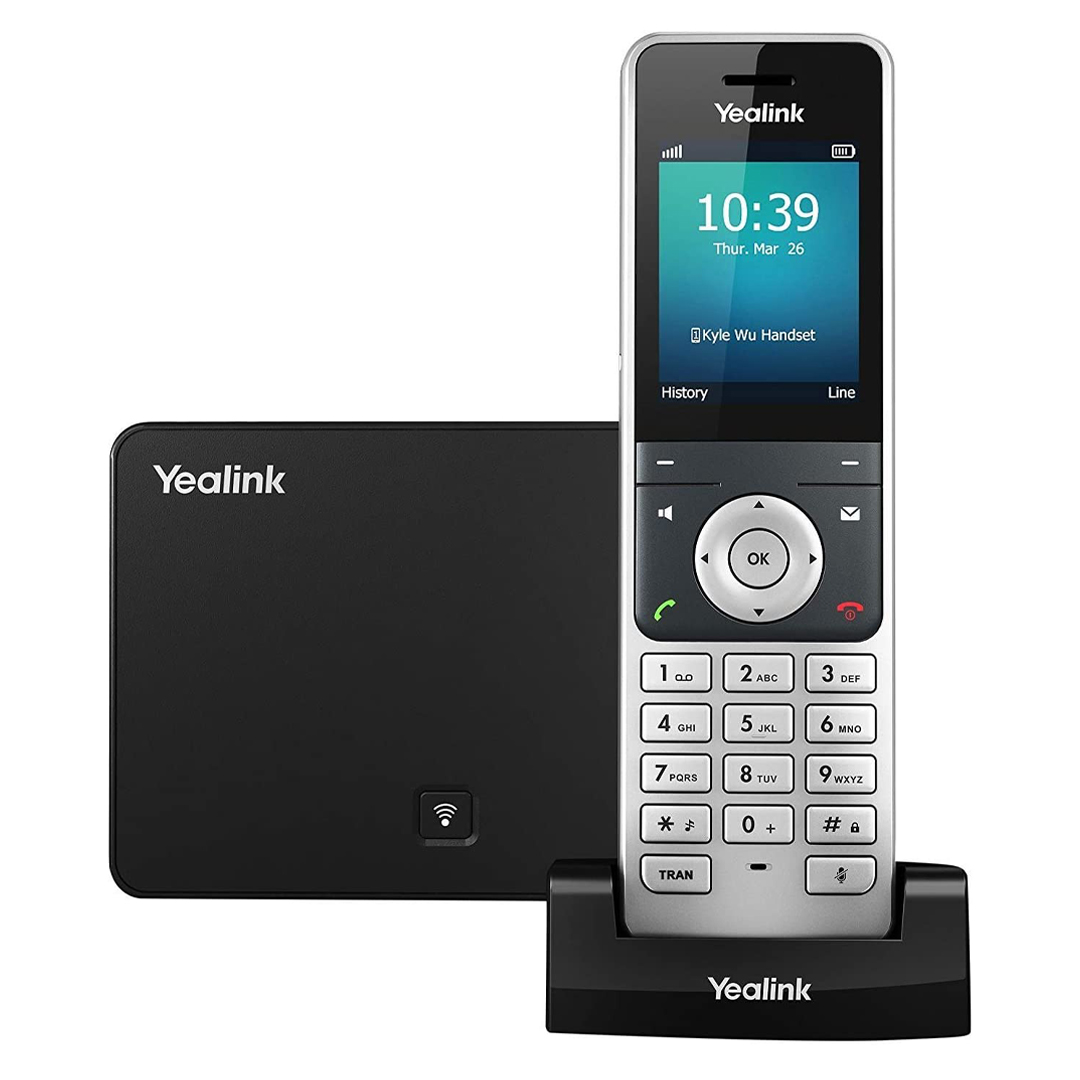

Specifications – Yealink W56P
For more information on the Yealink W56P, view the brochure.
| PHONE FEATURES |
|---|
| Up to 4 simultaneous calls |
| Up to 5 handsets |
| Up to 5 VoIP accounts |
| Handset select for receiving call |
| Handset and Number select for making call |
| Paging, intercom, auto answer |
| Call hold, call transfer, 3-way conferencing |
| Switching between calls |
| Call waiting, mute, DND |
| Caller ID display, redial |
| Anonymous call |
| Anonymous call rejection |
| Call forward (always/busy/no answer) |
| Speed dial, voicemail, silence |
| Message Waiting Indication (MWI) |
| Local phone book for up to 500 entries (store in the base) |
| Remote phone book/LDAP |
| Phone book search/import/export |
| Call history outgoing/missed/accepted) |
| Direct IP call without SIP proxy |
| Reset to factory, reboot |
| Keypad lock |
| Emergency call |
| Dial Plan |
| Music on hold (server-based) |
| Broadsoft directory |
| BroadSoft Call Log |
| Broadworks feature key synchronization |
| Shared Call Appearance (SCA) |
| PERSONALIZATION |
|---|
| 9 ringer melodies |
| Screen saver |
| Multi-language support |
| MANAGEMENT |
|---|
| Auto-provision via FTP/TFTP/HTTP/HTTPS |
| Auto-provision with PnP |
| Handset upgrade: OTA (Over-The-Air) |
| Configuration: browser/phone/auto-provision |
| Trace package and system log export |
| VOICE AND CODECS FEATURES |
|---|
| Full-duplex speakerphone |
| Hearing Aid Compatibility (HAC) compliant |
| Receiver volume control: 5 steps |
| Ringer volume control: 5 steps+off |
| Multiple advisory tones |
| Acoustic warning for low battery status |
| DTMF |
| Wideband codec: G.722 |
| Narrowband codec: G.711μ/A, G.723, G.726, G.729, iLBC |
| VAD, CNG, PLC, AJB |
| AEC (supported by W52H and W56H) |
| Support VQ-RTCPXR (RFC6035), RTCP-XR |
| NETWORK FEATURES |
|---|
| SIP v1 (RFC2543), v2 (RFC3261) |
| SNTP/NTP |
| VLAN (802.1Q and 802.1P) |
| 802.1x, LLDP |
| PPPoE (supported by V80 version only) |
| STUN Client (NAT Traversal) |
| UDP, TCP, DNS-SRV (RFC 3263) |
| IP assignment: static/DHCP |
| Support outbound proxy server backup |
| SECURITY |
|---|
| Open VPN |
| Transport Layer Security (TLS) |
| HTTPS (server/client) |
| SRTP (RFC3711) |
| Digest authentication |
| Secure configuration file via AES encryption |
| Support SHA256/SHA512/SHA384 |
| Admin/Var/User 3-level config mode |
| DECT |
|---|
| Frequency bands: – 1920 – 1930 MHz (US) |
| DECT Standards: CAT-iq2.0 |
| CONNECTORS |
|---|
| 1 x RJ45 10/100M Ethernet port |
| Power over Ethernet (IEEE 802.3af), Class 2 |
| Headset jack (3.5 mm) |
| PHYSICAL FEATURES |
|---|
| Indoor Range: 20m~50m (The ideal distance is 50m) |
| Outdoor Range: 300m (In ideal conditions) |
| Standby Time: 400h (In ideal conditions) |
| Talk Time: 30h |
| 2.4” 240×320 pixels color display |
| Desktop or wall mountable |
| LCD backlit, key backlit |
| Energy-saving ECO mode/ECO Mode+ |
| 12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys |
| 3 LEDs on Base: 1 x power, 1 x Network, 1 x Call |
| Base station: DC 5V/600mA Output |
| Charger: DC 5V/600mA Output |
| Maximum transmission power: 10 milliwatts |
| Color: – Handset: Alabaster Silver; Base: Classic Grey |
| Phone size: 175mm x 53mm x 20.3mm |
| Base station size: – 53.5mm x 108.5mm x 45mm |
| Operating humidity: 10 ~ 95% |
| Operating temperature: 0 ~ +40°C |
| PACKAGE FEATURES |
|---|
| Package content: – Yealink W56P Handset – Base for W52P/W56P – Belt Clip – Rechargeable Lithium Battery – USB Charger Cradle – Two Power Adapters – Ethernet Cable – Quick Start Guide |
| Qty/CNT: 10pcs |
| Giftbox size: 205mm*196mm*95mm |
| Carton meas: 512mm*414mm*213mm |
| N.W: 8.1kg |
| G.W: 9.0kg |
| OPTIONAL ACCESSORY |
|---|
| Handset protective case |
| SPECIAL FEATURES |
|---|
| Increase range with up to 5 repeaters |
