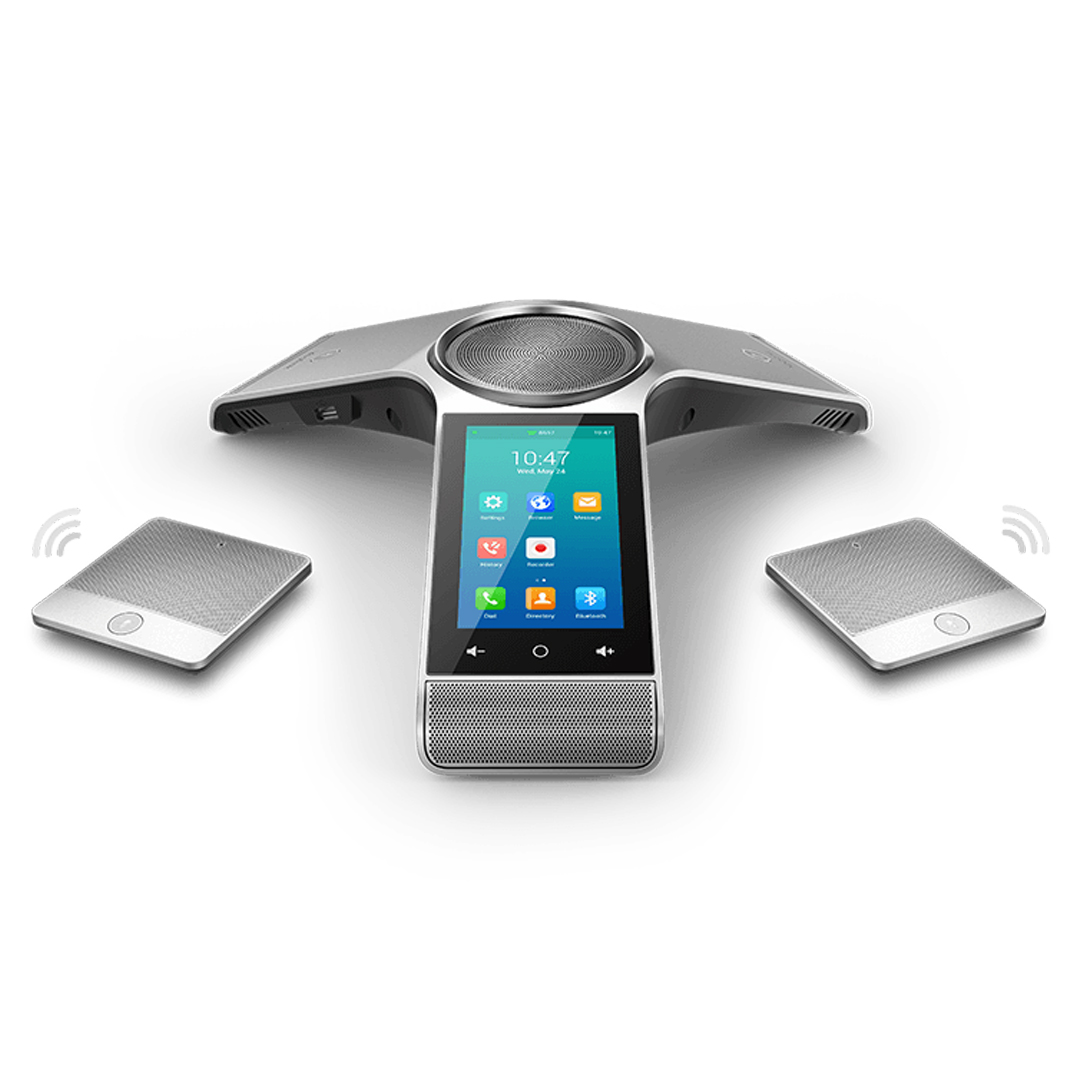

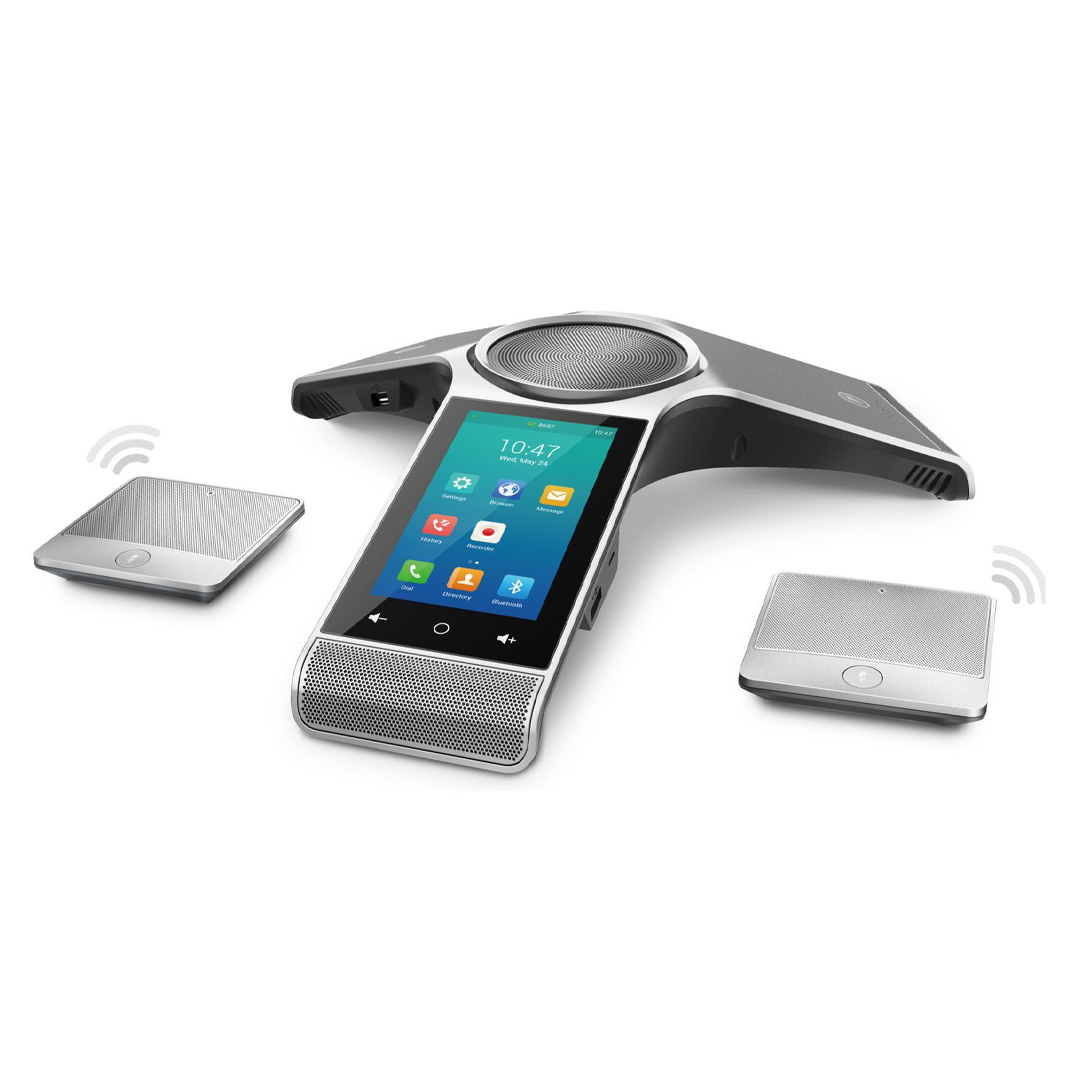

Specifications – Yealink CP960
For more information on the Yealink CP960, view the brochure.
| AUDIO FEATURES |
|---|
| Optimal HD audio |
| Yealink Noise Proof Technology |
| 20-foot (6-meter) microphone pickup range |
| Apply to medium to large conference room |
| Built-in 3-microphone array, 360-degree voice pickup |
| 56mm diameter and 10w speaker |
| Full-duplex speakerphone with AEC |
| Echo cancellation tail length is up to 320ms |
| Background noise suppression |
| Codecs: G722, G722.1C, G726, G729, G723, iLBC, Opus |
| DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO |
| VAD, CNG, PLC, AJB, AGC |
| PHONE FEATURES |
|---|
| 1 VoIP account |
| Call hold, mute, DND, call recording, hotline |
| 5-way conference call |
| Redial, call waiting, emergency call |
| Call forward, call transfer, call return, dial plan |
| Ring tone selection/import/delete |
| Set date time manually or automatically |
| Volume adjustment |
| Pairing via Bluetooth/USB Micro-B port |
| External speaker connection via 3.5mm audio-out port |
| Create meeting directly |
| Join meeting seamlessly |
| Active Speaker |
| DIRECTORY |
|---|
| Local phone book up to 1000 entries |
| XML/LDAP remote phone book |
| Intelligent search method |
| Phone book search/import/export |
| Call history: dialed/received/missed/forwarded |
| Black list |
| IP-PBX FEATURES |
|---|
| Intercom |
| Multicast paging |
| Anonymous call |
| Anonymous call rejection |
| Voice mail |
| Distinctive ringtone |
| Call pickup |
| DISPLAY |
|---|
| 5” 720×1280 capacitive touch screen |
| Volume key |
| Home button |
| INTERFACE |
|---|
| 1 x RJ45 10/100M Ethernet port |
| Built-in Wi-Fi (2.4GHz/5GHz, 802.11.b/g/n/ac) |
| Built-in Bluetooth 4.0 |
| Power over Ethernet (IEEE 802.3af ), class 4 |
| 2 x Wired MIC port |
| 2 x USB 2.0 port |
| 1 x 3.5mm audio-out port |
| 1 x USB 2.0 Micro-B device port |
| 1 x Security slot |
| OTHER PHYSICAL FEATURES |
|---|
| External Yealink PoE adapter (optional) |
| Power consumption (PoE): 5.25w-12.3w |
| Dimension (W*D*H): 338mm*338mm*74mm |
| Operating humidity: 10~90% |
| Storage temperature: -10~40°C (+14~104°F) |
| MANAGEMENT |
|---|
| Configuration: browser/phone/auto-provision |
| Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy |
| Auto-provision with PnP |
| Zero-sp-touch, TR-069, SNMP |
| Reset to factory, reboot |
| Package tracing export, system log |
| NETWORK AND SECURITY |
|---|
| SIP v1 (RFC2543), v2 (RFC3261) |
| SIP server redundancy supported |
| IPv4/IPv6 |
| NAT traversal: STUN mode |
| Proxy mode and peer-to-peer SIP link mode |
| IP assignment: static/DHCP |
| HTTP/HTTPS web server |
| Time and date synchronization using SNTP |
| UDP/TCP/DNS-SRV (RFC 3263) |
| QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP |
| SRTP for voice encryption |
| Transport Layer Security (TLS) |
| HTTPS certificate manager |
| AES encryption for configuration file |
| Digest authentication using MD5/MD5-sess |
| OpenVPN, IEEE802.1X |
| PACKAGE FEATURES |
|---|
| Package content: – Yealink CP960 IP conference phone – Ethernet Cable (7.5m CAT5E UTP cable) – Wireless Microphone CPW90 (Optional) – Wired Microphone CPE90 (Optional) – Quick Start Guide – Yealink PoE Adapter YLPOE30 (Optional) |
| Qty/CTN: 4 PCS |
| N.W/CTN: 5.6 kg (CP960) – 10.4 kg (CP960-WirelessMic) |
| G.W/CTN: 8.4 kg (CP960) – 11.6 kg (CP960-WirelessMic) |
| Giftbox size: 405mm*392mm*141mm |
| Carton Meas: 589mm*401mm*421mm |
| Qty/CTN: 4 PCS |
