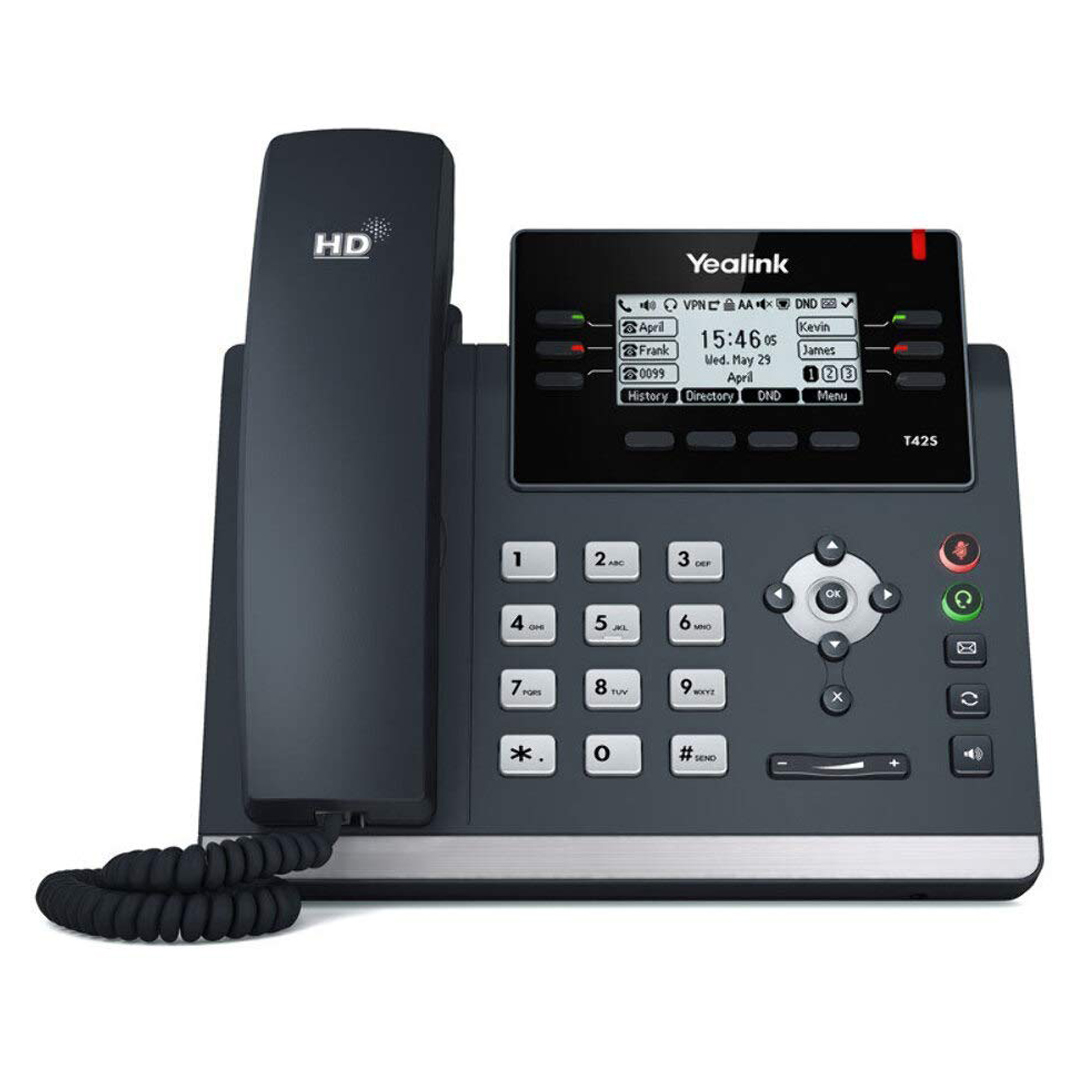

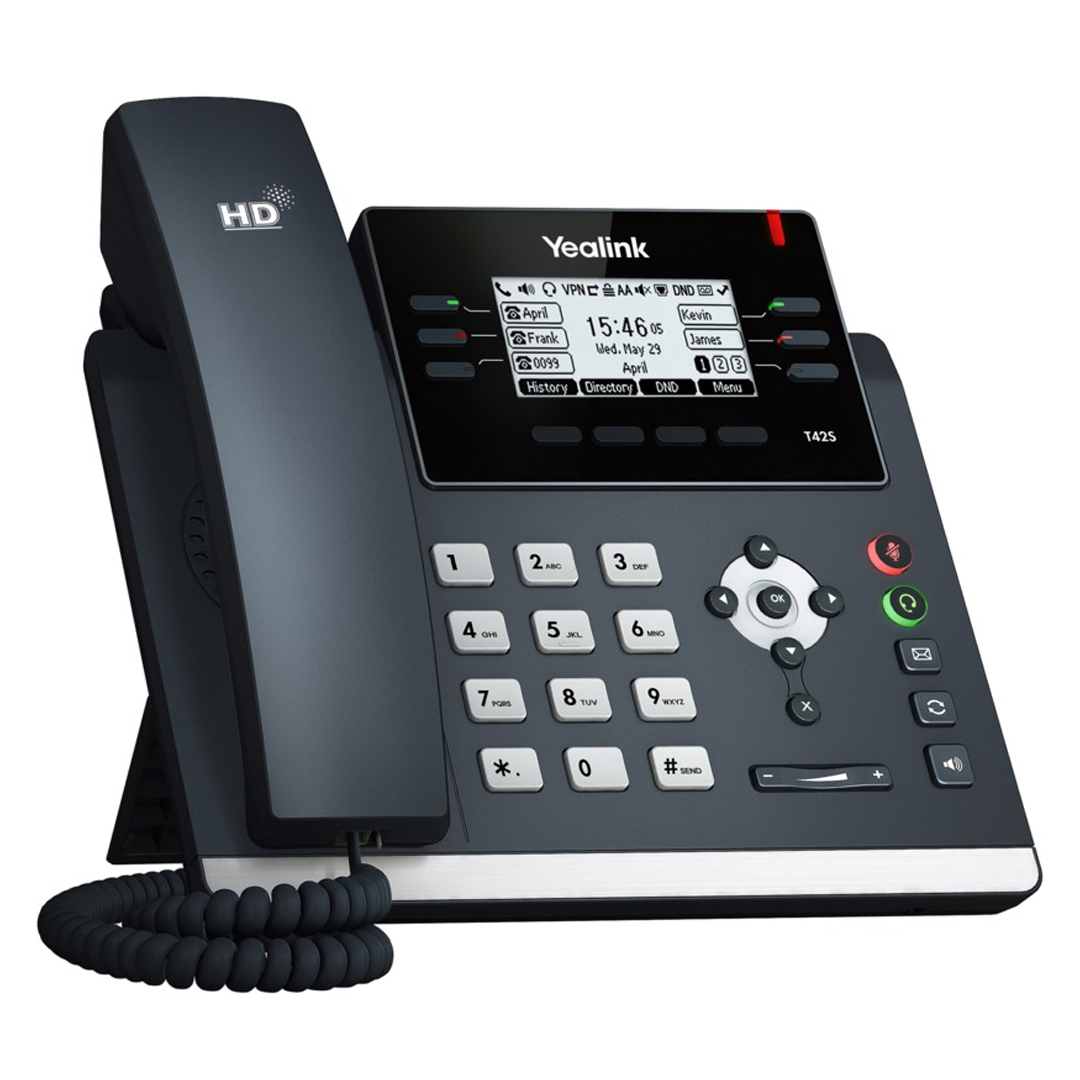

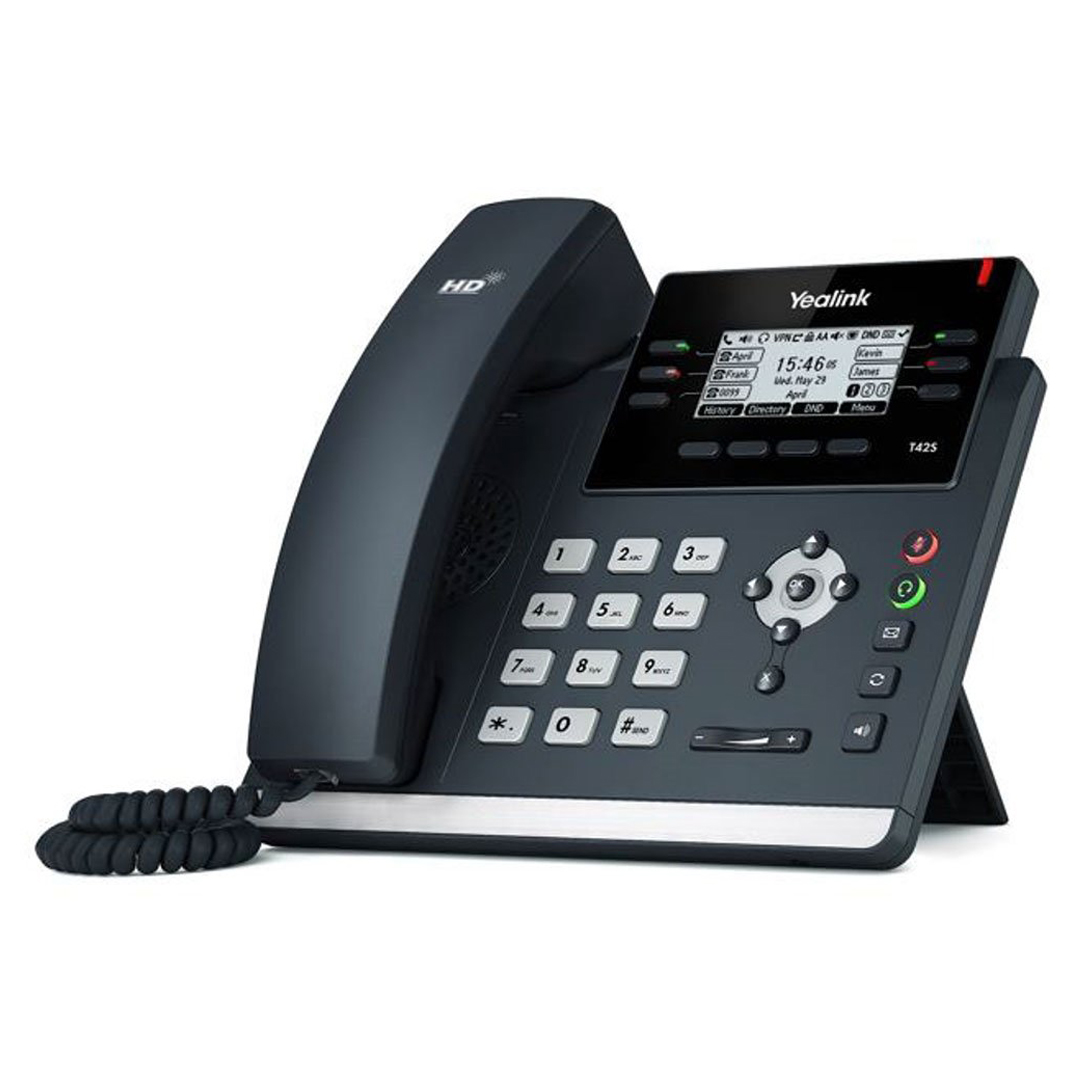

Specifications – Yealink SIP-T42S
For more information on the Yealink SIP-T42S, view the brochure.
| AUDIO FEATURES |
|---|
| HD voice: HD handset, HD speaker |
| Hearing aid compatible (HAC) handset |
| Wideband codec: AMR-WB (optional), Opus*, G.722 |
| Narrowband codec: AMR-NB (optional), Opus*, G.711(A/μ), G.723.1, G.729AB, G.726 , iLBC |
| DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO |
| Full-duplex hands-free speakerphone with AEC |
| VAD, CNG, AEC, PLC, AJB, AGC |
| PHONE FEATURES |
|---|
| 12 VoIP accounts |
| One-touch speed dial, redial |
| Call forward, call waiting |
| Call transfer, call hold |
| Call return, group listening |
| Mute, auto answer, DND |
| 3-way conference call |
| Direct IP call without SIP proxy |
| Ring tone selection/import/delete |
| Hotline, emergency call |
| Set date time manually or automatically |
| Dial plan, XML Browser, Action URL/URI |
| RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
| USB port (2.0 compliant) – Bluetooth earphone through BT40, – Contact synchronization through BT40, – Wi-Fi through WF40, – USB call recording through USB flash drive |
| Enhanced DSS key |
| DIRECTORY |
|---|
| Local phone book up to 1000 entries |
| Black list |
| XML/LDAP remote phone book |
| Smart dialing |
| Phone book search/import/export |
| Call history: dialed/received/missed/forwarded |
| IP-PBX FEATURES |
|---|
| Busy Lamp Field (BLF) |
| Bridged Line Appearance (BLA) |
| Anonymous call, anonymous call rejection |
| Hot-desking, voice mail |
| Flexible seating |
| Call park, call pickup |
| Executive and Assistant |
| Centralized call recording |
| Visual voice mail |
| Call recording |
| DISPLAY AND INDICATOR |
|---|
| 2.7″ 192×64-pixel graphical LCD with backlight |
| LED for call and message waiting indication |
| Dual-color (red or green) illuminated LEDs for line status information |
| Intuitive user interface with icons and soft keys |
| Multilingual user interface |
| Caller ID with name and number |
| Power saving |
| FEATURE KEYS |
|---|
| 6 line keys with LED |
| 6 line keys can be programmed up to 15 paperless DSS keys (3-page view) |
| 5 features keys: message, headset, mute, redial, hands-free speakerphone |
| 4 context-sensitive “soft” keys |
| 6 navigation keys |
| 2 volume control keys |
| Illuminated mute key |
| Illuminated headset key |
| Illuminated hands-free speakerphone key |
| INTERFACE |
|---|
| Dual-port Gigabit Ethernet |
| Power over Ethernet (IEEE 802.3af), Class 2 |
| 1 x USB port (2.0 compliant) |
| 1 x RJ9 (4P4C) handset port |
| 1 x RJ9 (4P4C) headset port |
| 1 x RJ12 (6P6C) EHS port |
| OTHER PHYSICAL FEATURES |
|---|
| Stand with 2 adjustable angles |
| Wall mountable |
| External Yealink AC adapter (optional) : AC 100~240V input and DC 5V/1.2A output |
| Power consumption (PSU): 1.7-3.2W |
| Power consumption (PoE): 2.5-4.7W |
| Dimension (W*D*H*T): 212mm*189mm*175mm*54mm |
| Operating humidity: 10~95% |
| Operating temperature: -10~50°C (+14~122°F) |
| MANAGEMENT |
|---|
| Configuration: browser/phone/auto-provision |
| Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy |
| Auto-provision with PnP |
| Zero-sp-touch, TR-069 |
| Phone lock for personal privacy protection |
| Reset to factory, reboot |
| Package tracing export, system log |
| NETWORK AND SECURITY |
|---|
| SIP v1 (RFC2543), v2 (RFC3261) |
| Call server redundancy supported |
| NAT traversal: STUN mode |
| Proxy mode and peer-to-peer SIP link mode |
| IP assignment: static/DHCP |
| HTTP/HTTPS web server |
| Time and date synchronization using SNTP |
| UDP/TCP/DNS-SRV(RFC 3263) |
| QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP |
| SRTP for voice |
| Transport Layer Security (TLS) |
| HTTPS certificate manager |
| AES encryption for configuration file |
| Digest authentication |
| OpenVPN, IEEE802.1X |
| IPv6 |
| LLDP/CDP/DHCP VLAN |
| ICE |
| PACKAGE FEATURES |
|---|
| Package content: – Yealink SIP-T42S IP phone – Handset with handset cord – Ethernet Cable (2m CAT5E UTP Cable) – Stand – Quick Start Guide – Power Adapter (Optional) – Wall Mount Bracket (Optional) |
| Qty/CTN: 5 PCS |
| N.W/CTN: 6.4 kg |
| G.W/CTN: 7.0 kg |
| Giftbox size: 246mm*223mm*120mm |
| Carton Meas: 627mm*256mm*235mm |
