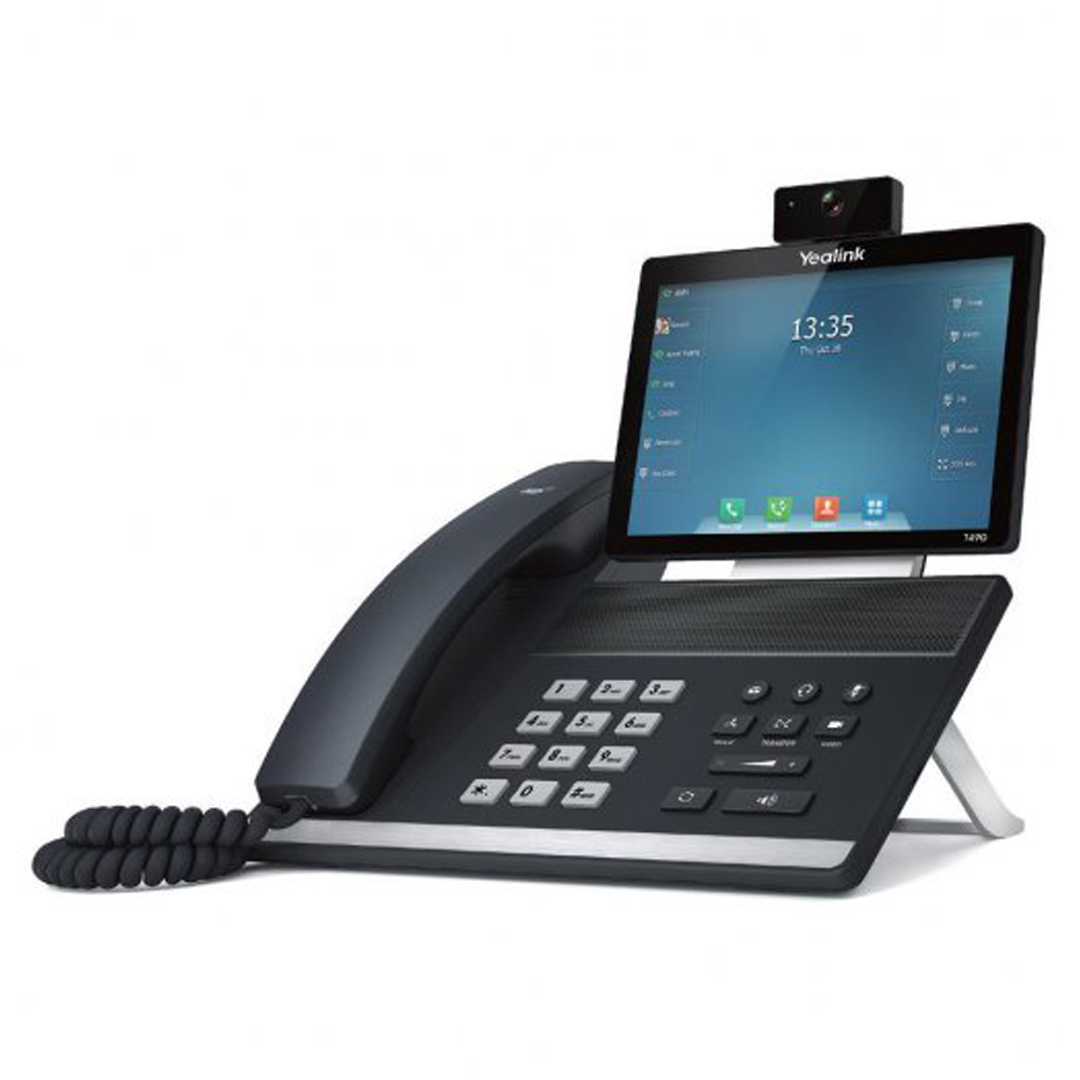

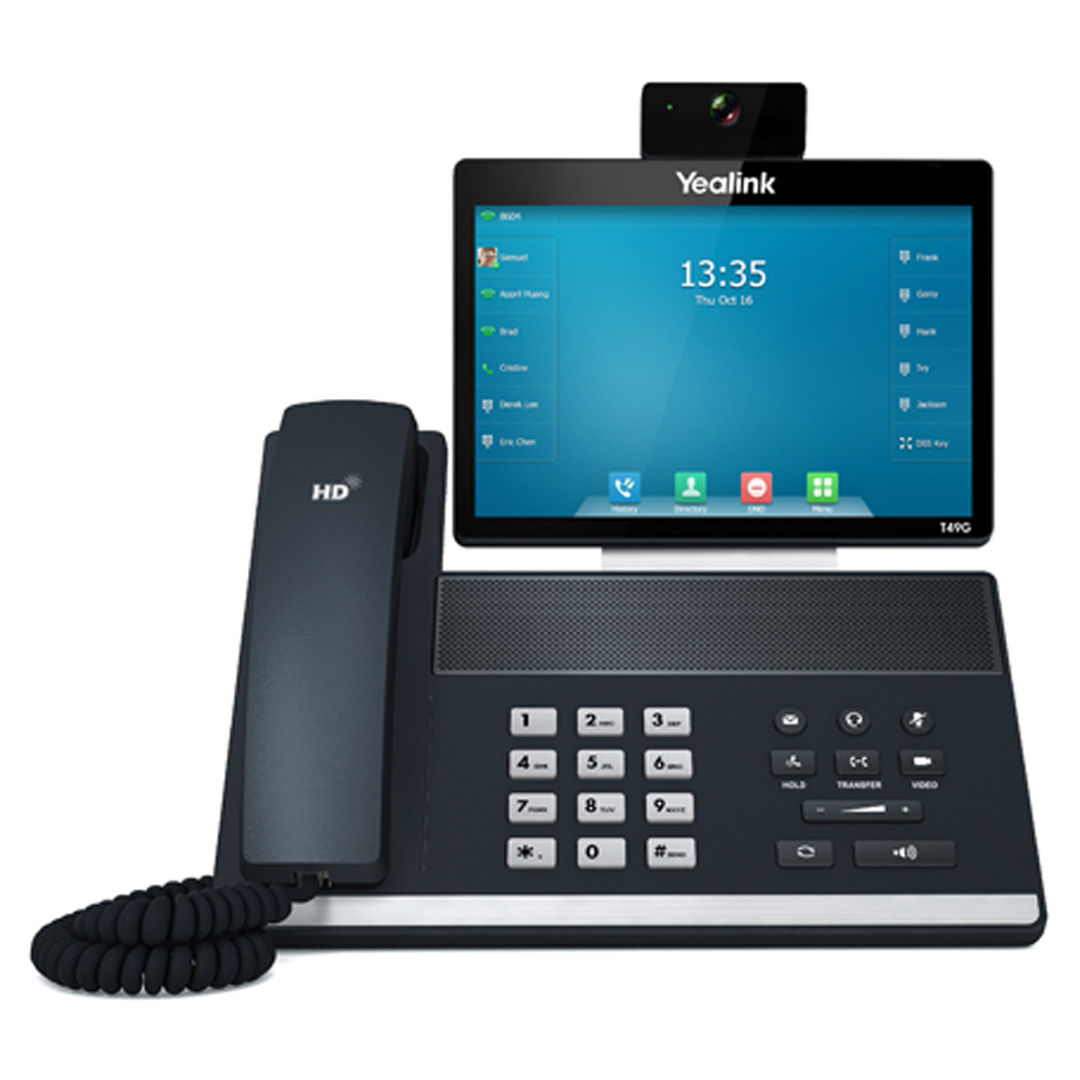

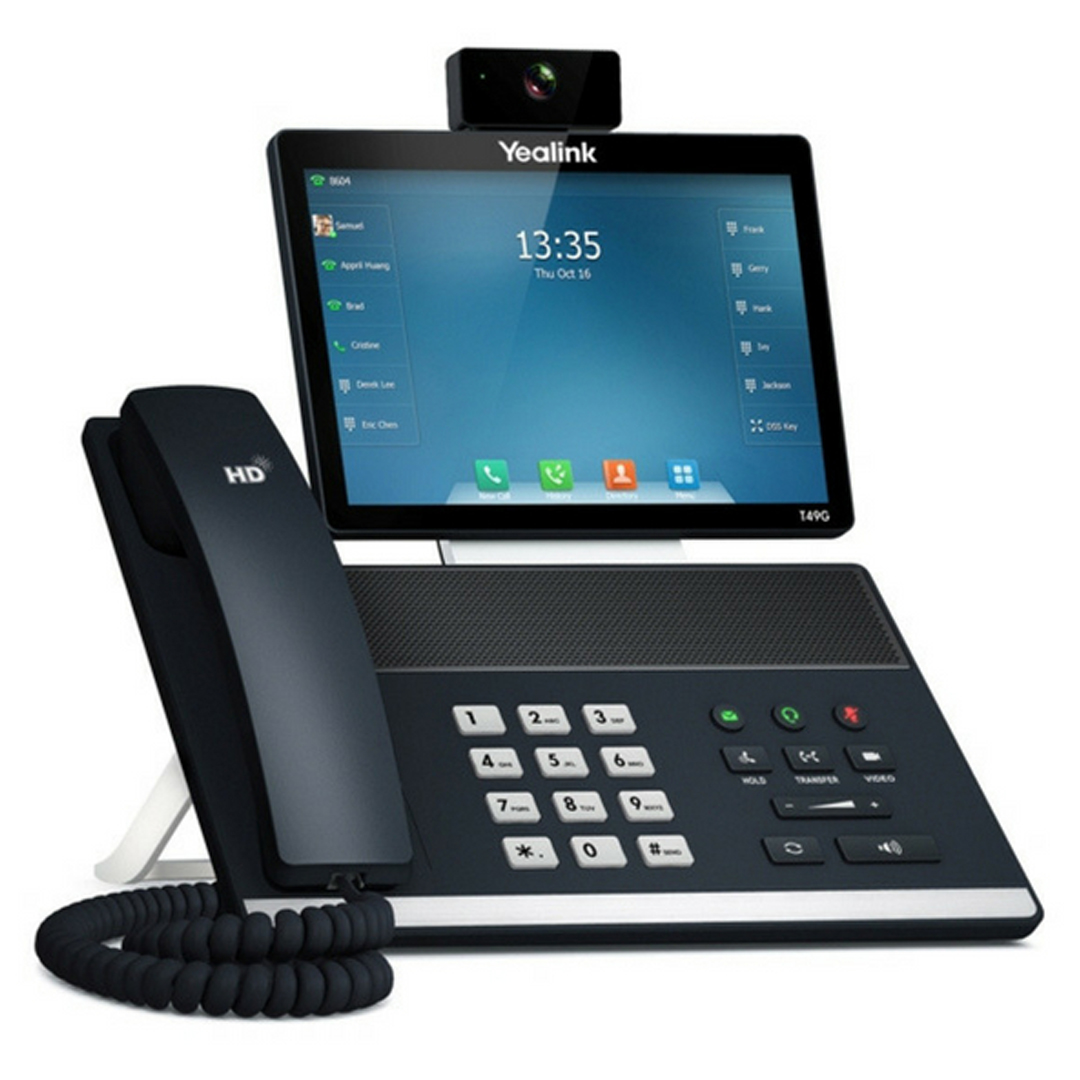

Specifications – Yealink SIP VP-T49G
For more information on the Yealink SIP VP-T49G, view the brochure.
| AUDIO FEATURES |
|---|
| HD voice: HD handset, HD speaker |
| Audio codec: G.722, G.711 (A/μ), G.729AB, G.723, G.726, iLBC, Opus |
| DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO |
| Full-duplex hands-free speakerphone with AEC |
| VAD, CNG, AEC, PLC, AJB, AGC |
| VIDEO FEATURES |
|---|
| 1080p@30fps Full-HD Video call |
| Video codec: H.264 High Profile, H.264, H.263 |
| 2 mega-pixel Camera with privacy shutter |
| Horizontal field of view: 63.5° |
| Vertical field of view: 37° |
| Adjustable camera |
| Plug and Play |
| PHONE FEATURES |
|---|
| 16 VoIP accounts |
| Call hold, mute, DND |
| One-touch speed dial, hotline |
| Call forward, call waiting, call transfer |
| Group listening, emergency call |
| Redial, call return, auto answer |
| Direct IP call without SIP proxy |
| Ring tone selection/import/delete |
| Set date time manually or automatically |
| Dial plan, XML Browser, action URL/URI |
| RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
| Three-way video conferencing |
| Five-way audio/video mixed conferencing |
| Standard HDMI output for connection to monitor |
| USB ports (2.0 compliant) for media and storage applications |
| USB ports (3.0 compliant) for extending camera with USB3.0 cable |
| Notification Center and Control Center |
| Onscreen keyboard |
| DIRECTORY |
|---|
| Local phone book up to 1000 entries |
| Black list |
| XML/LDAP remote phone book |
| Intelligent search method |
| Phone book search/import/export |
| Call history: dialed/received/missed/forwarded |
| IP-PBX FEATURES |
|---|
| Busy Lamp Field (BLF) |
| Bridged Line Appearance (BLA) |
| Anonymous call, anonymous call rejection |
| Remote office, hot desking |
| Message Waiting Indicator (MWI) |
| Voice mail, call park, call pickup |
| Intercom, paging, music on hold |
| Call completion, call recording |
| DISPLAY AND INDICATOR |
|---|
| 8″ 1280 x 800 capacitive touch screen IPS LCD |
| 10 points multi-touch surface |
| Screensaver and Wallpaper |
| LED for call and message waiting indication |
| Intuitive user interface with icons and soft keys |
| National language selection |
| Caller ID with name, number and photo |
| FEATURE KEYS |
|---|
| 29 one-touch DSS keys |
| 8 feature keys: message, headset, mute, hold, transfer, video, redial, speakerphone |
| Volume control keys |
| Illuminated mute key |
| Illuminated headset key |
| Illuminated hands-free speakerphone key |
| INTERFACE |
|---|
| Dual-port Gigabit Ethernet |
| Built-in Wi-Fi (2.4GHz & 5GHz, 802.11a/b/g/n) |
| Built-in Bluetooth 4.0+ EDR |
| 1 x USB port (2.0 compliant) |
| 1 x USB port (3.0 compliant, for camera/USB3.0 cable) |
| 1 x RJ9 (4P4C) handset port |
| 1 x RJ9 (4P4C) headset port |
| 1 x HDMI output port |
| 1 x Security lock port |
| OTHER PHYSICAL FEATURES |
|---|
| Yealink power adapter: AC 100~240V input and DC 12V/2A output |
| Power consumption : 8.0 W-12 W |
| Dimension (W*D*H*T): 273mm*226mm*285mm*42 mm |
| Operating humidity: 10~95% |
| Operating temperature: -10~50°C (+14~122°F) |
| MANAGEMENT |
|---|
| Configuration: browser/phone/auto-provision |
| Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment |
| Auto-provision with PnP |
| Zero-sp-touch, TR-069 |
| Phone lock for personal privacy protection |
| Reset to factory, reboot |
| Package tracing export, system log |
| NETWORK AND SECURITY |
|---|
| IPv4/IPv6 |
| SIP v1 (RFC2543), v2 (RFC3261) |
| Call server redundancy supported |
| NAT traversal: STUN mode |
| Proxy mode and peer-to-peer SIP link mode |
| IP assignment: static/DHCP/PPPoE |
| HTTP/HTTPS web server |
| Time and date synchronization using SNTP |
| UDP/TCP/DNS-SRV(RFC 3263) |
| QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP |
| SRTP |
| Transport Layer Security (TLS) |
| HTTPS certificate manager |
| AES encryption for configuration file |
| Digest authentication using MD5/MD5-sess |
| OpenVPN, IEEE802.1X |
| PACKAGE FEATURES |
|---|
| Package content: – Yealink SIP VP-T49G IP phone – Handset with handset cord – Camera – Ethernet Cable (2m CAT5E FTP Cable) – Stand – Quick Start Guide – Power Adapter – ED10 (Optional) |
| Qty/CTN: 5 PCS |
| N.W/CTN: 12.9 kg |
| G.W/CTN: 14.0 kg |
| Giftbox size: 336mm*364mm*112mm |
| Carton Meas: 587mm*348mm*376mm |
