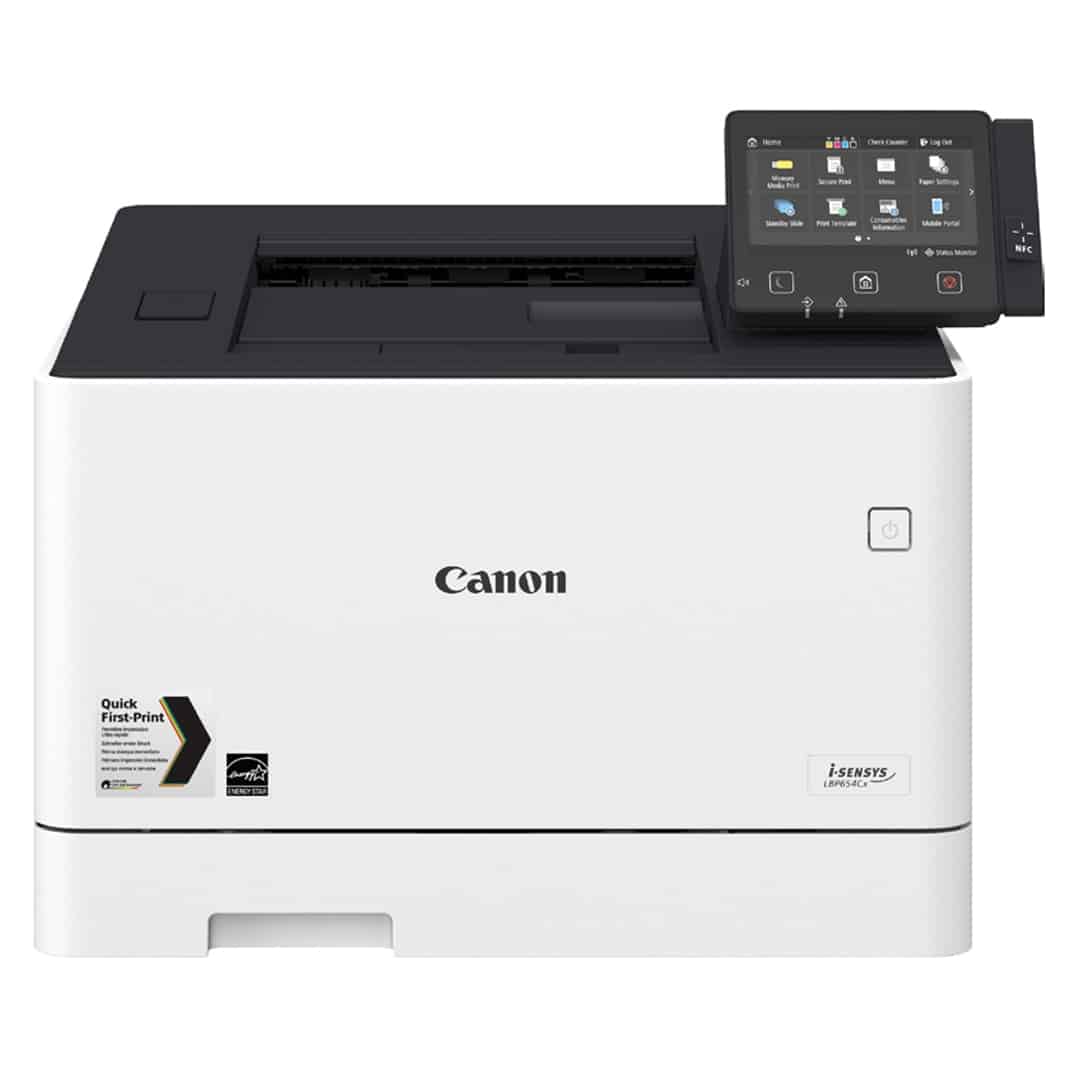

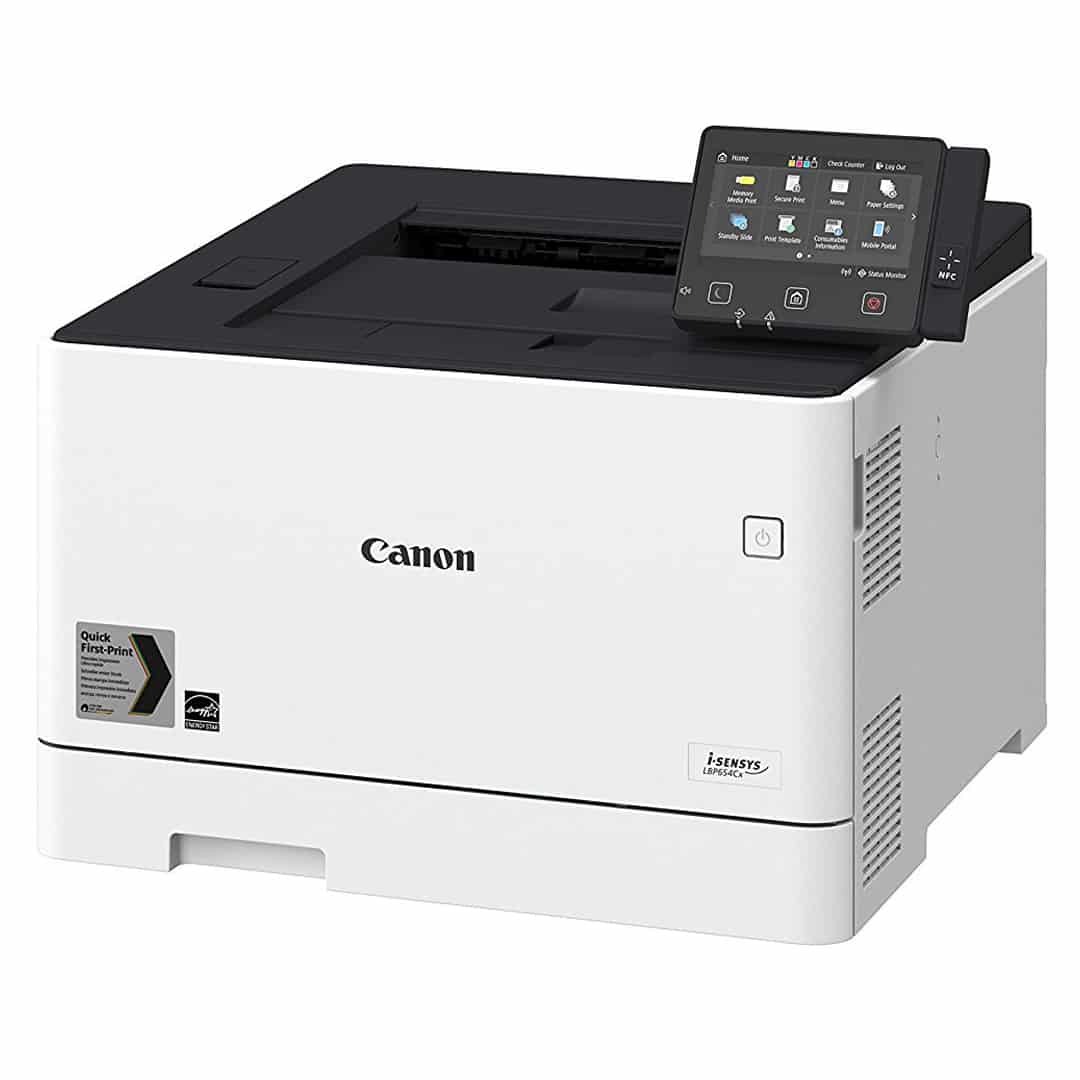

Specifications – Canon imageCLASS LBP654Cdw and LBP664Cdw
| LBP654Cdw | LBP664Cdw | |
|---|---|---|
| MAIN UNIT | ||
| CORE FUNCTIONS | Standard: Print | |
| PROCESSOR | Canon Custom Processor | |
| CONTROL PANEL | 5″ Color Touch-panel | |
| MEMORY | 1 GB | |
| STANDARD INTERFACE CONNECTION | USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection, Near Field Communication | |
| PAPER CAPACITY (LETTER, 20 LB. BOND) | Standard:350 Sheets Maximum:850 Sheets | |
| PAPER SOURCES (LETTER, 20 LB. BOND) | Standard:250-sheet Paper Cassette, 50-sheet Optional:550-sheet Paper Cassette (Cassette Unit-AH1) | |
| PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND) | Standard: 75 Sheets | |
| SUPPORTED MEDIA TYPES | Cassettes:Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelopes (10 Envelopes) Manual Feed Slot:Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (1 Envelope) | |
| SUPPORTED MEDIA SIZES | Cassettes:Letter, Legal, Statement, Executive Envelope: COM10, Monarch, C5, DL Custom (Min. 3″ x 5″ to Max. 8.5″ x 14″) | |
| Manual Feed Slot:Letter, Legal, Statement, Executive Envelope: COM10, Monarch, C5, DL Custom (Min. 3″ x 5″ to Max. 8.5″ x 14″) | ||
| SUPPORTED MEDIA WEIGHTS | Cassettes:16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2) Manual Feed Slot:16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2) | |
| WARM-UP TIME | From Power On: 13 Seconds or Less From Sleep Mode: 6.1 Seconds or Less | |
| DIMENSIONS (W x D x H) | Standard (Desktop): 17.5″ x 23.1″ x 23.3″ (445 mm x 587 mm x 592 mm) Box: 19.1″ x 18.8″ x 15.2″ (485 mm x 478 mm x 386 mm) | |
| INSTALLATION SPACE (W x D x H) | Standard (Desktop): 18.8″ x 43.8″ x 15.0″ (476 mm x 1,112 mm x 379 mm) Fully Configured: 18.8″ x 43.8″ 20.1″ (476 mm x 1,112 mm x 509 mm) | |
| WEIGHT | Unit:Approx. 47.8 lb. (22.0 kg) Boxed Weight:Approx. 53.5 lb.(24.0 kg) | |
| OPERATING SYSTEMS | UFR II/PCL/PS:Windows® 7/Windows 8.1/ Windows 10/Windows Server 2008/Windows Server 2008 R2/Windows Server 2012/Windows Server 2012 R2/Windows Server 2016/Mac OS X v10.9.5 (or later) | |
| PRINT SPECIFICATIONS | ||
| PRINTING METHOD | Laser Beam Printing | |
| PRINT SPEED | Up to 28 ppm (Letter); Up to 23 ppm (Legal) | |
| FIRST PRINT OUT TIME | Approx. 9 seconds | Approx. 7.5 Seconds |
| RECOMMENDED MONTHLY PAGE VOLUME | 750 – 4,000 Pages | |
| PRINT RESOLUTION (dpi) | 600 x 600 | |
| STANDARD PAGE DESCRIPTION LANGUAGES | UFR II, PCL®6, PCL®5, Adobe PostScript 3® | |
| DOUBLE-SIDED PRINTING | Automatic (Standard) | |
| DIRECT PRINT | Available from USB Memory (JPEG, TIFF, PDF) | |
| PRINTING FROM MOBILE AND CLOUD-BASED SERVICES | Apple® AirPrint,® Canon PRINT Business, Mopria™ Print Service, Google Cloud Print™ | |
| SECURITY SPECIFICATIONS | ||
| AUTHENTICATION | Standard:Embedded Universal Login Manager, Department ID Authentication Optional:uniFLOW, uniFLOW OnlineContact us for more information on securing your equipment. | |
| NETWORK | Standard:IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X(Wired Only), IPv6, SMTP Authentication, POP Authentication, POP Authentication before SMTP | |
| DOCUMENT | Standard: Secure Print | |
| WI-FI AUTHENTICATION METHODS | Wi-Fi Infrastructure Mode:WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES) Wi-Fi Access Point:WPA2-PSK (AES) | |
| ENVIRONMENTAL SPECIFICATIONS | ||
| OPERATING ENVIRONMENT | The imageCLASS LBP654Cdw and LBP664Cdw should operate in the following environment: Temperature: 50 to 86º F | |
| POWER REQUIREMENTS | AC 120-127 V:6.5 A, 60 Hz | |
| POWER CONSUMPTION | Maximum: Approx. 1490 W Standby: Approx. 19.6 W Sleep Mode: Approx. 0.6 W Typical Electricity Consumption (TEC) Rating: 0.32 kWh | |
| STANDARDS | ENERGY STAR® Qualified, Rated EPEAT Silver | |
