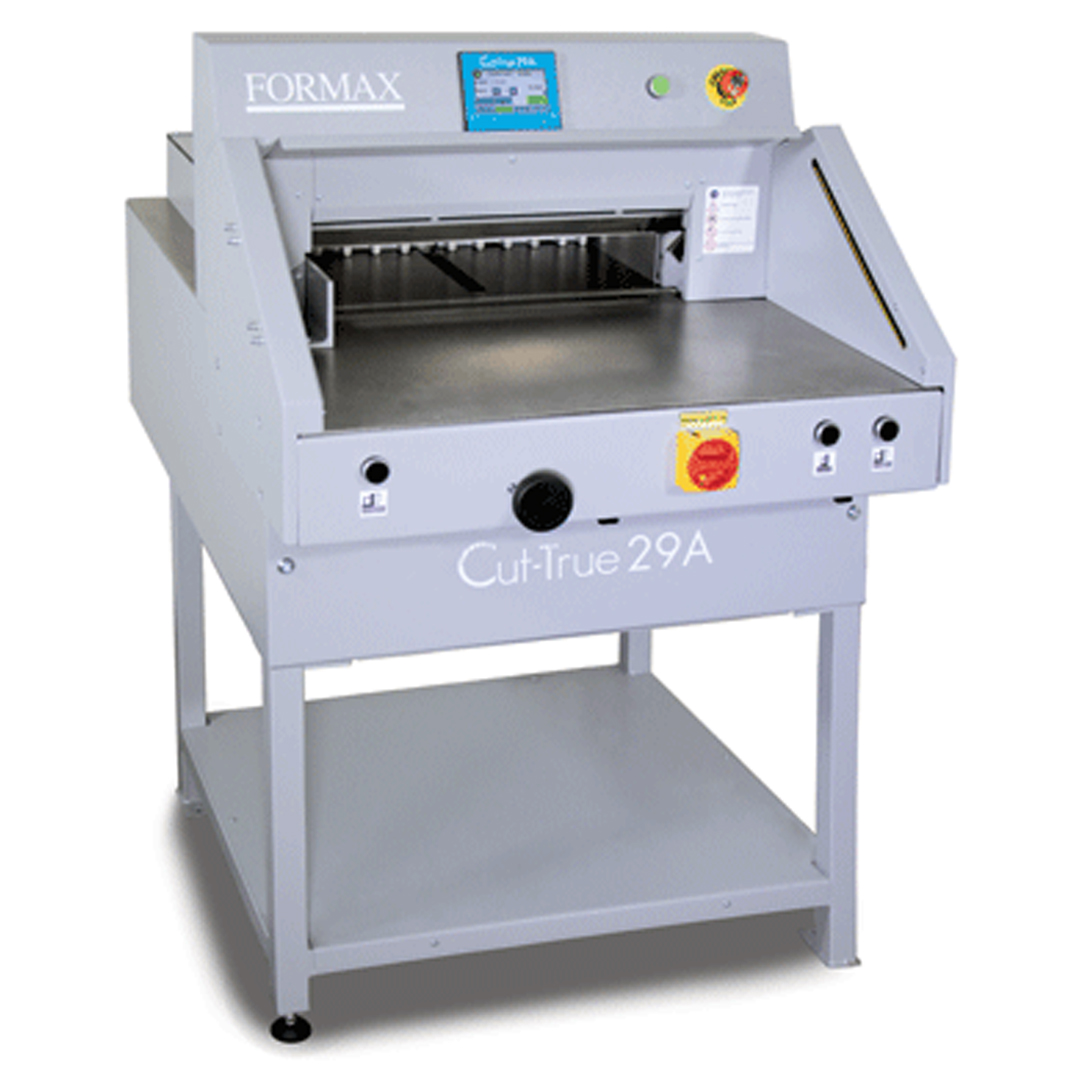

Specifications – Formax Cut-True 29A Automatic Electric Guillotine Cutter
For more information on the Cut-True 29A Automatic Electric Guillotine Cutter, read the brochure.
| Cutting Action | Dual-button electric |
|---|---|
| Maximum Cutting Width | 20.5” (520mm) |
| Maximum Paper Stack Height | 3.15” (80mm) |
| Programmable Jobs | Up to 100 programs with up to 100 steps each |

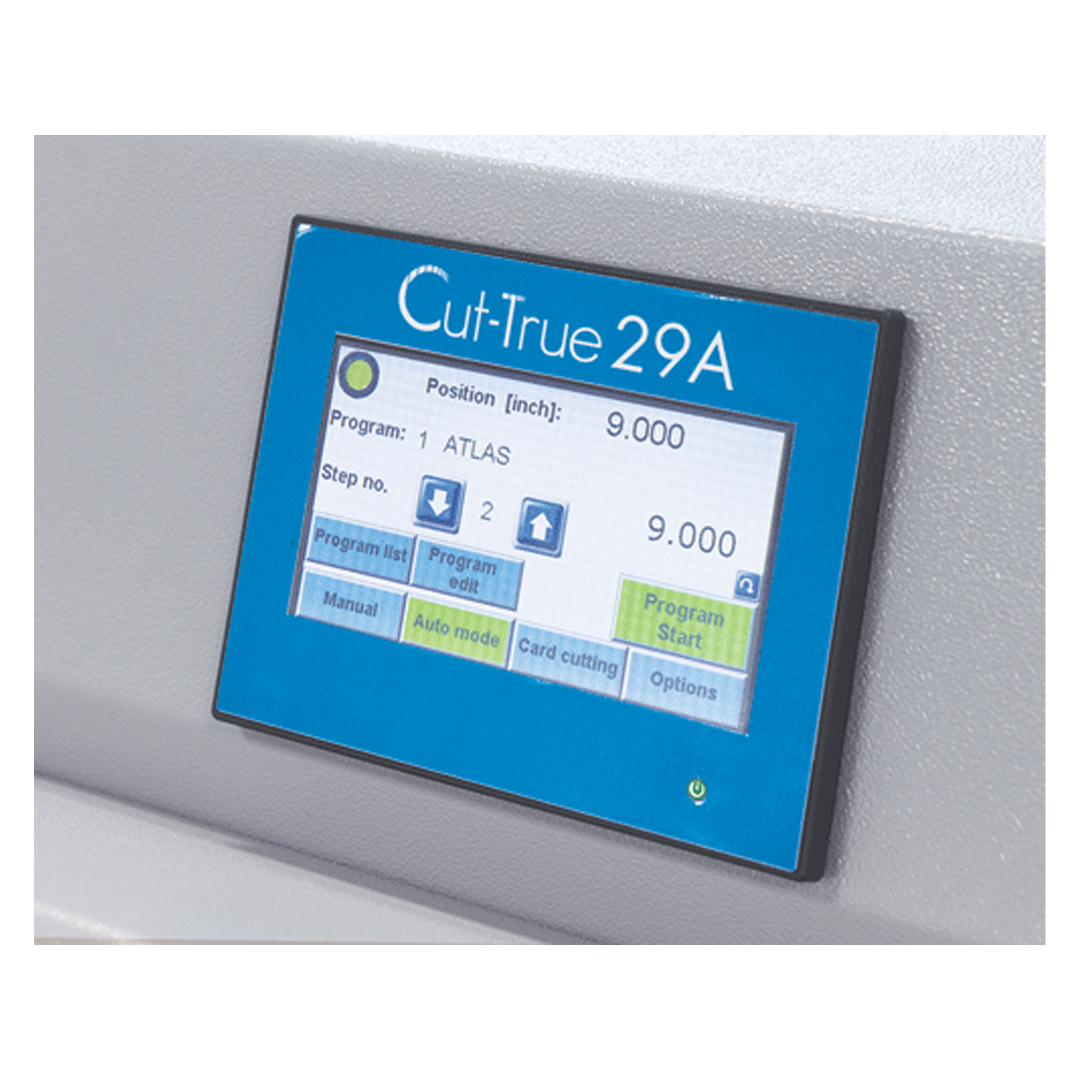

| Touchscreen Features | Program jobs, alternate between inches/mm, paper eject function, programming via cutting, business card cutting mode |
| Length Behind Blade | 20.5” (520mm) |
| Length in Front of Blade | 18.25” (464mm) |
| Minimum Cut w/False Clamp | 1.6” (40mm) |
| Minimum Cut w/o False Clamp | .98” (25mm) |

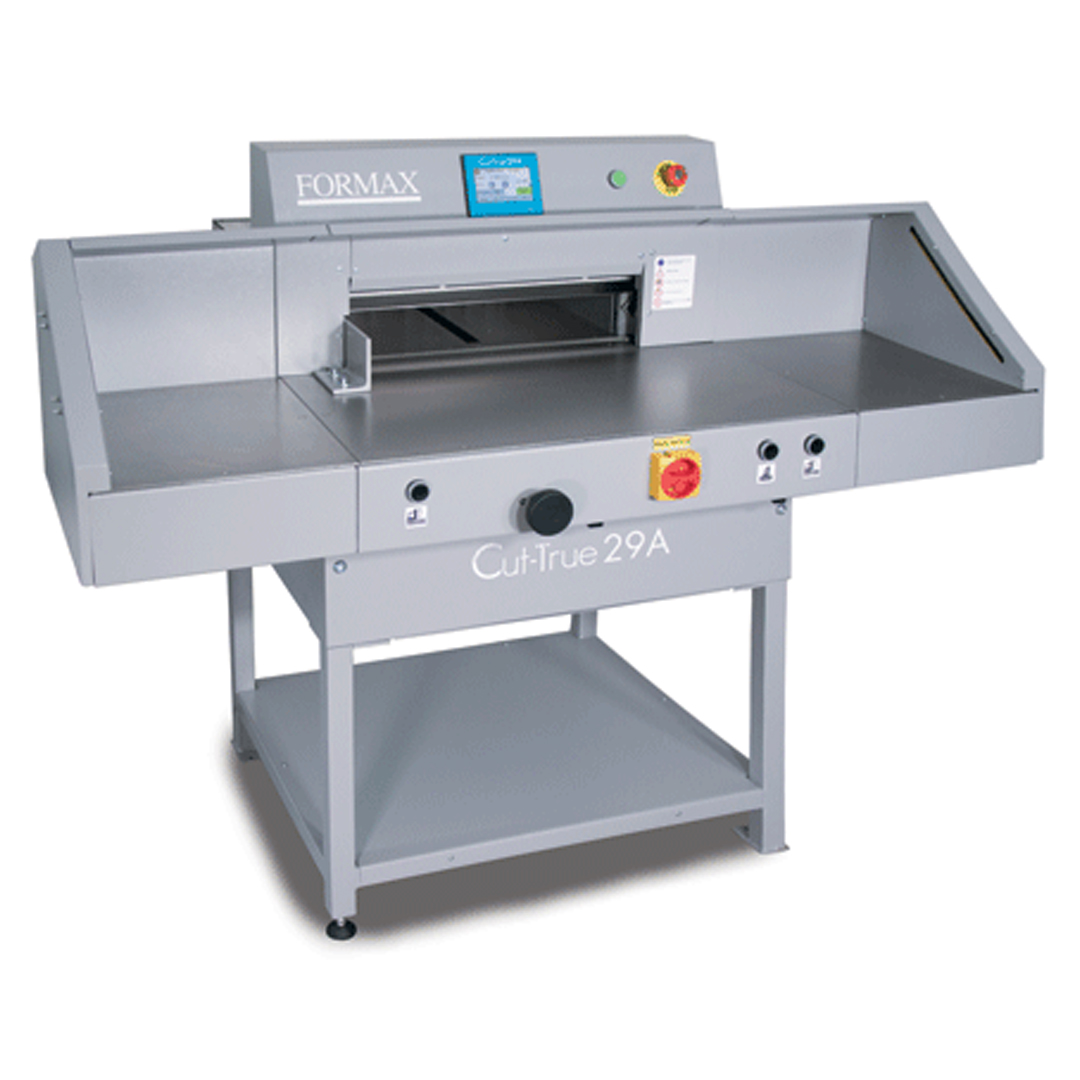

| Table Size | 30.75” W x 15.75” D ( 781 x 400mm) 56” W x 15.75” D (1422 x 400mm) w/optional wide side tables |
| Clamp Style | Automatic, electronically adjustable |
| Back Gauge Adjustment | Fully programmable using touchscreen, accurate to 0.1mm |
| Blade Change Safety Tool | Included |
| Dimensions Dimensions w/optional side tables: | 49.25” H x 31” W x 53.25” D (1250mm H x 788mm W x 1352mm D) |
| 49.25” H x 61” W x 53.25” D (1250mm H x 1549mm W x 1352mm D) | |
| Weight | 683 lbs. (310kg) |
| Power Supply | 220V, 60Hz, 20A dedicated line, NEMA 6-20P |
