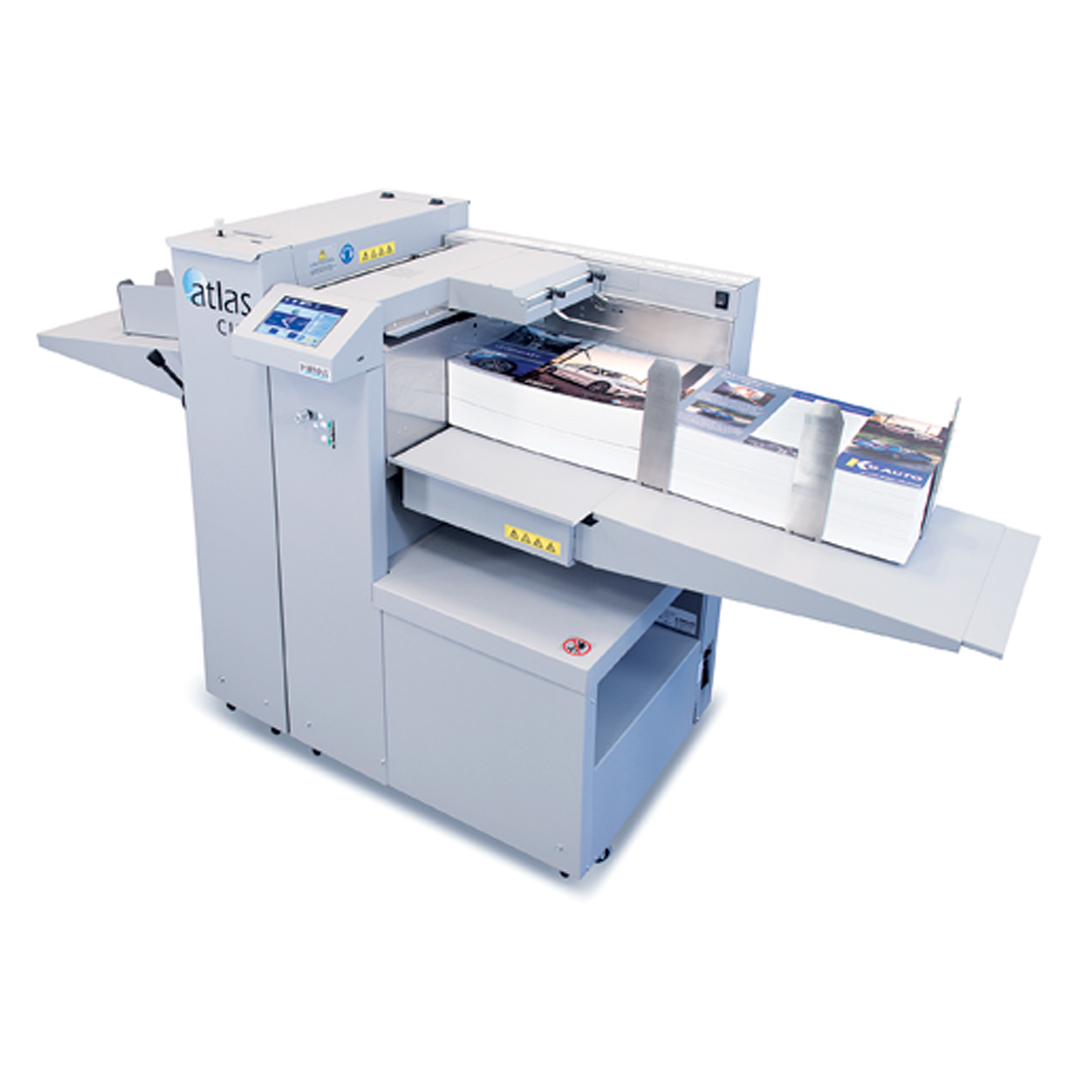

Formax Atlas C150 High-Speed Automatic Creaser

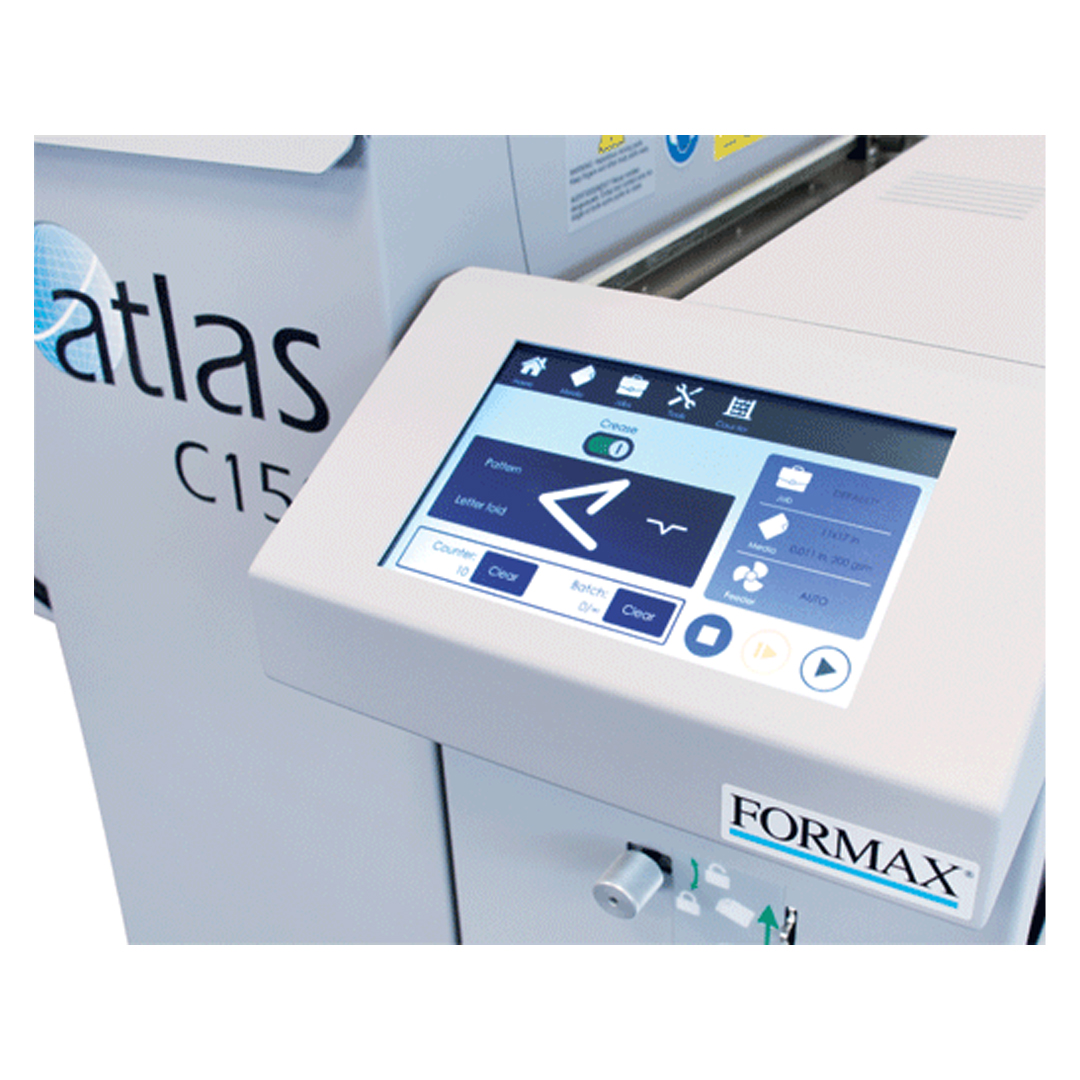

The Atlas C150 High-Speed Automatic Creaser from Formax is capable of creasing and perforating up to 8,500 sheets per hour. The Atlas C150 is ready to handle documents up to 27.5″ x 15″ in size and can make up to 30 creases per sheet. The touchscreen and the top-loading vacuum allow users to process large volumes of documents with ease, making the Atlas C150 perfect for production environments. The Atlas C150 Automatic Creaser and Perforator is capable of handling paper weights from 80-400gsm.

Category: Digital Print and Finishing

Description
About brand

Description

Specifications – Formax Atlas C150 High-Speed Automatic Creaser

For more information on the Atlas C150 High-Speed Automatic Creaser, read the brochure.

Speed	Up to 8,500 sheets per hour * (8.5” x 11”)
Sheet Size	Max: 27.5” x 15” (51” X 15” w/std. extension table)
Sheet Size	Min: 8.2” x 3.89”
Paper Thickness	Max: 0.015” (400gsm) Min: : 0.0035” (75gsm)
Creases per Sheet	Up to 30
Min. Repeat Crease Distance	0.0039” (depending on paper weight)
Programmable Jobs	Unlimited
Max. Loading Capacity	Up to 7.8” (4” for sheet lengths greater than 27.5”)
Stacker Capacity	Up to 4.7” high
Dimensions With Feed Table Fully Extended	66.5” L x 28.7” W x 45.7” H
Dimensions With Feed Table Fully Extended	100” L x 28.7” W x 45.7” H
Weight	551 lb.
Power	100-240V, 50/60Hz, 8-4A
