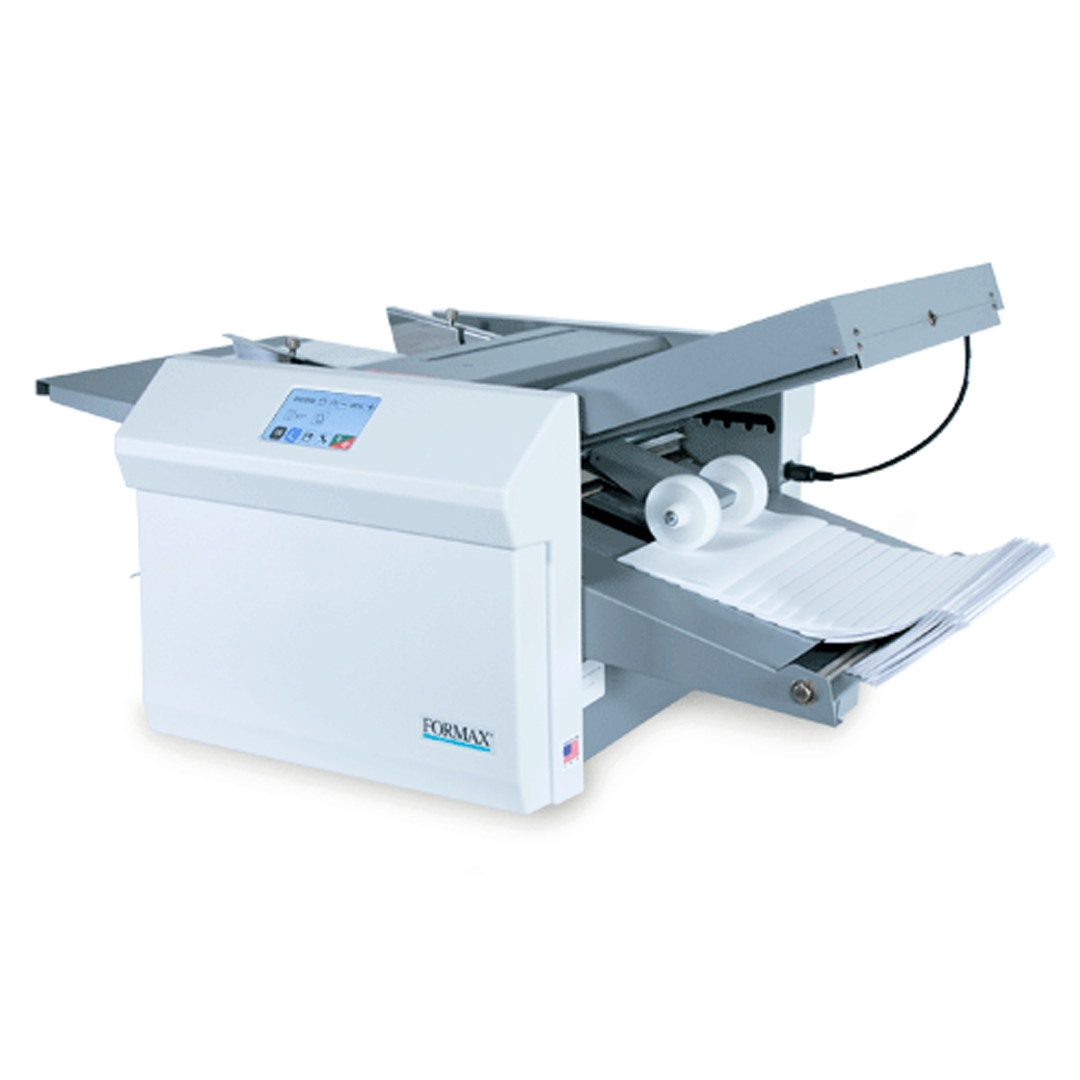

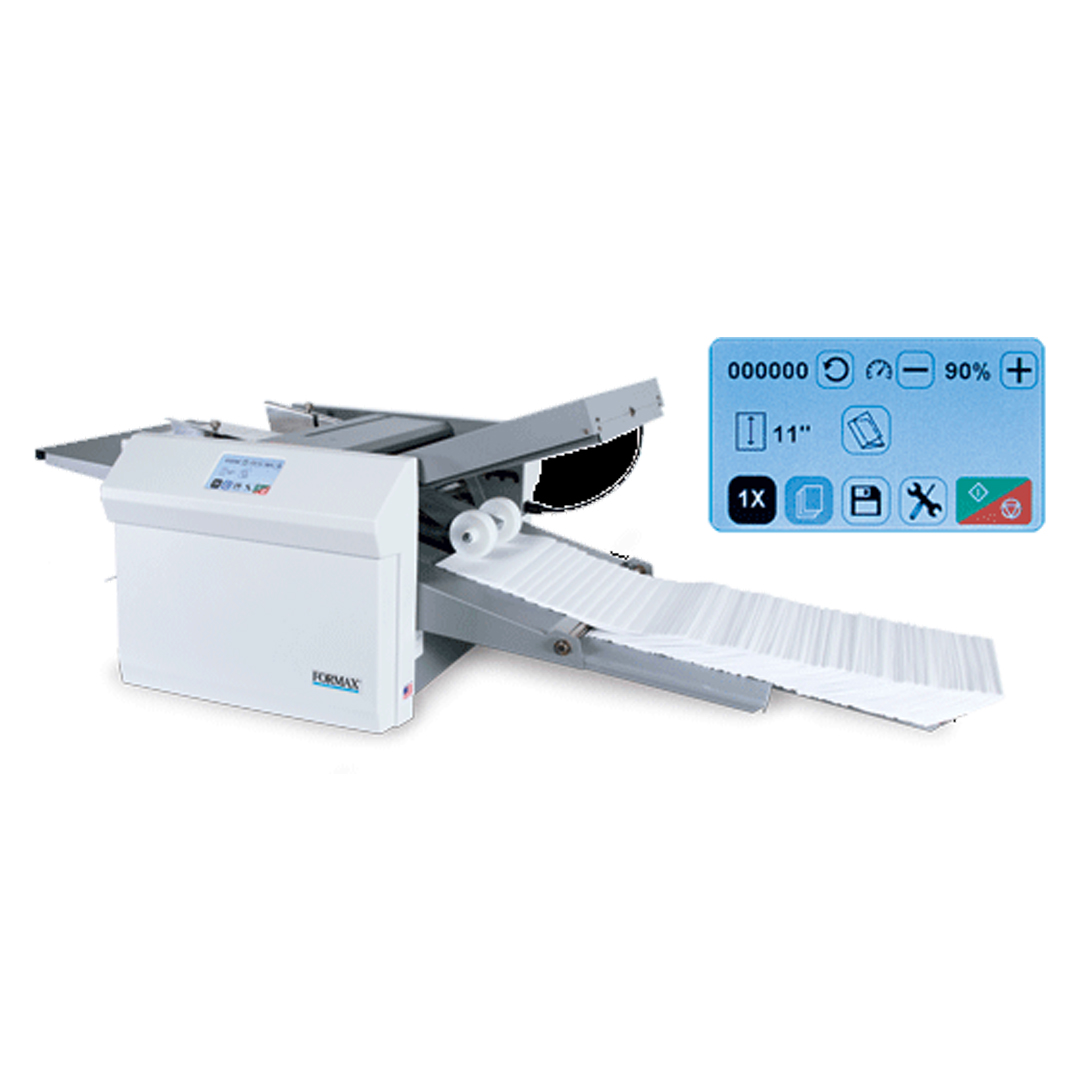

Specifications – Formax FD 386 Automatic Touchscreen Document Folder
For more information on the FD 386 Automatic Touchscreen Document Folder, read the brochure.
| Speed | Up to 17,000 sheets per hour – based on 11” (279mm) Z-Fold |
|---|---|
| Hopper Capacity | Up to 500 sheets 20# (75 gsm) |
| Pre-Set Folds | Pre-programmed for C, V, Z, Gate, Fold Out and Double Parallel |
| Pre-Set Paper Sizes | 11”, 14”, 17”, A5, A4, A3, B6, B5, B4 |
| Custom Folds | Up to 27 |
| Paper Size | Min: 3.5” W x 5” L (88.9 W x 127 L mm) |
| Max: 12.25” W x 18” L (311 W x 457 L mm) | |
| Dimensions | Closed: 33” L x 20” W x 19” H (84 L x 51 W x 48 H cm) |
| Fully Extended: 60” L x 20” W x 19” H (152 L x 51 W x 48 H cm) | |
| Weight | 73 lbs (33kg) |
| Power | 110-240VAC 50/60 Hz |
| Option | FD 300-20 – Multi-Sheet Feeder |
| Safety Certifications | UL & CE approved |
