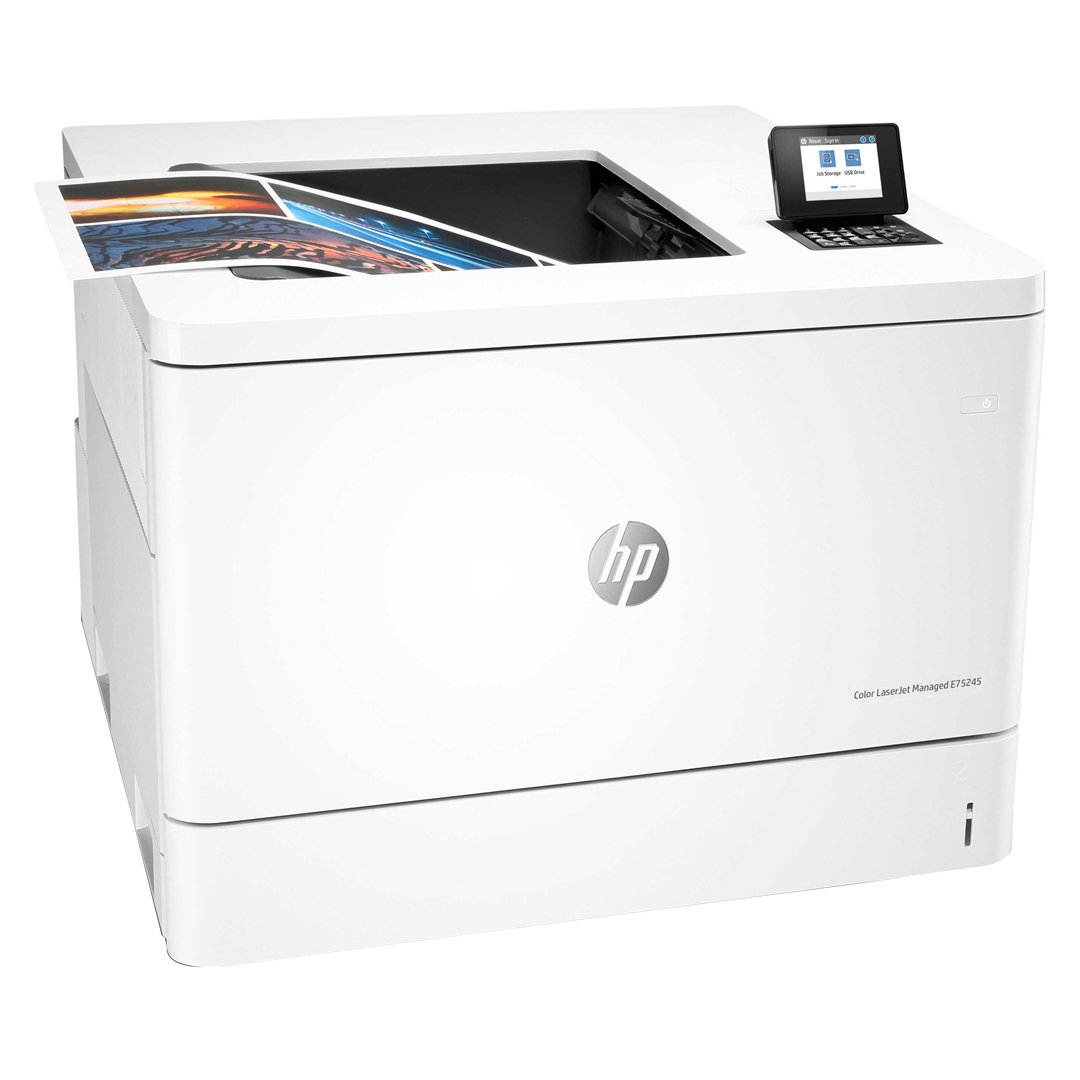

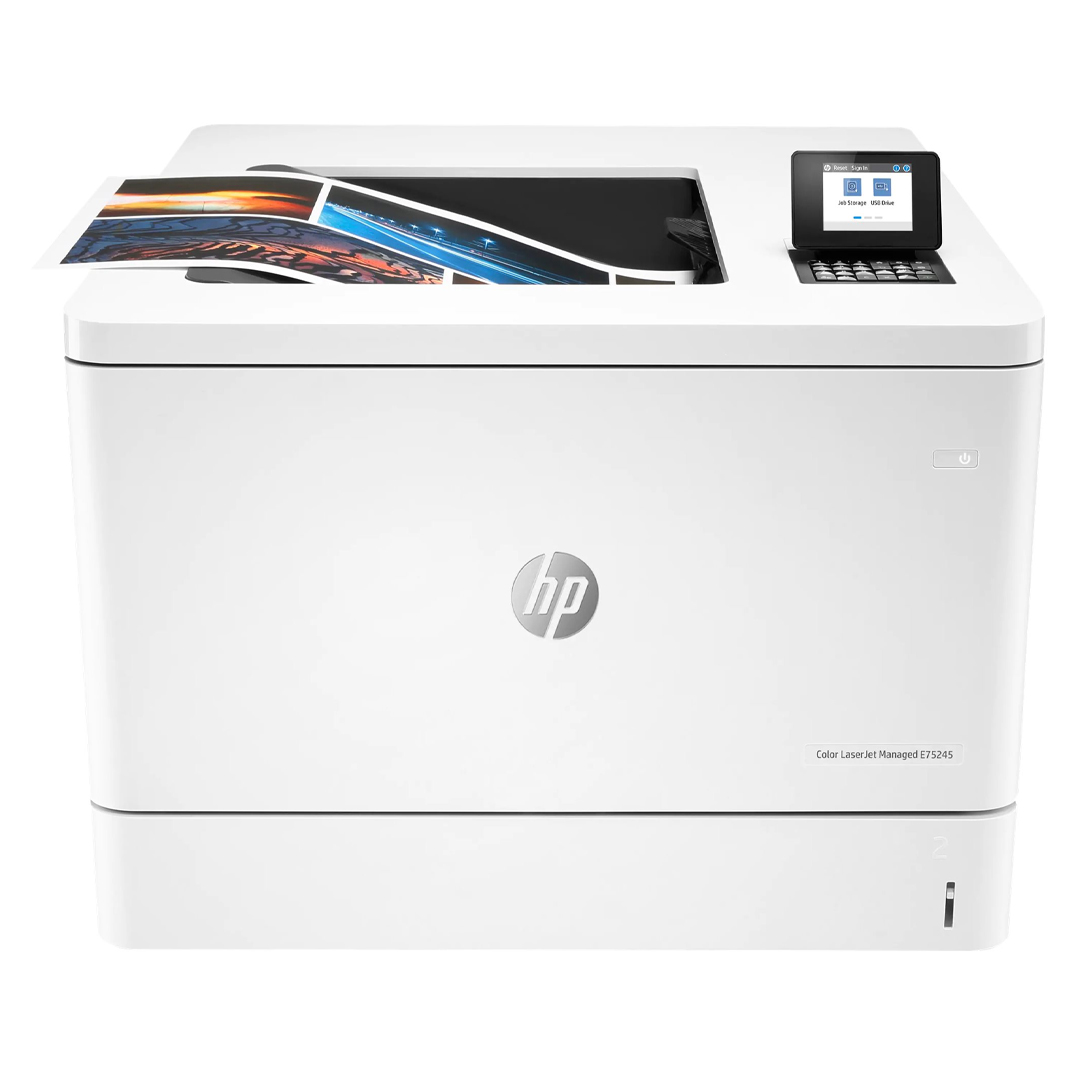

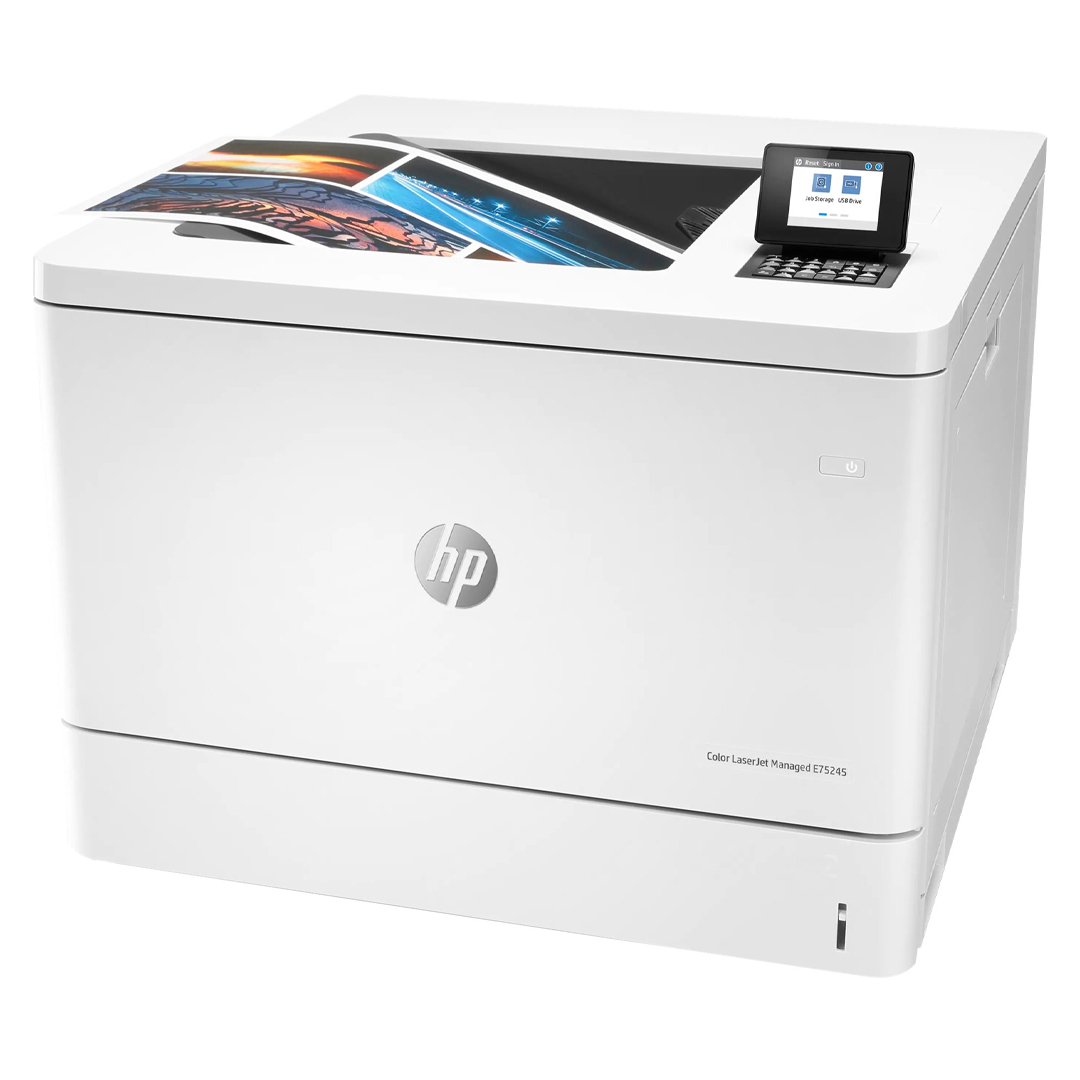

Specifications – HP Color LaserJet Managed E75245dn Printer
For more information on the HP Color LaserJet Managed E75245dn Printer, view the brochure.
| Technical Specifications | HP Color LaserJet Managed E75245dn (T3U64A) |
|---|---|
| Print Speed | Letter: Up to 45 ppm black; Up to 45 ppm color; |
| A4: Up to 46 ppm black; Up to 46 ppm color13; | |
| First Page Out Letter: As fast as 5.7 sec black; As fast as 6.1 sec color; | |
| First Page Out A4: As fast as 5.7 sec black; As fast as 6.1 sec color14; | |
| Print Speed (Landscape, A5): Up to 35 ppm black; Up to 35 ppm color | |
| Print ResolutionBlack (best): Up to 1200 x 1200 dpi; | |
| Color (best): Up to 1200 x 1200 dpi | |
| Print Technology | Laser; Print Resolution Technologies: HP ImageREt 4800, Fine Lines (1200×1200 dpi), Quickview (300×300 dpi) |
| Standard Print Languages | HP PCL 6, HP PCL 5 (HP PCL 5 driver available from the Web only), HP postscript level 3 emulation, native PDF printing (v 1.7), Apple AirPrint™ |
| Printer Smart Software Features | Print preview, duplex printing, print multiple pages per sheet (2, 4, 6, 9, 16), collation, watermarks, store print jobs, easy-access USB |
| Printer Management | HP Printer Assistant; HP Device Toolbox; HP Web JetAdmin Software; HP JetAdvantage Security Manager; HP SNMP Proxy Agent; HP WS Pro Proxy Agent; Printer Administrator Resource Kit for HP Universal Print Driver (Driver Configuration Utility – Driver Deployment Utility – Managed Printing Administrator) |
| Standard Connectivity | 1 Hi-Speed Device USB 2.0; 2 Hi-Speed USB 2.0 rear host ports; 1 walkup USB 2.0 host port; 1 Gigabit/Fast Ethernet 10/100/1000 Base-TX network port; 1 Hardware Integration Pocket 2nd generation (HIP2) |
| Network Capabilities | Yes, via HP Jetdirect Ethernet embedded print server (standard) supports: 10Base-T, 100Base-Tx , 1000Base-T; 802.3az (EEE) support on Fast Ethernet and Gig Links; IPsec (standard); 802.11b/g/n wireless networking (optional) |
| Wireless Capability | Optional, enabled with purchase of a wireless hardware accessory: HP Jetdirect 3100w BLE/NFC/Wireless Accessory 3JN69A, (Dual band Wireless Station and Wi-Fi Direct functionality) HP Jetdirect 2900nw Print Server J8031A (Dual band Wireless Station) |
| Mobile Printing Capability | Apple AirPrint™; Google Cloud Print™; HP ePrint; HP Roam; Mopria™ Certified |
| Memory | Standard: 1.5 GB; |
| Maximum: 2 GB | |
| Processor Speed | 1.2 GHz / Hard disk: Optional 500 GB HDD: HP Secure High Performance Hard Disk drive 500 GB B5L29A; HP FIPS-140-2 Secure Hard Disk Drive 5EL03A |
| Duty Cycle | Monthly: Up to 150,000 pages; |
| Recommended Monthly Page Volume: Up to 40,000 | |
| Paper Handling | Input Capacities: 100-sheet multipurpose tray, 550-sheet input tray; Up to 650 sheets (80 g/m² paper) standard labels legal; |
| Output Capacities: 250-sheet output bin; Up to 250 sheets standard labels legal; | |
| Duplex Options: Automatic (standard); | |
| Envelope Feeder: No; | |
| Standard Paper Trays: 2; | |
| Media Types Supported: Paper (plain, heavy, extra heavy, glossy, light, recycle, tough), envelopes, labels, glossy film, cardstock, transparencies; | |
| Media Weight Supported: 100-sheet multipurpose Tray 1: 16 to 80 lb, 550-sheet input Tray 2: 16 to 68 lb, Optional 1×550 and 2×550 tray and stand: 16 to 68 lb, Optional 2700-sheet HCI paper tray and stand: 16 to 68 lb; | |
| Media Sizes Supported: 100-sheet multipurpose Tray 1: Statement, 3 x 5 index card, 4 x 6 index card, 5 x 7 index card, 5 x 8 index card, Letter, Letter-R, Legal, Executive, 11 x 17 in; 8.5 x 13, 12 x 18, Envelopes: #9, #10, Monarch; 550-sheet input Tray 2: Letter, Letter-R, Legal, Executive, 8.5 x 13, 11 x 17 in; Optional 1×550 and 2×550 tray and stand: Letter, Letter-R, Legal, Executive, 8.5 x 13, 11 x 17 in, 12 x 18; Optional 2700-sheet HCI paper tray and stand: Letter; | |
| Media Sizes Custom: 100 -sheet multipurpose Tray 1: 2.5 x 5 to 12.6 x 18 in; 550-sheet input Tray 2: 5.8 x 5.8 to 11.7 x 17 in; Optional 1×550 and 2×550 tray and stand: 5.8 x 5.8 to 12.6 x 18 in; Optional 2700-sheet HCI paper tray and stand: 11 x 8.27 to 11.7 x 8.5 in | |
| Printer Dimensions | W x D x H: 21.9 x 23.2 x 15.7 in; |
| Maximum: 41.4 x 39.1 x 17.4 in | |
| Printer Weight | 99.4 lb |
| What’s In The Box | HP Color LaserJet Managed E75245dn printer; Four preinstalled HP LaserJet toner cartridges; Guide (Getting started Guide); Power cord |
| Replacement Cartridges | W9020MC HP Black Managed LaserJet Toner Cartridge (~37,000 pages); W9021MC HP Cyan Managed LaserJet Toner Cartridge (~35,000 pages); W9022MC HP Magenta Managed LaserJet Toner Cartridge (~35,000 pages); W9023MC HP Yellow Managed LaserJet Toner Cartridge (~35,000 pages); W9018MC HP Managed LaserJet Imaging Drum (~75,000 pages, universal for all 4 colors) |
| Warranty Features | One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Contact your Contractual Vendor or go to hp.com/support to learn about HP award-winning service and support options in your region. (wty code 4G; wty ID A001) |
| Energy Efficiency Compliance | EPEAT® Silver; CECP; ENERGY STAR® qualified |
| Control Panel | 2.7 in (6.86 cm) QVGA LCD (color graphics) rotating (adjustable angle) display with 24-key pad |
| Display Description | 2.7 in (6.86 cm) QVGA LCD (color graphics) rotating (adjustable angle) display with 24-key pad |
| Software Included | No software solutions are included in the Box, only on http://hp.com, http://123.hp.com |
| Fonts And Typefaces | 105 internal TrueType fonts scalable in HP PCL, 92 internal scalable fonts in HP Postscript level 3 emulation (Euro symbol built-in); 1 internal Unicode Fonts (Andale Mono WorldType); 2 Internal Windows Vista 8 Fonts (Calibri, Cambria); additional font solutions available via third-party flash memory cards; HP LaserJet Fonts and IPDS Emulation available at hp.com/go/laserjetfonts |
| Compatible Operating Systems | Windows Client OS (32/64 bit), Windows 10, Windows 8.1, Windows 8 Basic, Windows 8 Pro, Windows 8 Enterprise, Windows 8 Enterprise N, Windows 7 Starter, Windows Edition SP1, UPD Windows 7 Ultimate, Mobile OS, iOS, Android, Mac, Apple® macOS Sierra v10.12, Apple® macOS High Sierra v10.13, Apple® macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) – User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see www.hp.com/go/upd |
| Compatible Network Operating Systems | Windows Server 2008 R2 64-bit, Windows Server 2008 R2 64-bit (SP1), Windows Server 2012 64-bit, Windows Server 2012 R2 64-bit, Windows Server 2016 64-bit, Failover Cluster 2008 R2, Failover Cluster 2012 R2, Terminal server 2008 R2, Remote Desktop server 2012 R2, Citrix Server 6.5, Citrix XenApp & XenDesktop 7.6, Novell iPrint server, Citrix Ready Kit Certification – Up to Citrix Server 7.18 for more information see http://citrixready.citrix.com, Linux- For more information see http://developers.hp.com/hp-linux-imaging-and-printing, Unix- For more information see http://hp.com/go/unixmodelscripts, UPD PCL6 / PS Printer Drivers, Supported for Compatible Network Operating systems please see http://hp.com/go/upd |
| Minimum System Requirements | PC: 2 GB available hard disk space, Internet connection, USB port, Internet browser. For additional OS hardware requirements see microsoft.com; |
| MAC: 2 GB available hard drive space, Internet connection or USB port, OS hardware requirements see apple.com | |
| Power | Power Supply Type: Built-in 115V or 220V Power Supply; |
| Power Requirements: Input voltage: 100 V to 127 V nominal (+/-10%), 50 – 60 Hz nominal (+/-3Hz), 12 A; Input voltage: 220 V to 240 V nominal (+/-10%), 50 – 60 Hz nominal (+/- 3 Hz), 6 A; | |
| Power Consumption: 850 watts (max. printing), 820 watts (typical printing) 46 watts (Ready), 0.6 watts (Sleep), 0.6 watts (HP Auto-Off/Auto On), 0.08 watts (Auto-Off), 0.08 watts (Off); | |
| Typical Electricity Consumption (TEC) number: 2.11 kWh/Week (BA), 1.89 kWh/Week (ES) | |
| Acoustics | Acoustic Power Emissions: 6.7 B(A); |
| Acoustic Pressure Emissions: 51 dB(A) | |
| Operating Environment | Operating Temperature Range: 50 to 90.5°F; |
| Recommended Operating Temperature: 59 to 80.6°F; | |
| Storage Temperature: -4 to 104°F; | |
| Operating Humidity Range: 10 to 80% RH; | |
| Recommended Humidity Operating Range: 30 to 70% RH | |
| Security Management | Management security: SNMPv3, SSL/TLS, WPA2-Enterprise, 802.1X authentication (EAP- PEAP, EAP-TLS), IPP over TLS, IPsec/Firewall with Certificate, Pre-Shared Key Authentication, and Kerberos Authentication; Support for WJA-10 IPsec Configuration using IPsec Plug-in |
