Specifications – Canon imageRUNNER ADVANCE DX C5840i

For more information on the Canon imageRUNNER ADVANCE DX C5840i, view the brochure.

MAIN UNIT
TYPE	Color Laser Multifunctional
CORE FUNCTIONS	Standard: Print, Copy, Scan, Send, Store
CORE FUNCTIONS	Optional: Fax
CONTROL PANEL	10.1″ TFT LCD WSVGA Color Flat-panel
MEMORY	5.0 GB RAM
SOLID STATE DRIVE	Standard: (SSD) 256 GB
SOLID STATE DRIVE	Optional: (SSD) 256 GB, 1 TB
INTERFACE CONNECTION	Network: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
	Optional: NFC, Bluetooth Low Energy
	Others
	Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
	Optional: Copy Control Interface
PAPER CAPACITY (LETTER, 20 LB. BOND)	Standard: 1,200 Sheets
PAPER CAPACITY (LETTER, 20 LB. BOND)	Maximum: 6,350 Sheets
PAPER SOURCES (LETTER, 20 LB. BOND)	Standard:Dual 550-sheet Paper Cassettes, 100-sheet Stack Bypass
PAPER SOURCES (LETTER, 20 LB. BOND)	Optional: Dual 550-Sheet Paper Cassettes (Cassette Feeding Unit-AM1), 2,450-Sheet High Capacity Paper Cassette (High Capacity Cassette Feeding Unit-C1), 2,700-Sheet Paper Deck (Paper Deck Unit-F1)
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)	Standard: 250 Sheets
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)	Maximum: 3,450 Sheets (with Staple Finisher-AB1 or Booklet Finisher-AB1 and 3rd Copy Tray Kit-A1)
FINISHING CAPABILITIES	Standard:Collate, Group
FINISHING CAPABILITIES	With Options:Collate, Group, Offset, Staple, Saddle-Stitch, Hole Punch, Eco Staple, Staple On Demand
SUPPORTED MEDIA TYPES	Multi-Purpose Tray:Thin, Plain, Recycled, Color, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope
SUPPORTED MEDIA TYPES	Paper Cassettes:Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope
SUPPORTED MEDIA SIZES	Upper Cassette:Letter, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8″ x 5-7/8″ to 11-3/4″ x 8-1/2″)
	Lower Cassette:12″ x 18″, 11″ x 17″, Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8″ x 5-7/8″ to 12″ x 18″)
	Multi-Purpose Tray:12″ x 18″, 11″ x 17″, Legal, Letter, Letter-R, Executive, Statement, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Envelope Custom Size (3-7/8″ x 3-1/2″ to 12-5/8″ x 18″), Custom Size/Free Size (3-7/8″ x 5-1/2″ to 12-5/8″ x 18″)
SUPPORTED MEDIA WEIGHTS	Cassettes:14 lb. Bond to 140 lb. Index (52 to 256 g/m²)
	Stack Bypass:14 lb. Bond to 110 lb. Cover (52 to 300 g/m²)
	Duplexing: 14 lb. Bond to 140 lb. Index (52 to 256 g/m²)
PRINT/COPY SPEED (BW)	Up to 70 ppm (Letter); Up to 42 ppm (Letter-R); Up to 40 ppm (Legal); Up to 35 ppm (11″ x 17″)
WARM-UP TIME	From Power On:Approx. 6 Seconds/td>
	From Sleep Mode: Approx. 6 Seconds
	Quick Startup Mode:Approx. 4 Seconds
DIMENSIONS (W x D x H)	24-3/8″ x 28-1/2″ x 36-7/8″ (620 x 722 x 937 mm)
INSTALLATION SPACE (W x D x H)	Basic: 44-7/8″ x 45-3/4″ (1,138 x 1,162 mm) (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)
INSTALLATION SPACE (W x D x H)	Fully Configured: 73-1/2″ x 45-3/4″ (1,866 x 1,162 mm ) (Staple Finisher-AB1 or Booklet Finisher-AB1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)
WEIGHT	Approx. 200.6 lb. (91 kg)

PRINT SPECIFICATIONS
PRINT RESOLUTION (DPI)	1200 x 1200
STANDARD PAGE DESCRIPTION LANGUAGES	UFR II, PCL6, Adobe PS 3
SUPPORTED FILES	PDF, TIFF, JPEG, EPS,XPS
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES	A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, and uniFLOW Online) are available for the imageRUNNER ADVANCE DX 6860i to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.
FONTS	PCL:93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),Barcode Fonts
FONTS	PS:136 Roman
OPERATING SYSTEM	UFRII/PS: Windows® 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012R2/Server2016/Server2019, Mac OS X (10.10 or later)
	PCL: Windows® 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019
	PPD: Windows^®7/8.1/10, Mac OS X(10.9 or later)

COPY SPECIFICATIONS
FIRST-COPY-OUT-TIME	As fast as 4.1 seconds (BW)/ 6.1 seconds (Color)
COPY RESOLUTION (dpi)	600 x 600
MULTIPLE COPIES	Up to 999
MAGNIFICATION	25%-400% (1% Increments)
PRESET REDUCTION / ENLARGEMENT	25%, 50%, 64%, 73%, 78%, 100% (1:1), 121%, 129%, 200%, 400%

SCAN SPECIFICATIONS
TYPE	Single-Pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY	Up to 200 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES	11″ x 17″, Legal, Letter, Letter-R, Statement, Statement-R, Custom Size: 2-3/4″ x 5-1/2″ to 12″ x 17″
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS	Single-Sided Scanning:13.3 lb. Bond to 80 lb. Cover (50 to 220 gsm) (BW, CL)
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS	Double-Sided Scanning:13.3 lb. Bond to 80 lb. Cover (50 to 220 gsm) (BW, CL)
PLATEN ACCEPTABLE ORIGINALS	Sheet, Book, 3-Dimensional Objects
PULL SCAN	Color Network ScanGear2 for both Twain and WIA Supported OS: Windows^®7/8.1/10/Server 2008/ Server 2008 R2/Server 2012/ Server 2012 R2/Server 2016
SCAN RESOLUTION (dpi)	Scan for Copy:600 x 600
	Scan for Send:(Push) 600 x 600 (SMB/FTP/WebDAV/ IFAX), (Pull) 600 x 600
	Scan for Fax:600 x 600
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES	A range of solutions is available to provide scanning to compatible mobile devices and certain cloud-based services depending on your requirements.
SCAN SPEED (LETTER)	Single-sided Scanning:135/135 (300 dpi), 80/80 (600 dpi),
SCAN SPEED (LETTER)	Double-sided Scanning:270/270 (300 dpi), 160/90 (600 dpi)

SEND SPECIFICATIONS
DESTINATION	Standard:E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mailbox
DESTINATION	Optional:Super G3 FAX, IP Fax
ADDRESS BOOK	LDAP (2,000)/Local (1,600)/Speed Dial (200)
SEND RESOLUTION	Push: Up to 600 x 600
SEND RESOLUTION	Pull: Up to 600 x 600
COMMUICATION PROTOCOL	File: FTP(TCP/IP), SMB3.0 (TCP/IP), WebDAV
COMMUICATION PROTOCOL	Pull: SMTP, POP3
FILE FORMAT	Standard: TIFF, JPEG, PDF (Encrypted, Compact, Searchable, Apply Policy, Optimize for Web, User Signature, PDF A/1-b, Limited Color, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

FAX SPECIFICATIONS
MODEM SPEED	Super G3: 33.6 Kbps
MODEM SPEED	G3: 14.4 Kbps
COMPRESSION METHOD	MH, MR, MMR, JBIG
RESOLUTION	400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING / RECORDING SIZE	Statement-R to 11″ x 17″
FAX MEMORY	Up to 30,000 Pages (2,000 jobs)
SPEED DIALS	Max. 200
GROUP DIALS / DESTINATIONS	Max. 199 Dials
SEQUENTIAL BROADCAST	Max. 256 Addresses
MEMORY BACKUP	Yes

STORE SPECIFICATIONS
MAILBOX (NUMBER SUPPORTED)	100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, Maximum 10,000 Pages (2,000 jobs) Stored
ADVANCED BOX	Communication Protocol: SMB or WebDAV
	Supported Client PC: Windows (Windows 8.1/10) Concurrent Connections (Max.)
	SMB: 64
	WebDAV: 3
ADVANCED BOX AVAILABLE DISC SPACE	Approx. 16 GB (Standard HDD)
ADVANCED BOX AVAILABLE DISC SPACE	Approx. 480 GB (With Optional 1 TB HDD)

SECURITY SPECIFICATIONS
AUTHENTICATION AND ACCESS CONTROL	User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
DOCUMENT SECURITY	Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print11), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/ Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)
NETWORK SECURITY	TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/ Wired LAN), Disabling Unused Functions (Enabling/ Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send-Virus Concerns for E-mail Reception
DEVICE SECURITY	Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection)
DEVICE MANAGEMENT AND AUDITING	Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting

ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENT	The imageRUNNER ADVANCE DX C5840i should be operated within the following environment:
OPERATING ENVIRONMENT	Temperature: 50 to 86º F Humidity: 20 to 80% RH (Relative Humidity)
POWER REQUIREMENTS	110-127V, 60Hz, 12A
POWER CONSUMPTION	Maximum:Approx. 1,800 W
	Standby:Approx. 56.1 W
	Sleep Mode:Approx. 0.8 W
	Typical Electricity Consumption (TEC) Rating: 0.47 kWh
STANDARDSENERGY STAR^®Certified
STANDARDSENERGY STAR^®Certified	Rated EPEAT^®Gold

CONSUMABLES
TONER	GPR-61 Toner BK/C/M/Y
TONER	GPR-61L Toner C/M/Y
TONER YIELD (ESTIMATED @ 5% COVERAGE)	GPR-61 Toner BK:71,000 Pages
	GPR-61 Toner C/M/Y:60,000 Pages
	GPR-61L Toner C/M/Y:26,000 Pages

Back to products

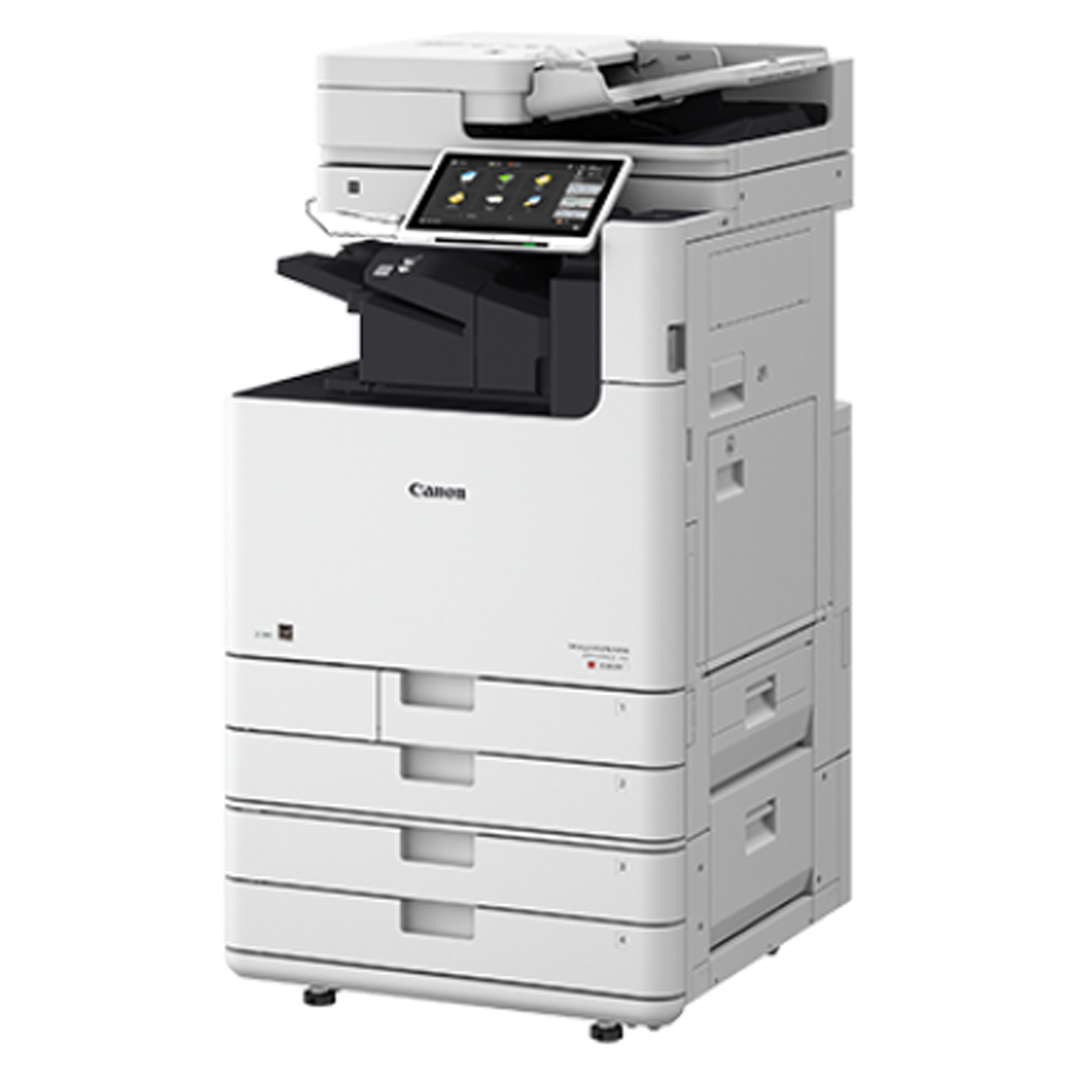

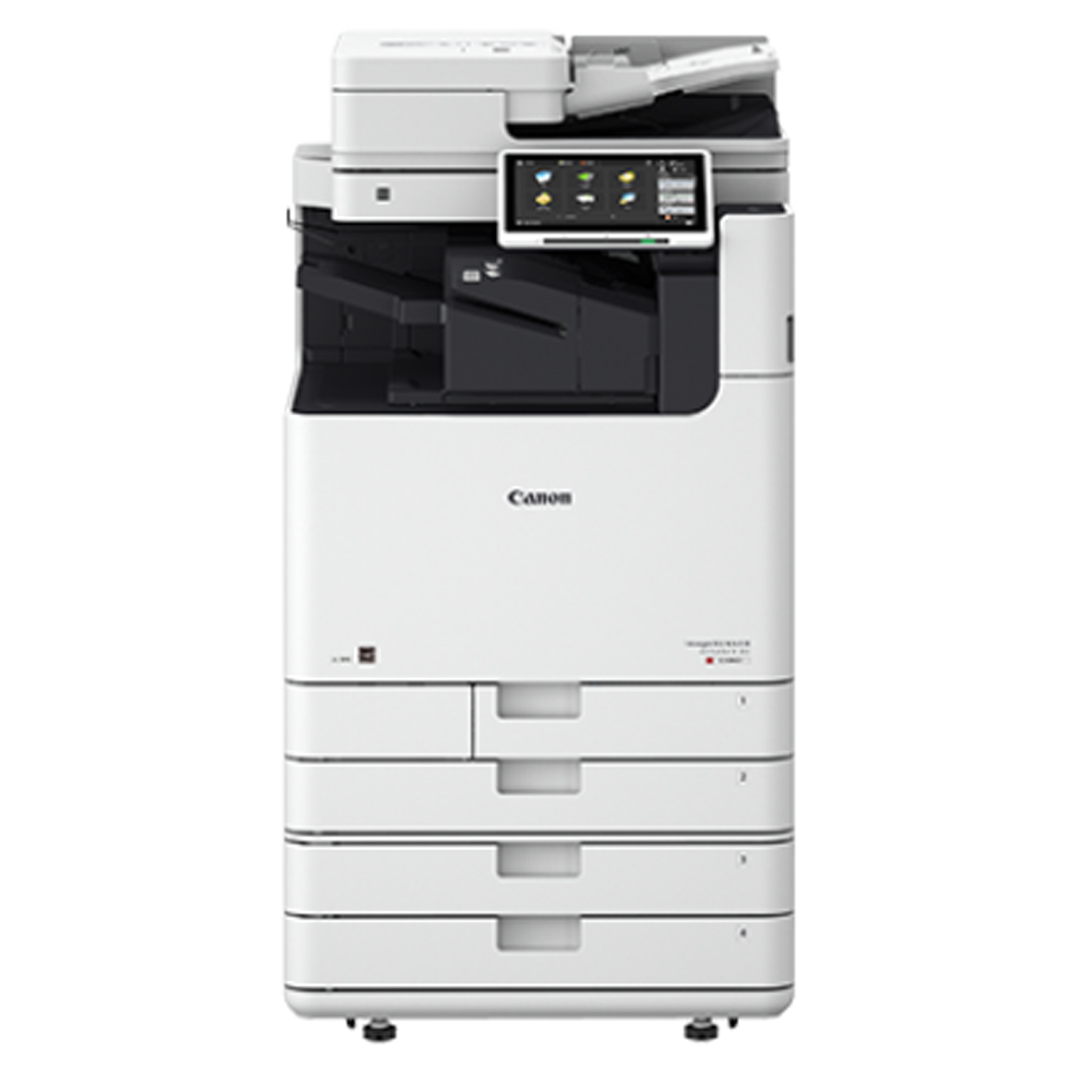

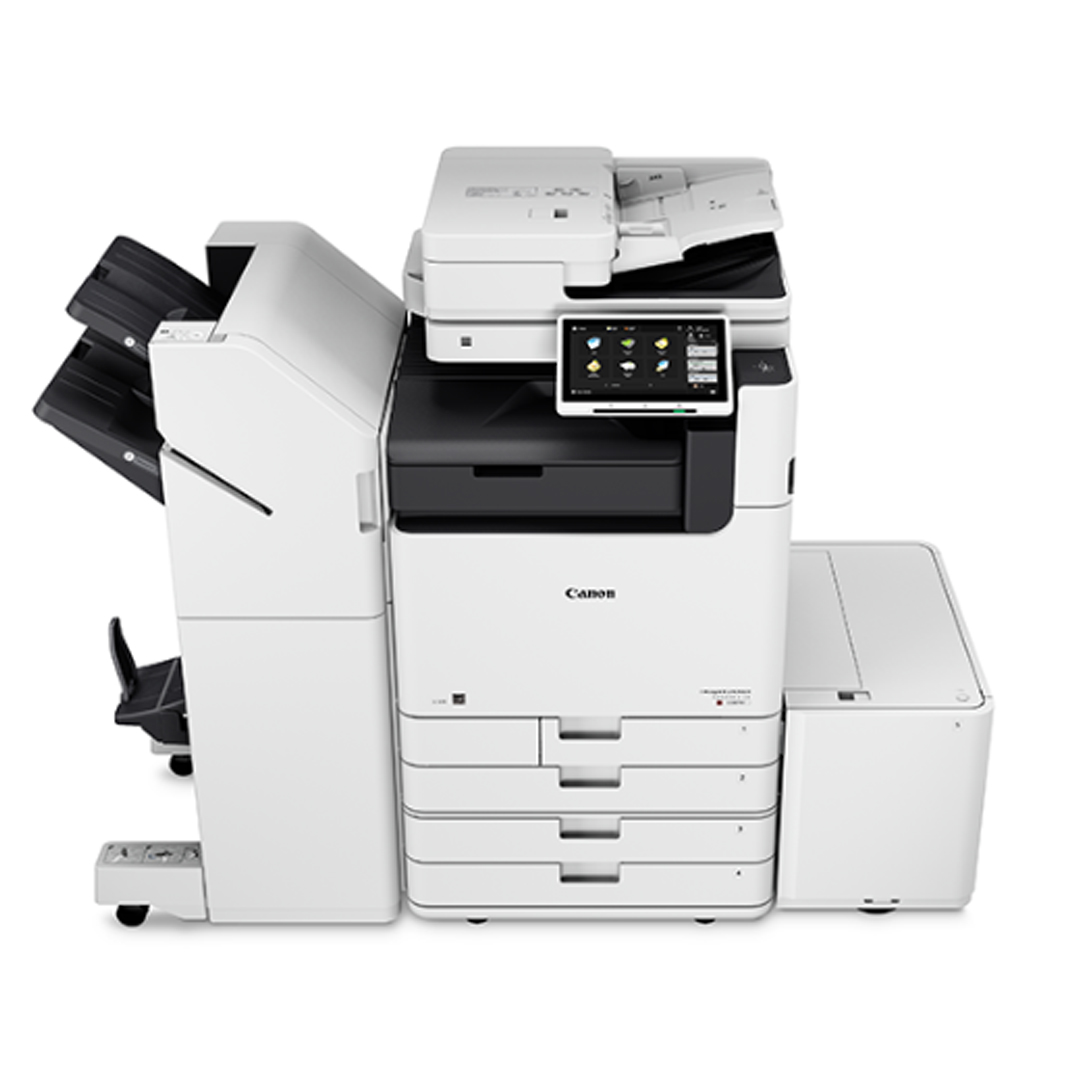

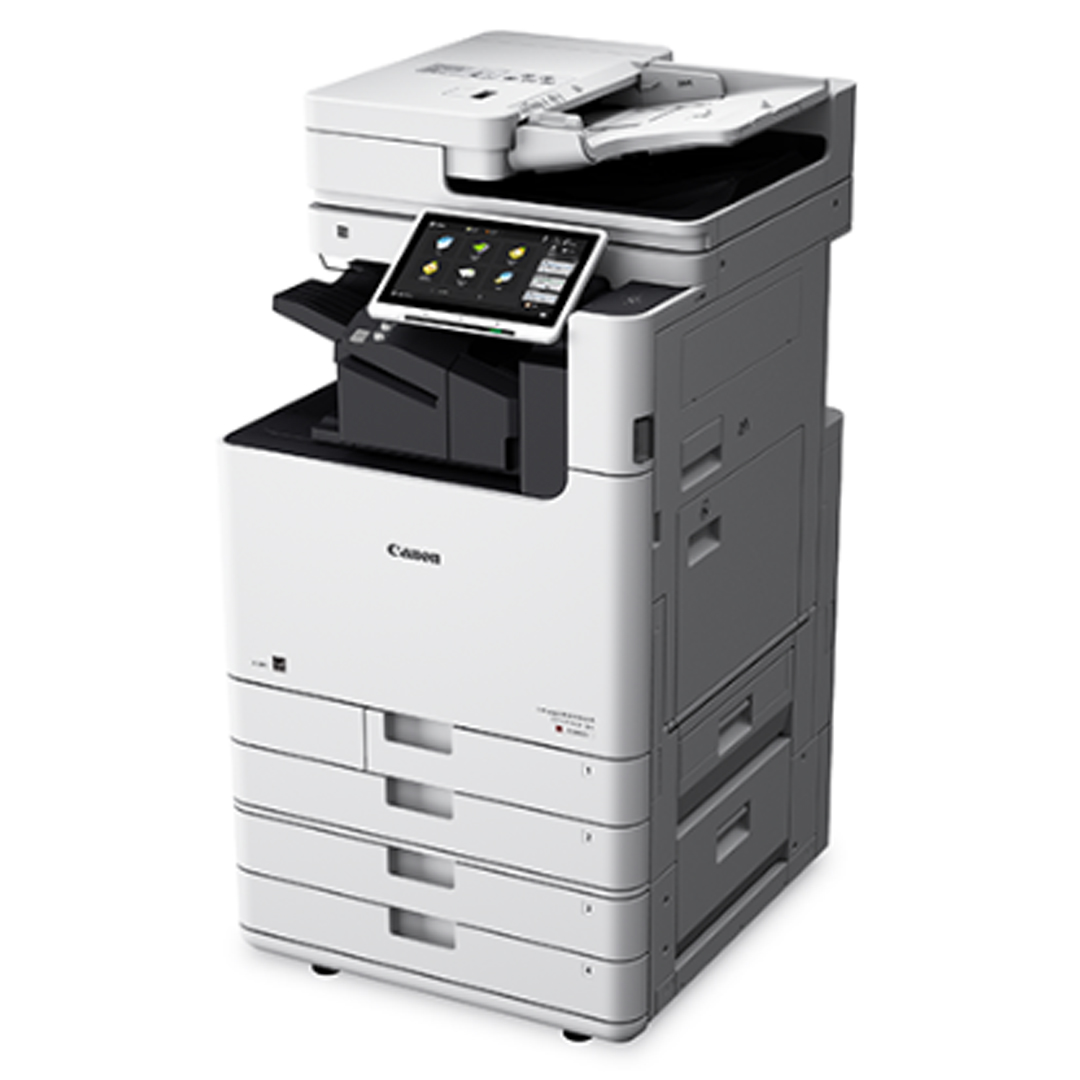

Canon imageRUNNER ADVANCE DX C5840i
